10W AS7240 Horn Speaker - Amber Tech
Products

Speakers

10W AS7240 Horn Speaker

Product Code: AS-SPHO-10W-A

Brand
ASL
RRP $169.00


Quantity In Cart: 0
Unit of Measure
EACH



Technical Specifications
Brands ASL
Speaker Type Horns and projectors

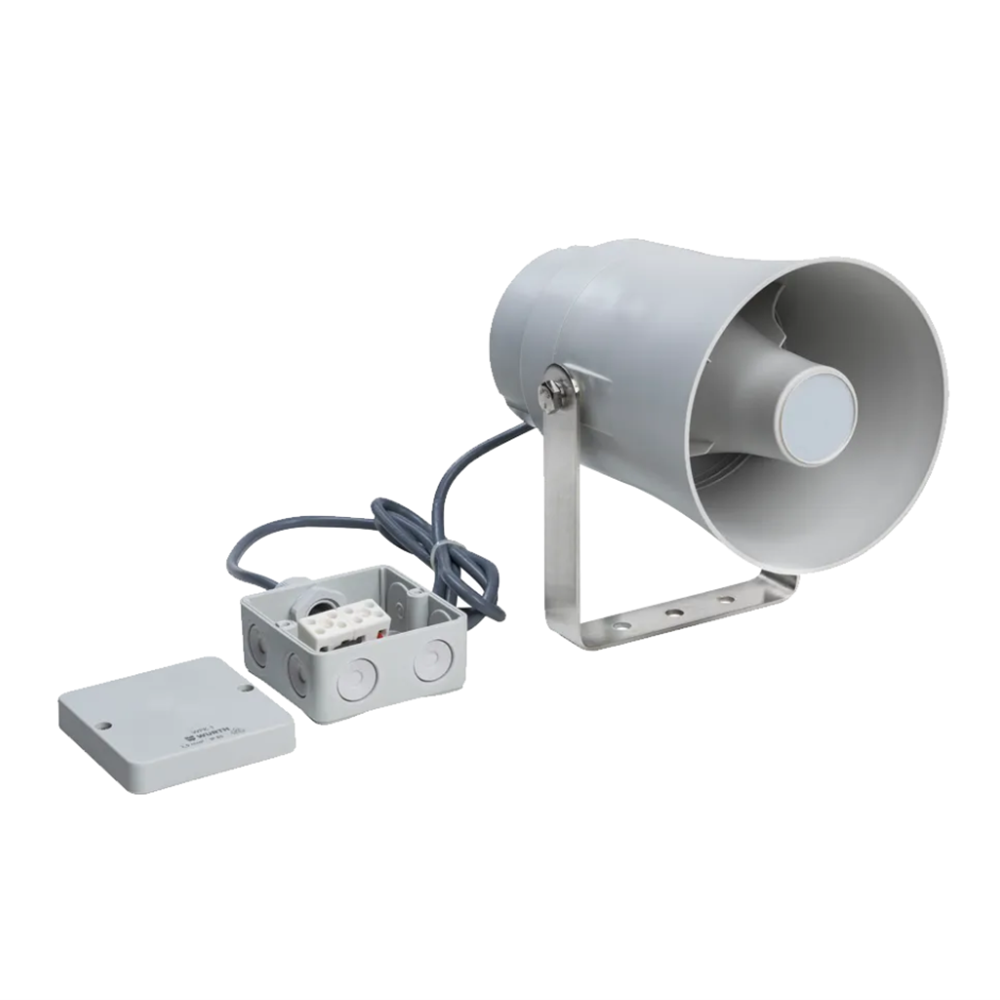

SPHO-10W-EN54 High Power Horn Loudspeaker 10W



The SPHO-10W-EN54 is a 10W 100V horn loudspeaker which gives a high sound pressure level for internal and external applications, and which is certified to EN54-24. The speaker is fitted with a 100V transformer which has four power adjustment tappings of 10W, 5W, 2.5W, and 1.25W, plus a low-impedance setting (20ohm). The power adjustment is easily accessed at the rear of the speaker.

The SPHO-10W-EN54 has a robust impact resistant ABS housing, which is sealed to the IP66 environmental standard. Thus the speaker is sealed against the ingress of dust, and is sealed against high pressure water jets for sustained weather resistance in industrial applications. In addition, the body meets the UL94 V-0 flammability standard. The speaker is coloured to match RAL7035 ‘Light Grey’.
Mounting of the speaker is provided using a stainless-steel ‘U’ bracket, which provides a number of flexible mounting options.

The 100V loudspeaker line connection is provided via a one metre two core LSZH cable, which is terminated with an IP65 ingress protection rated connection box. In order to provide increased fire protection, the speaker is also fitted with a 2-pin ceramic block and a thermal fuse. There is also a strap-on mast bracket available as an accessory, part number SPAC-MB80. This mast bracket is suitable for use with masts of up to 200mm diameter.

  • Power Tappings: 10 / 5 / 2.5 / 1.25 (20) W
  • BS 5839 Part 8: Yes
  • EN 54-24: Yes
  • 10W 100V LOUDSPEAKER
  • HIGH SOUND PRESSURE LEVEL
  • LOW DISTORTION SOUND
  • U-BRACKET MOUNTING
  • ROBUST ABS PLASTIC HOUSING
  • WEATHERPROOF TO IP66
  • UL94 V-0 COMPLIANT
