4K30Hz Quad Encoder

Product Code: WY-NHD124TX

Brand
Wyrestorm
RRP $4,449.00


Quantity In Cart:
Unit of Measure
EACH



5 Year
Technical Specifications
Brands WyreStorm
Input/output type HDMI
Product type AV over IP
Series NetworkHD
  • Details
  • Downloads
  • Where to Buy
  • Ordering

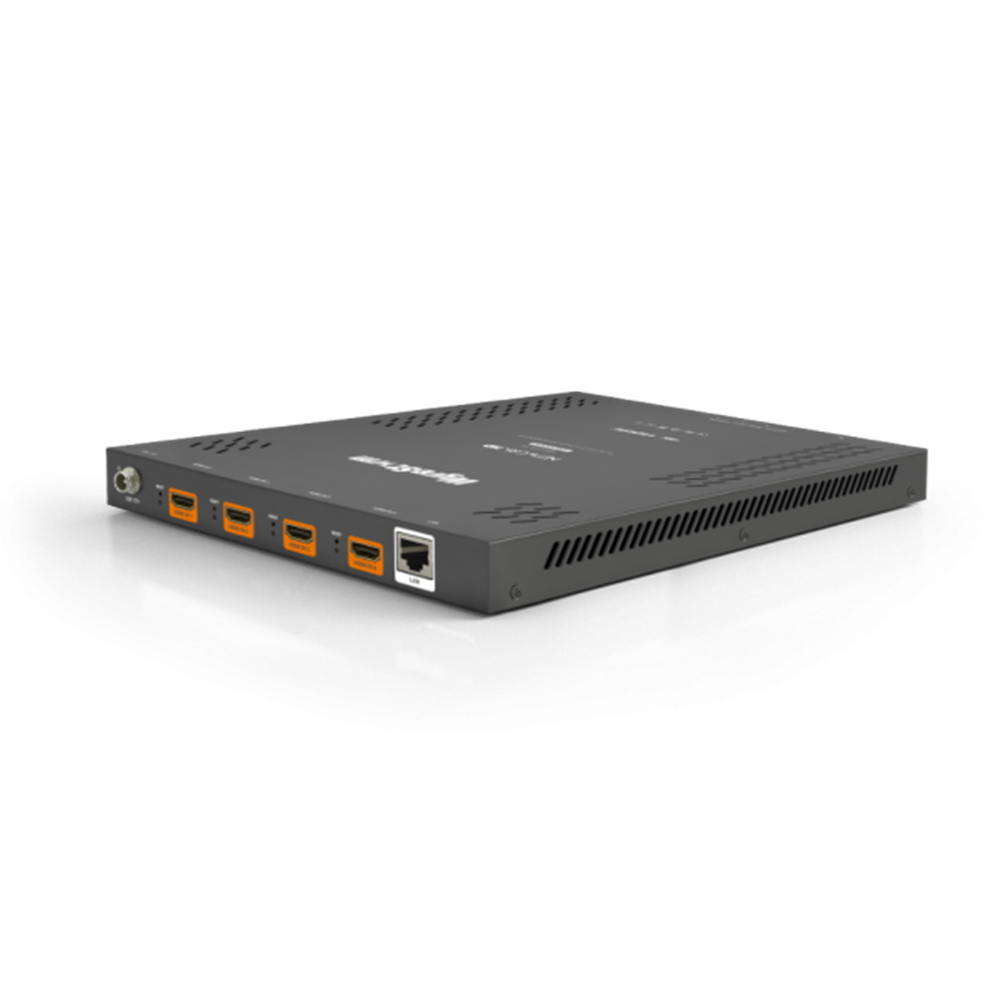

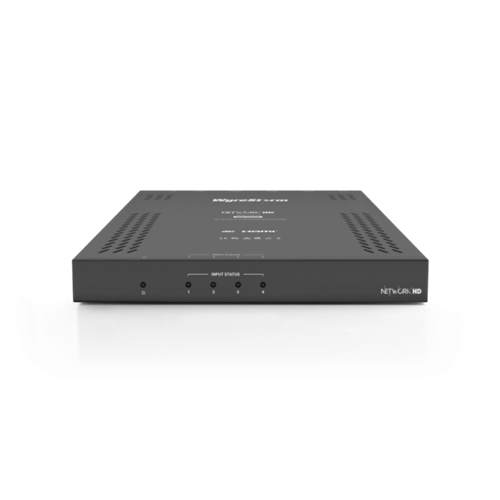

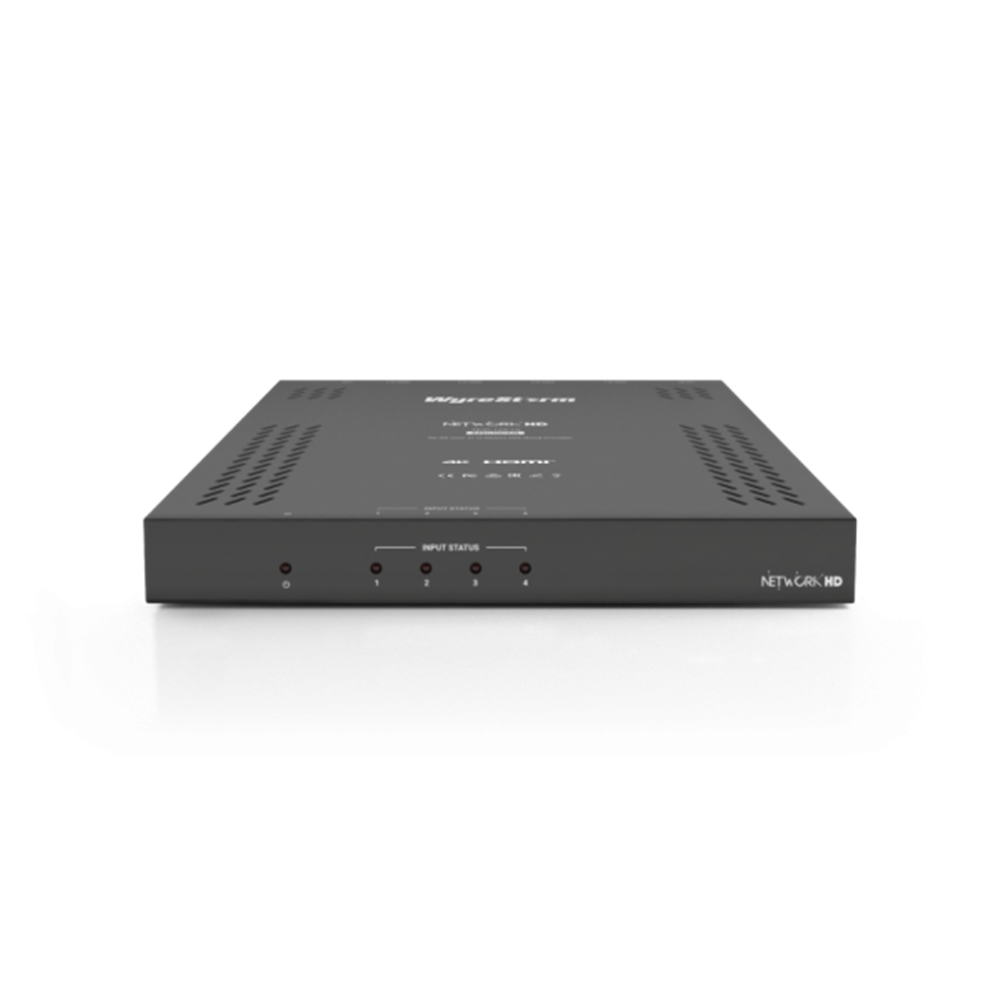

NetworkHD™ 100 Series 4K AV over IP Quad Encoder

The NHD-124-TX is a 4 input to 4 network stream device encoder compatible with the NetworkHD 100 an ultra low bandwidth AV over IP solution for distribution of point-to-point, one-to-many and many-to-many over a managed network. With its standards-based approach to video encoding, fast and simple system configuration and robust feature set, it provides the best value in networked video distribution.

The NHD-124-TX encoder is intended for use with 120 series decoders (sold separately) to provide a complete end-to-end video distribution system. When used in conjunction with the NHD-CTL-PRO system controller complete control integration is simple.

Key Features

  •  Ultra-low network bandwidth encoder for 4 simultaneous HDMI inputs
  • 4 streams over 1 Ethernet connection
  • Seamlessly integrates with NetworkHD 120 Series decoders
  • Touch™ control app for live previews with drag and drop source selection
  • Up to 100m (328ft) distance over standard Cat5e


TAILORED FOR MULTIPLE MARKETS

The NetworkHD™ 100 Series utilizes low bandwidth, infinitely scalable technology with the addition of powerful video wall support up to 16×16 for the best all-round solution for commercial AV installations. A 100 Series encoder can either be paired with a 100 Series decoder for matrix switching to individual screens or for video wall decoding, with both decoders including HDMI and analog audio breakout outputs, or an NHD-150-RX decoder for multiview monitoring.


LOW BANDWIDTH ENCODING

The NHD-124-TX can encode AV signal using low bandwidth compression technology. Using this technology provides incredibly efficient video streams.


SPACE SAVING DEVICE

Space is always a factor when building an AV over IP system, and lack of it can cause headaches for any installer. Our NHD-124-TX solves this by combining four transmitters into one solution, allowing you to have the same functionality on a 1U footprint.


4K RESOLUTION

The NHD-124-TX is now supporting 4K content that ensures compatibility with the HDMI v1.4 HDCP 2.2 video source.


AES ENCRYPTION

Security is key in today’s world. The NHD-124-TX support AES 128-bit AV encryption over the network. Data sent from an NHD-124-TX is encapsulated using advanced methods to ensure that sensitive or private data cannot be accessed by 3rd-parties.


SECURITY

Equipped with the latest security protocols including SSH, TLS and HTTPS. Data and communications from the 100 series in encrypted end-to-end.


TWO TRANSMISSION METHODS

Low bandwidth or high-quality transmission methods. Low latency transmission methods of 150ms and high-quality of 400ms.


NHD CONTROL APP COMPATIBLE

Compatible with the NetworkHD Touch Control app. Control source, matrix and video wall switching with preview streams of each Encoder.


Technical Specifications

AUDIO & VIDEO

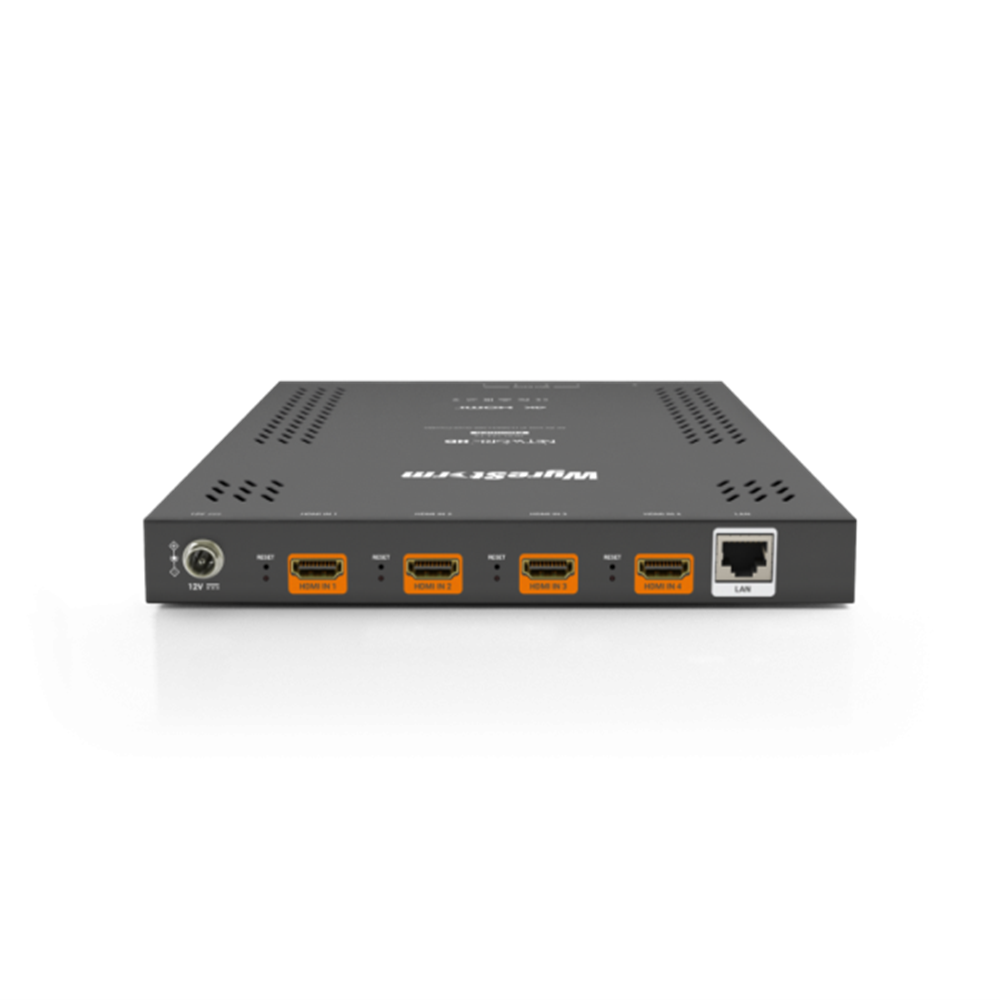

  • Inputs: 4x HDMI Type A
  • Outputs: 1x 8-pin RJ-45 female
  • End to End Latency:
    • 1080p: High Quality Mode: ~250ms Low Latency Mode: ~80ms
    • 4K: High Quality Mode: ~400ms Low Latency Mode: ~150ms
  • Audio Formats: LPCM/MPEG4 AAC stereo, 48KHz
  • Video Resolution (Max):
    • 3840x2160p @ 30Hz
    • 1920x1080p @ 60Hz
  • Maximum Pixel Clock: 297MHz

COMMUNICATION & CONTROL

  • HDMI: HDMI 1.4 | HDCP 2.2 | EDID
  • LAN: 1x 8-pin RJ-45 female | 10/100Base-T | PoE 802.1af
  • Security Protocols: AES 128 | SSH | TLS | HTTPS

POWER

  • Power Supply: 12V DC 1A | 802.3af PoE Compliant
  • Max Power Consumption: 3.6W (DC adapter)

Additional Features

  • Supports up to 4K @ 30Hz video content
  • Flexible encoding using low bandwidth technology. Encoding is configurable between a constant bitrate or variable bitrate.
  • Low bandwidth or high-quality transmission methods. Low latency ~ 150ms. High-quality ~400ms
  • Seamless video switching – no black screens or freeze frames
  • Support all SD and HD formats – including interlaced content
  • Compatible with NHD-150-RX Multiview receiver
  • Live video preview streams for use with NetworkHD Touch or a custom control UI
  • Flexible IP address settings: AutoIP/Static/DHCP
  • Batch firmware update and batch settings functions offers a massive reduction on installation time
  • Custom EDID management
  • HDCP 2.2 compliant
  • Supports AES-128 for audio/video decryption.
  • Supports HTTPS/SSH/LDAP/802.1X.
  • IEEE 802.3af PoE compliant PD

In the Box

  • 1x NHD-124-TX Encoder
  • 1x 12V DC Power Supply (EU/US/UK/AU)
  • 2x Rack Mounting Brackets
