Barix Exst MPA400 SynApps only Pwr Sup Included BAR20209317

Product Code: BX-BAR20209317PS

Brand
Barix
RRP $1,254.00


Quantity In Cart:
Unit of Measure
EACH



2 Year
Kit Components
Code
Item
Qty
BX-BAR20209317
Barix Exstreamer MPA400 SynApps only. PoE, no power supply
1.0
BX-POWER242521
24VDC 2.5A PSU-CP(2.1mm) For Barix Products BARIX
1.0
Technical Specifications
Brands Barix
Product type Streamer
  • Details
  • Downloads
  • Where to Buy
  • Ordering

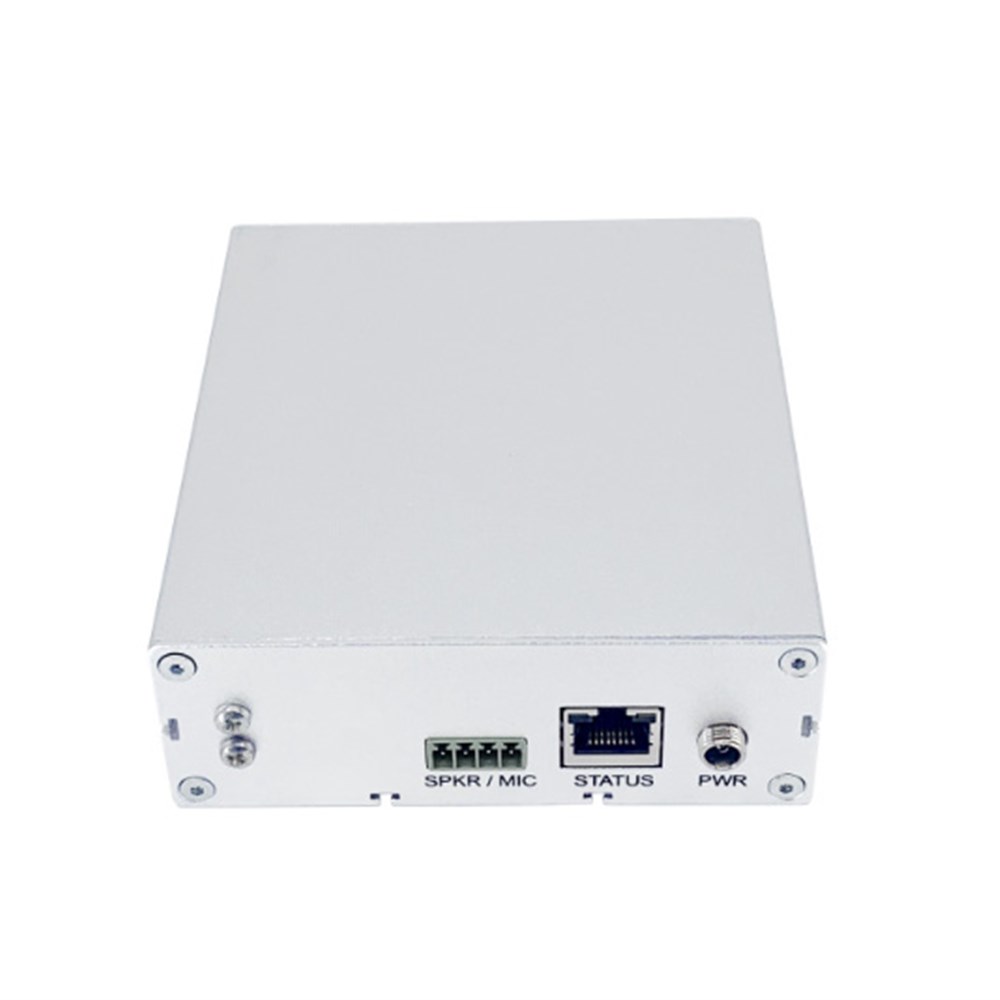

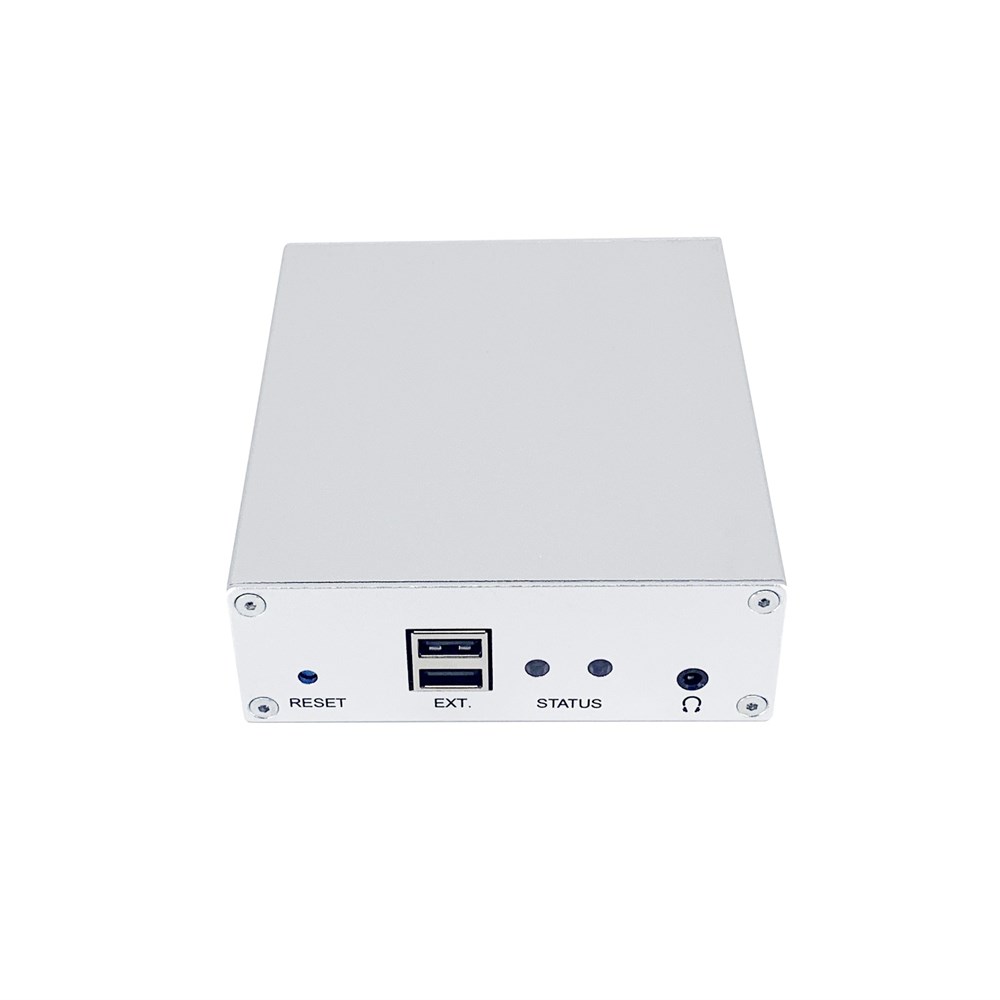

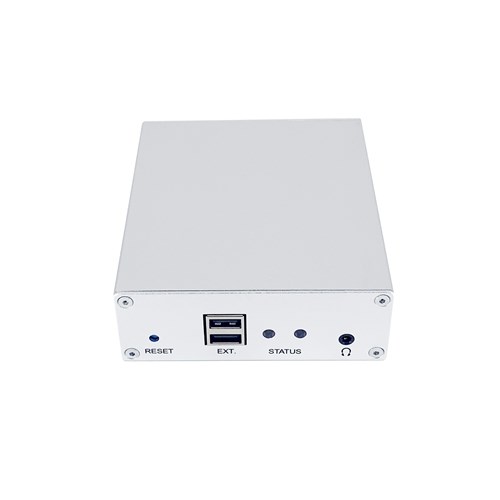

EXSTREAMER MPA400 SynApps only


IP Audio Decoder and Amplifier with up to 40W RMS @ 4Ohm Speaker Output
The Exstreamer MPA400 feeds 2 – 8 Ohm Speakers and turns them into an extensive Audio over IP system. Syn-Apps are supported. The codec supports PCM, AACplus, MP3, OPUS, G.711, G.722 that can be served over HTTP and RTP protocols. Audio files can be stored on the internal memory and their playback can be triggered via a simple UDP command. The MPA400 is a solid metal device, easily installed. All PoE standards are supported (up to 4PPoE) to feed the built-in 40W full digital class-D audio amplifier meeting different speaker requirements.If PoE is not an option, an external power supply can be deployed too. The device offers a modern and user-friendly web interface for its configuration. REST API to interface with third party applications is also available.


OPERATION SYSTEM
  • Embedded Linux based on Yocto
NETWORK INTERFACES
  • 1 x Ethernet (RJ45) Interface
  • IPv4, IPv6 capable
  • 10/100 fdx/hdx, auto negotiation
PROTOCOLS
  • TCP/IP, UDP, RTP, SRTP SIP, SIPS, HTTP, HTTPS, DHCP, mDNS/DNS-SD, NTP, DHCP, DNS
  • Singlewire Informacast compatibility – requires extra license
  • Syn-Apps Revolution compatibility
CPU / MEMORY
  • Barix IPAM400 Processor Module
  • Quad-Core ARM Cortex™ -A7
  • 256MB DDR3 SDRAM
  • 16MB SPI Flash
  • 8GB uSD-Card Flash
USER INTERFACE
  • Web interface for configuration
  • 2 x Multicolor LED Status indicators
  • Reset & Factory Defaults Button
AUDIO FORMATS
  • MP3 CBR/VBR, up to 320 kbps, 8..48 kHz sample freq.
  • AAC-HE (AAC, AAC plus, AAC plus V2)
  • PCM linear 16bit @8, 16, 22.05, 24, 32, 44.1, 48 kHz
  • G.711
  • G.722
  • Opus
  • WAV
  • OGG Vorbis
AUDIO INTERFACE
  • Speaker Output on Screw Connector
  • 2 – 8 Ohm Speaker Impedance
  • 3.5mm TRS headphone connector on the front panel
  • Microphone Input 3.3VDC Bias on Screw Conn.
POWER REQUIREMENTS
  • 24VDC, 50W maximum on 5.5×2.1mm barrel connector (positive polarity), screw locked
  • PoE: IEEE 802.3af / 802.3at / 802.3bt type 1-2
MTBF
  • > 200’000h
MEASUREMENT / MECHANICS
  • 108x38x125mm (4.25×1.5×4.92 inch)
WEIGHT
  • 350g
