BLUESOUND POWERNODE EDGE N230 - BLACK

Product Code: BS-PNODEEDGEBLK

Brand
Bluesound
RRP $1,199.00


Quantity In Cart:
Unit of Measure
EACH



2 Year
Technical Specifications
Brands BlueSound
Product type Streamer
  • Details
  • Downloads
  • Where to Buy
  • Ordering

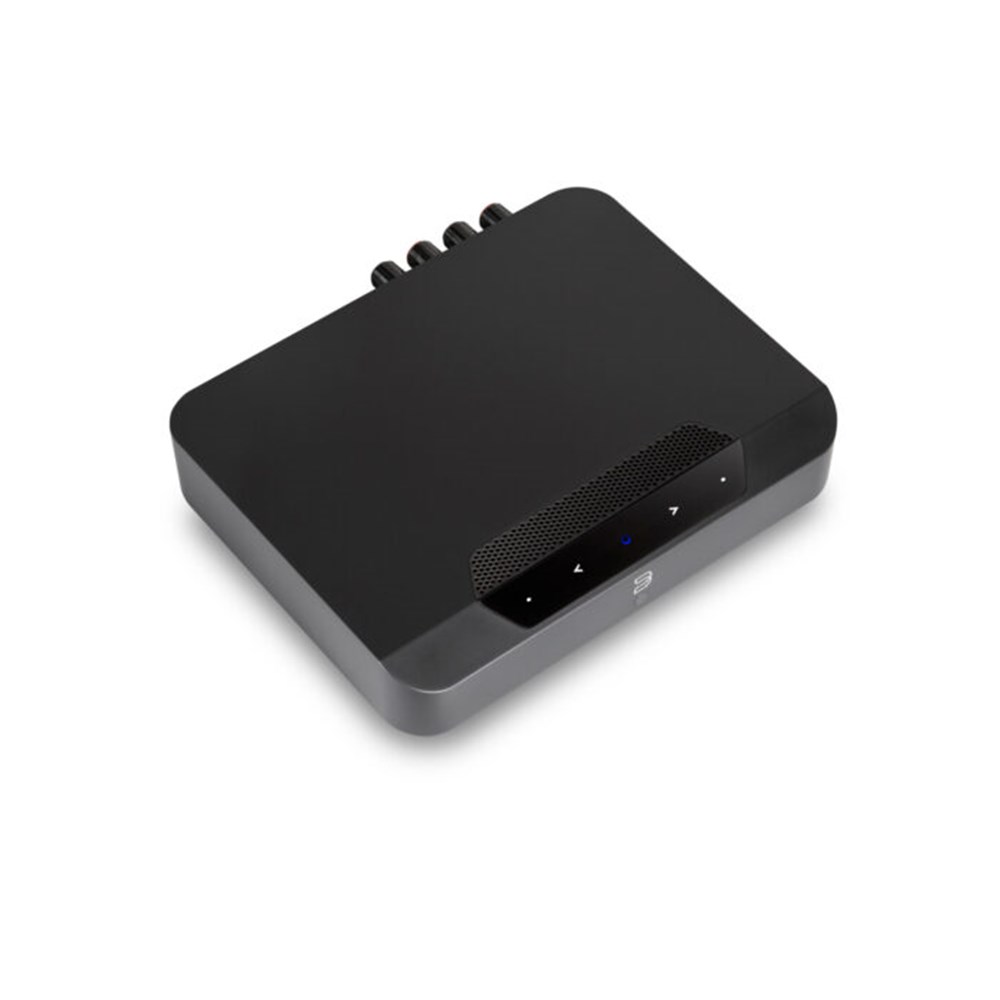

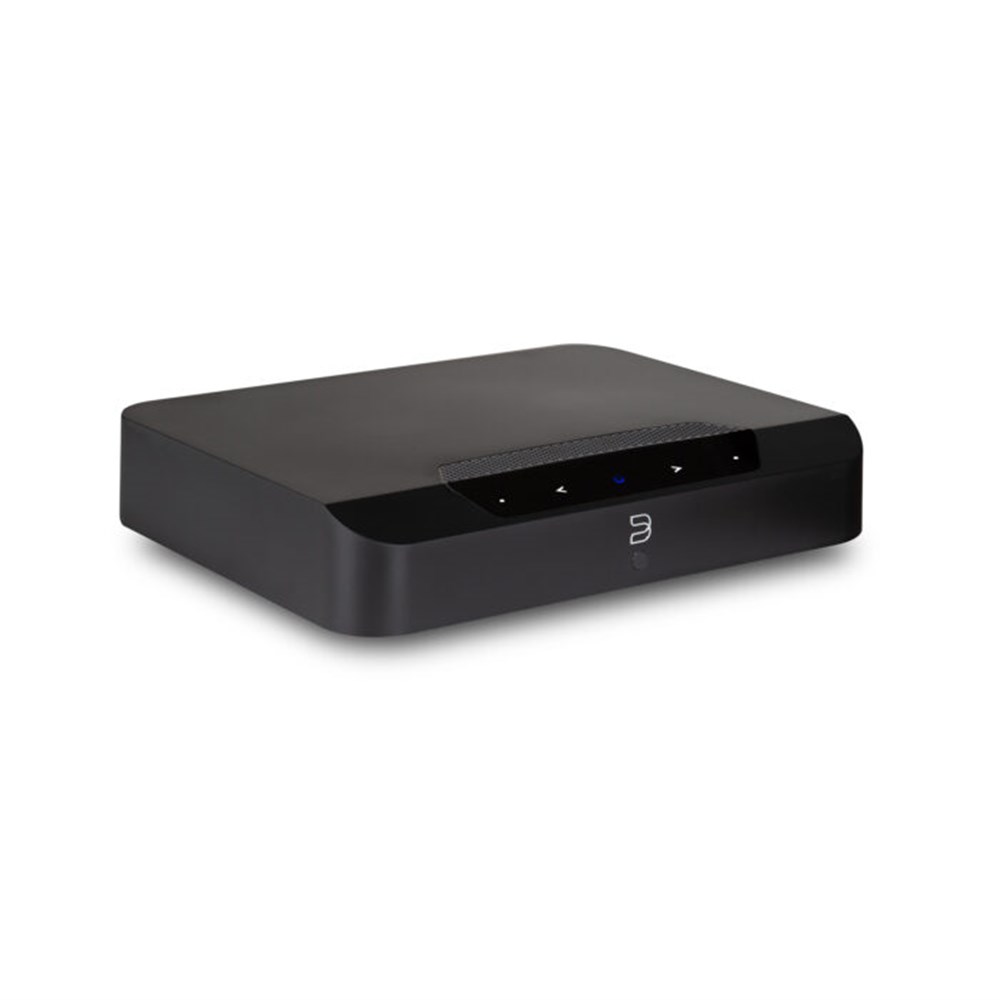

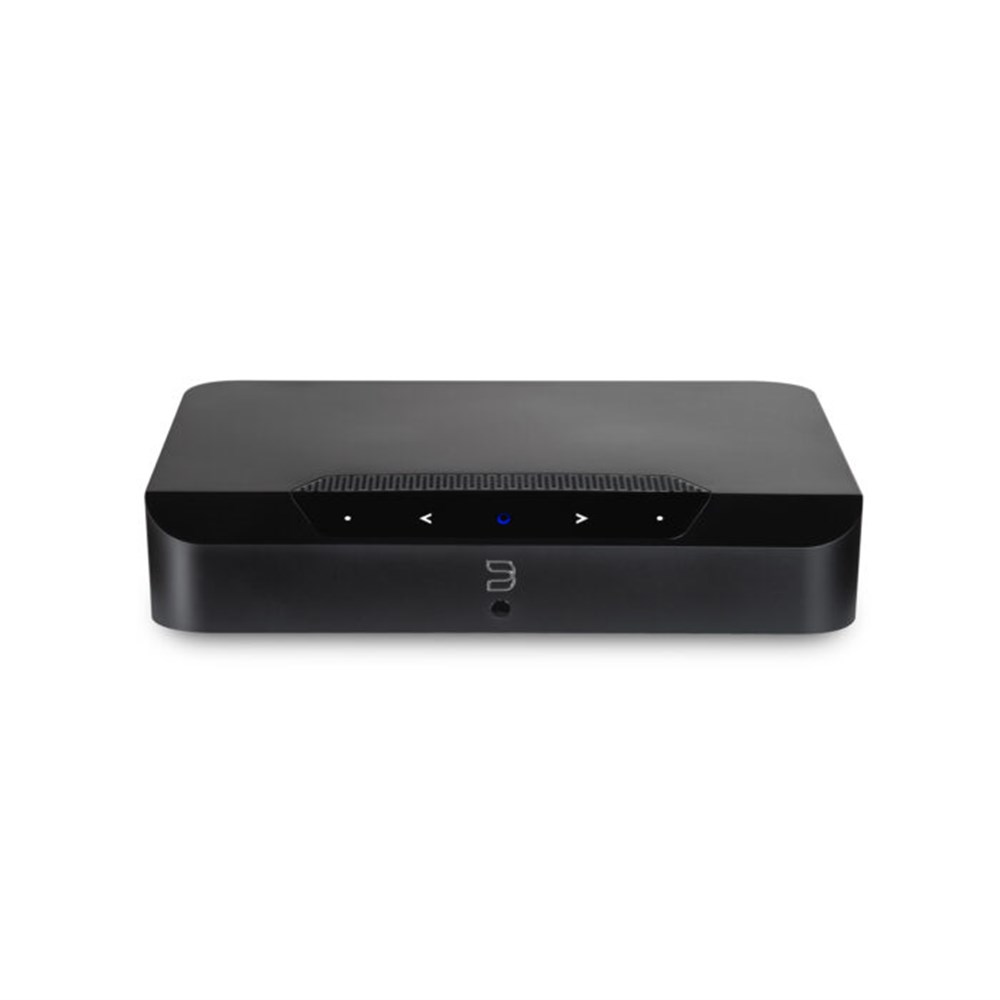

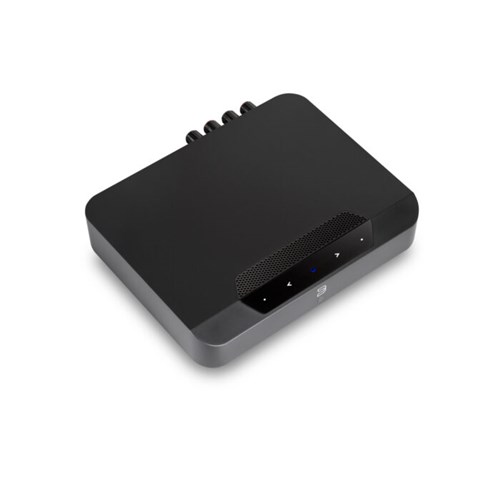

POWERNODE EDGE

Compact Wireless Music Streaming Amplifier
The POWERNODE EDGE is the perfect segue into “just add speakers” HiFi for the streaming age, combining streaming sources, control and amplification in a sleek and affordable device.

Add a little extra power with the POWERNODE EDGE, the perfect entry point into “just add speakers” HiFi for the streaming age, combining streaming sources, control, and amplification all in one place. Audiophile-grade componentry capable of up to 24 bits/192 kHz hi-res audio, and wireless multi-room capabilities with smartphone controls combine to make the POWERNODE EDGE a great ‘building block’ amplifier to start, extend or complete a hi-res streaming audio system of any size.

  • Easily power a pair of passive speakers
  • 40 Watts per channel of DirectDigital™ amplification technology handling 24 bit/192 kHz files
  • A state-of-the-art Quad-Core 1.8GHz ARM® Cortex A53 Processor
  • HDMI eARC connectivity
  • Digital optical and analog input options, subwoofer output, and Bluetooth® wireless headphone output
  • Dolby® Digital decoding
  • Dual-band Wi-Fi, Gigabit Ethernet and support for 2-way Bluetooth® aptX™ HD
  • Stream hi-res content from internet radio stations, cloud music services or your own local music players
  • Intuitive control with the BluOS Controller app

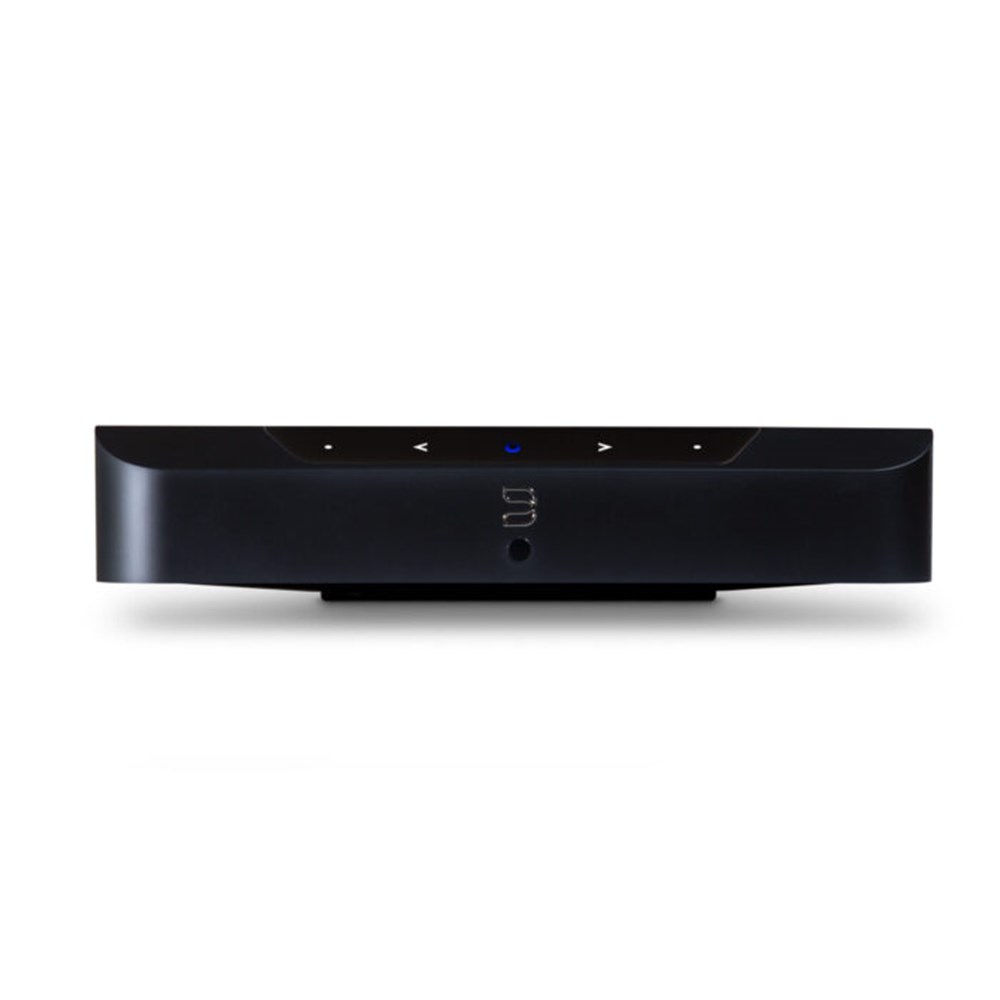

  • Elegant capacitive touch panel for quick-access controls (Play, Pause, Volume Up/Down, Previous/Next Track)
  • Includes an easy-to-install, multi-orientation wall-mounting bracket
  • IR remote learning capability – optional control using the RC1 Remote Controller
  • Connect with the BluVoice skill to enable voice assistants like Alexa, Google Assistant and Siri to control Players around the home.
  • AirPlay 2 lets you play music or podcasts from wireless stereo components throughout your house — all in sync.


JUST ADD SPEAKERS.
All you need to do is connect a pair of passive speakers to experience an incredible all-in-one HiFi solution. Easily connect wired sources, like a TV or turntable, with HDMI eARC or the combo analog/digital input. Add the PULSE SUB+ Wireless Subwoofer for a powerful but compact 2.1 stereo system or even use the POWERNODE EDGE to power the rear channels of a wireless Bluesound surround sound setup. Using the BluOS Controller App, select songs from popular streaming services like Spotify, Tidal, Qobuz, SiriusXM, from your own music library through Apple Airplay2, aptX™ HD Bluetooth®, or even a network-connected drive or USB hard drive.

COMPACT POWER
Bring your speakers to life with the powerful, punchy 2 x 40 watts DirectDigital™ amplifier in the POWERNODE EDGE, able to handle hi-res, 24 bit/192 kHz files and MQA-encoded tracks with ease. Enjoy clarity in playback of everything from densely-layered heavy metal tracks to whisper-quiet dialogue in movies and TV shows. The POWERNODE EDGE decodes Dolby® Digital content on its own and can also be used to power the rear channel speakers of a wireless home theater system.

SPACE SAVING
Your sonic oasis doesn’t have to take up all your real estate. With the POWERNODE EDGE, gone are the days of bulky, oversized amplifiers. Comparable in size to the average hardcover book, this small yet mighty HiFi system transforms any space into a high-fidelity haven.

HI-RES FOR EVERY CORNER
The sleek and compact form factor of the POWERNODE EDGE makes it ideal for secondary rooms like offices and back porches. Equip speakers in every corner of your house with power plus streaming and hide the POWERNODE EDGE away from sight in nooks like closets or behind sofas using the included multi-orientation wall-mount bracket.

INTUITIVE CONTROL
Control is always at your fingertips via the BluOS Controller app for iOS, Android, Mac, PC, or using the elegant capacitive touch panel for quick-access controls like Play, Pause, and Volume Up/Down, and Previous/Last Track. The POWERNODE EDGE connects to your home network via Wi-Fi or Ethernet. Hands-free control is possible with voice assistants like Siri, Alexa, and Google Voice. For professional smart home installers, full-feature drivers are available for Lutron, Crestron, RTI, Elan, and other popular control systems.

SPECIFICATIONS

Audio

  • Supported Audio File Formats
    MP3, AAC, WMA, WMA-L, OGG, ALAC, OPUS
  • Supported Hi-Res Audio File Formats
    FLAC, MQA, WAV, AIFF, MPEG-4 SLS
  • Supported Multi-Channel Audio Formats
    Dolby® Digital
  • Native Sampling Rates
    up to 192 kHz
  • Bit Depth
    16-24
  • Audio Controls & EQ
    BluOS Controller App
  • Signal-to-Noise Ratio
    -91dBA
  • Distortion
    THD+N, 0.008%
  • Amplification
    DirectDigital™
  • Rated Power Output
    40W x 2 (8 Ohms)
  • IHF Dynamic Power
    80W (4 Ohms) / 50W (8 Ohms)
  • Minimum Impedance
    4 Ohms


Software & Integrations

  • Operating System
    BluOS
  • App Controller Operating Systems
    iOS, Android, Windows, macOS
  • Processor
    ARM® Cortex™ -A53, Quad-Core, 1.8GHz per core
  • Supported Network File Sharing
    Server Message Block (SMB) up to 200,000 files
  • Album Art Supported
    JPG, PNG
  • Music Services & Internet Radio
    23+
  • Voice Control Integrations
    Amazon Alexa Skills; Actions on Google
  • 3rd-Party Integrations
    AirPlay 2
    Spotify Connect
    Tidal Connect
    Roon Ready
  • Control System Integrations
    Control4, Crestron, URC, RTI, ELAN, Lutron
  • BluOS Home Theater
    Yes - rear surround channels

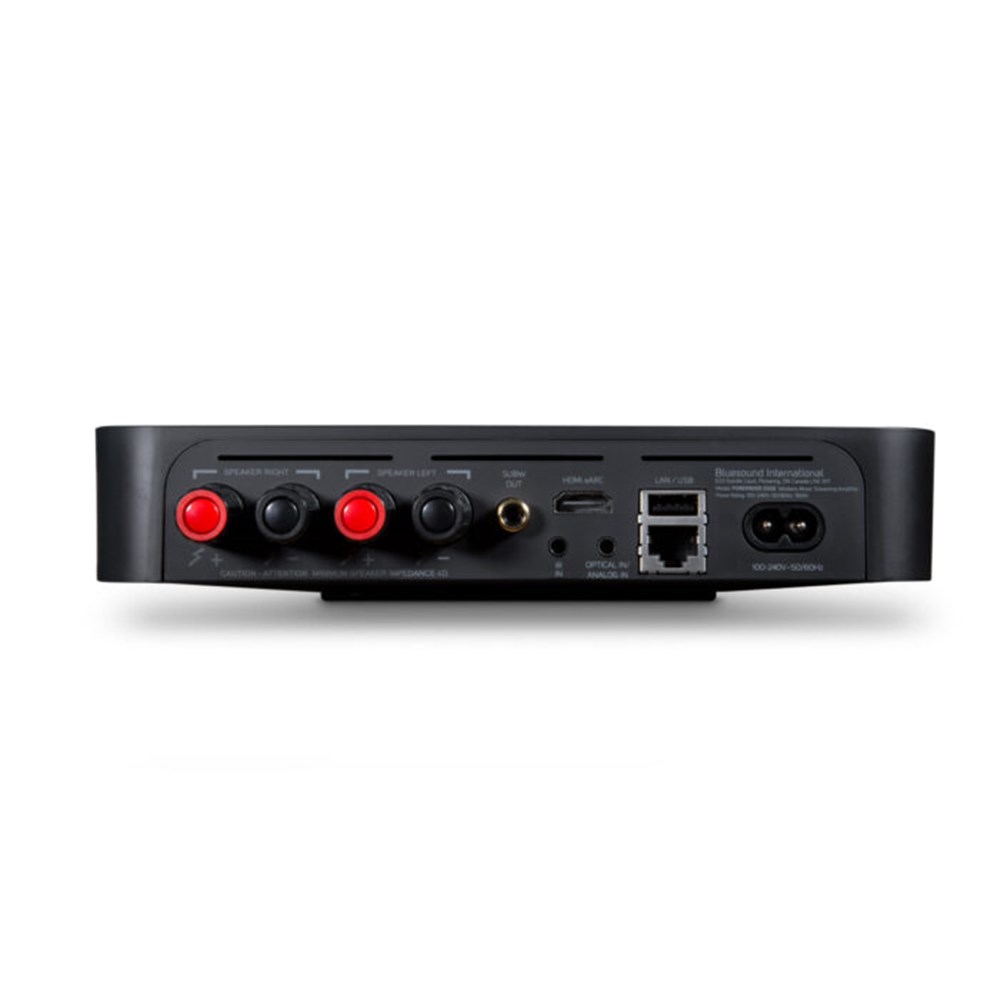

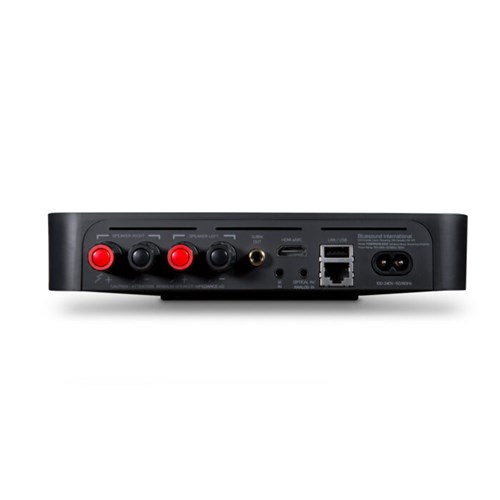

Connections

  • Power Supply
    Universal bi-pin AC cord input (100-240AC)
  • Ethernet/LAN
    Ethernet RJ45, Gigabit 1000 Mbps
  • Wi-Fi Built In
    Wi-Fi 5 (802.11ac), dual-band
  • Bluetooth Quality
    Bluetooth 5.0 aptX HD
  • Bluetooth Connectivity
    Two-Way (transmit & receive)
  • IR Optical Built In
    IR Sensor Built In - front panel with IR Remote Learning
  • IR Input
    3.5mm Jack
  • Optical/Analog Input
    Combo - Mini TOSLINK/Stereo 3.5mm
  • HDMI Input
    HDMI eARC
  • USB IN
    Type A (Fat32 Formatted)
  • Headphone Output
    Bluetooth only
  • Subwoofer Output
    RCA x 1; Wireless to PULSE SUB+
  • Speaker Terminals
    5-Way Binding Post


User Interface & Control

  • Status Indicator
    LED
  • Play/Pause Button
    Touch LED
  • Volume Control Buttons
    Touch LED
  • Previous/Next Track Buttons
    Touch LED
  • Preset Buttons
    In-App


General

  • Finish
    Black/White; Matte Satin Paint
  • Included Accessories
    120V AC Power Cord
    230V AC Power Cord
    Ethernet Cable
    TOSLINK Optical to 3.5mm Mini Adapter
    Metal Mounting Bracket
    Metal Mounting Screw
    Rubber Mount Attachment
    Safety/Warranty Guide
    Quick Setup Guide
    Max Power Consumption
    210W
  • Storage Environment
    -10°C to 50°C, 20% to 80% relative humidity
  • Operating Environment
    '0°C to 40°C
  • Product Weight
    1.37kg/3.02lbs
  • Product Dimensions
    219 x 44.5 x 193 mm
    8.6 x 1.75 x 7.6 in
  • Shipping Weight
    2.62kg/5.78lbs
  • Shipping Dimensions
    300 x 300 x 95 mm
    11.8 x 11.8 x 3.74 in
