  • Ceiling Speakerphone and Mount FONE700 Aver

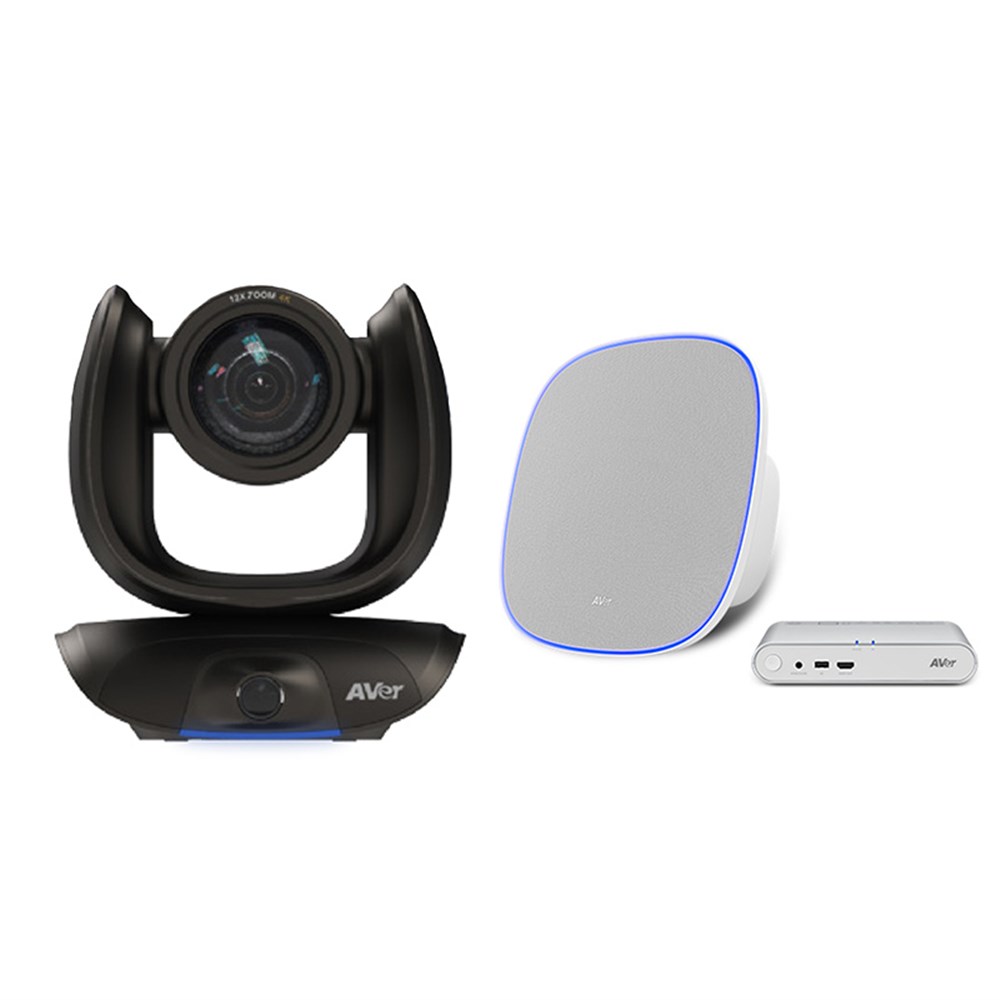

Ceiling Speakerphone and Mount FONE700 Aver

Product Code: AF-FONE700-KIT1

Brand
Aver
$2,898.00 inc GST
RRP $2,898.00

Out of Stock
Increase value Decrease value
Quantity In Cart:
Unit of Measure
EACH



3 Year
Kit Components
Code
Item
Qty
AF-FONE700
Ceiling Speakerphone System FONE700 Aver
1.0
AF-FONE700-MOUNT

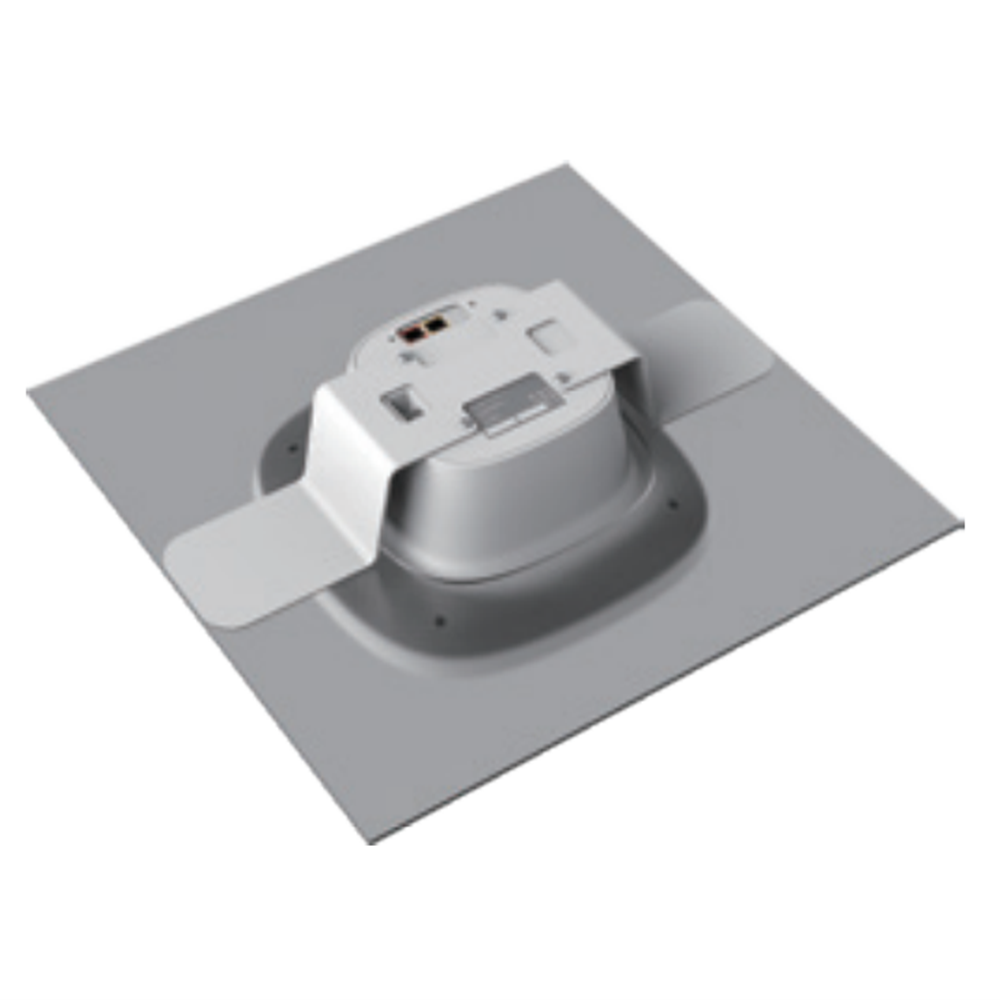

FONE700 Ceiling Mount Kit 60U6300000AD AVER
1.0
AF-CAM550
CAM550 Premium Conferencing USB PTZ Camera
1.0
Technical Specifications
Brands AVer
  • Details
  • Downloads
  • Where to Buy
  • Ordering

FONE700
Ceiling Speakerphone System for Rooms of Any Size

Take Conferencing Audio to New Heights

Ceiling Speakerphone System for Rooms of Any Size
Elevate your conference experience with the AVer FONE700, the perfect ceiling speakerphone system. With its cutting-edge technology, the FONE700 allows for seamless integration of our suite of audio-visual products, ensuring the highest-quality sound and picture to meet your conference needs. This includes connecting two cameras, a display, an external speaker, and Bluetooth devices, creating a truly unified AV hub for your conference needs.

  • Speakphone Extension Solutios
  • Ceiling-Mounted Design
  • True-to-Life Audio
  • Driver-Free Plug-n-Play
  • Integration Hub
  • Configuration Through PTZ App2
  • Intuitive Web UI

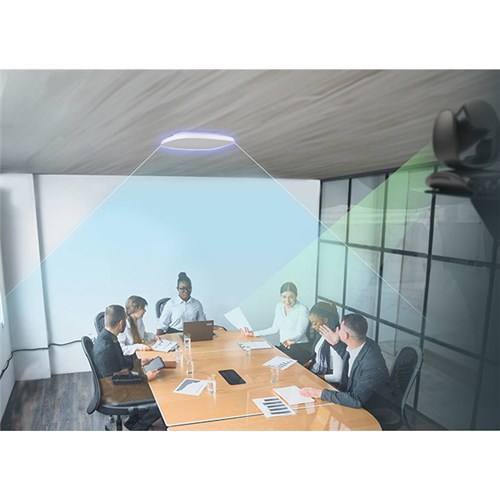

Transform Any Space into a Pro Conference Room

The FONE700 takes any room pro in seconds. It connects with just one cable, eliminating tangled wires and complex configurations. No tech expertise needed - simply plug in and go. No technical expertise is required - simply connect and experience a seamless conferencing upgrade.

Focus on the Conversation, Not the Setup
The FONE700 connects in seconds, letting you focus on the conversation, not the equipment. Intuitive controls and seamless device integration keep the meeting flowing, maximizing your efficiency and fostering effortless collaboration. Let you focus on what matters most important.

Single Cable, Diverse Configuration
The FONE700 requires just one RJ45 cable for both power and internet. It supports up to four speakerphones with a maximum range of 40 meters, enabling optimal adaptability for different-sized conference rooms.

Seamless Integration with Numerous Devices
The FONE700 connectivity hub enables seamless integration of our full suite of audio-visual products, including external speakers and cameras, as well as external devices such as monitors and Bluetooth equipment.

Specifications

FONE700 System (Hub + Speakerphone)

  • Full duplex acoustic system for optimal meeting experience
  • One cable daisy chain up to 4 speakerphones for flexible installation
  • Versatile connectivity for video conferencing integration
  • Advanced acoustic features optimized for ceiling installation, powered by AVer algorithm for uncompromised audio quality across daisy-chain setup
    • Acoustic echo cancellation (AEC)
    • Advanced noise reduction (NR)
    • Automatic gain control (AGC)
    • Double-talk detection
    • De-reverberation
    • AI noise suppression
    • Voice fencing
    • *Via future firmware update/additional setting required

FONE700 Speakerphone

  • 3 units directional + 18 units omnidirectional microphones
  • Acoustic pickup angle: 360 degrees per unit
  • Acoustic pickup range*: up to 3.5 m radius per unit
  • Speakerphone volume: adjustable, up to 99 dB SPL at 0.5 m
  • Daisy chain: up to 4 speakerphones with AVer-supplied RJ45 cable(s)
  • *Optimal performance varies depending on acoustic treatment of meeting room

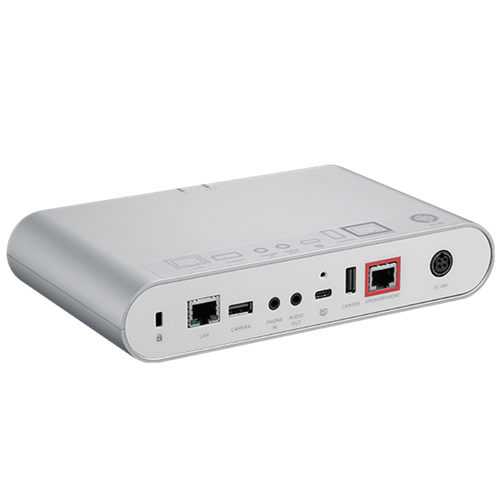

FONE700 Hub

  • Acoustic DSP Hub for speakerphone, expandable up to 3 additional units
  • One cable 48 V powered from Hub to 4 speakerphones via AVer-supplied Cat5 cable; no additional power required
  • Integration for video conferencing with versatile connections for:*
    • USB 3.0 type-C port for PC connection
    • USB 3.0 type-A ports for AVer USB cameras hub; up to 2 cameras connected
    • USB 2.0 type-A port for BT dongle connection
    • Speakerphone port for AVer proprietary daisy-chained technology
    • LAN port for remote control and AVer Virtual Audio technology
    • 4K HDMI output (for USB to display output from connected PC)
    • 3.5 mm line-out jack for external speaker or hearing aid system
    • 3.5 mm phone-in jack for phone calls or external microphone input
    • *Settings configured in PTZApp 2 or via web browser

Connection

  • USB with USB Audio Class (UAC) 1.0
  • RJ45 with AVer proprietary Virtual Audio (IP streaming)

Control

  • USB Plug and Play: Video conference software with mute/unmute, volume up/down
  • PTZApp 2 for advanced settings and AVer Virtual Audio streaming
  • Web browser for advanced remote settings

Security

  • Safety tether attachment points on speakerphone
  • Kensington slot on Hub

Power Supply

  • AC 100 V to 240 V, 50/60 Hz
  • Consumption: 48 V, 3.75 A

PTZApp 2 Value-added AVer Free Software for Meeting Collaboration

  • Auto/manual firmware upgrades
  • Acoustic settings
  • Operating status diagnosis
  • AVer proprietary Virtual Audio streaming technology

System Requirements for PTZApp 2

  • Operating system
    • Windows® 7/10/11 or later
    • Mac OS X v10.14 or later
  • Processor: 3.2 GHz Intel® Core™ i5-4460 or later
  • Memory: 4 GB RAM

Environmental Data

  • Operating temperature: 0°C to 40°C
  • Operating humidity: 20% to 80%
  • Storage temperature: -20°C to 60°C
  • Storage humidity: 20% to 80%

Dimensions

  • Package dimensions: 39.2 x 39.2 x 24 cm
  • Package weight: 7.83 kg
  • Hub: 21 x 12.5 x 4 cm/1.06 kg
  • Speakerphone: 37 x 37 x 16.5 cm/3.31 kg

Package Contents

  • FONE700 Ceiling Speakerphone
  • FONE700 Hub
  • Power adapter (48 V/3.75 A)
  • Power cable
  • RJ45 cable (10 m)
  • USB-C 2.0 cable (5 m)
  • Hub wall mount bracket with screws
  • Mount drill template
  • Quick Start Guide

Optional Accessories

  • Ceiling Speakerphone with 10 m cable supplied (for daisy chain)
  • RJ45 cable (10/20 m)
  • Ceiling mount kit
  • BT dongle
  • IR Receiver cable

Compatible Applications

  • Software supports UAC connections, e.g., Zoom, Zoom Rooms, Microsoft Teams, Microsoft Teams Rooms, Google Meet, etc

AVer CAM550


4K Dual lens PTZ Conferencing Camera

Product Specifications

Dual Camera

PTZ optical zoom lens

  • Image sensor: Sony 4K EXMOR, crystal clear in any lighting
  • Frame rates: (16:9) 4K 30fps; 1920 x 1080, 1600 x 900, 1280 x 720, 960 x 540, 848 x 480, 800 x 448, 640 x 360, at 60, 30, 15fps; (4:3) 1280 x 960, 800 x 600, 640 x 480 at 60, 30, 15fps
  • 24X Zoom*: 12X optical; 2X digital zoom
  • Wide field of view: DFOV 85°; HFOV 76°; VFOV 46°
  • Lens focal length: 3.9mm (wide) ~ 47.3mm (tele)
  • Lens F#: 1.8 (wide) ~ 2.8 (tele)
  • AE, white balance: auto, manual override via PTZApp 2
  • True WDR up to 120db: Superb backlight compensation technology for optimizing light balance in high-contrast conditions*
  • Minimum focus distance: 1.5m
  • Motorized Pan & tilt: Pan: ±170°;Tilt: +90° (up) -30° (down)
  • Preset number: 10 via IR remote, 128 via RS232

Secondary fixed lens (AI lens)

  • Image sensor: Sony 4K EXMOR
  • Frame rates and resolution set according to PTZ lens settings
  • Wide field of view: DFOV 95°; HFOV 78°; VFOV 50°

Features

  • Dynamic auto framing: secondary AI lens detects all participants, new participants trigger PTZ lens to dynamically frame all participants.
  • Preset framing tracks both preset area and speaker*
  • Simultaneous 3-way output: USB, HDMI and IP connections
  • Gesture control provides intuitive camera controls
  • HDMI Picture in Picture (PIP) function
  • Smart gallery** function offers great visibility for individual participant in the meeting room
  • Cableless access to meetings: Get rid of USB cable connections with AVer virtual USB streaming technology** (One RJ45 cable transfers IP streaming to USB.)
  • Audio tracking support: Integration with 3rd party ceiling microphone (Shure/Sennheiser) via AVer Preset Link** function

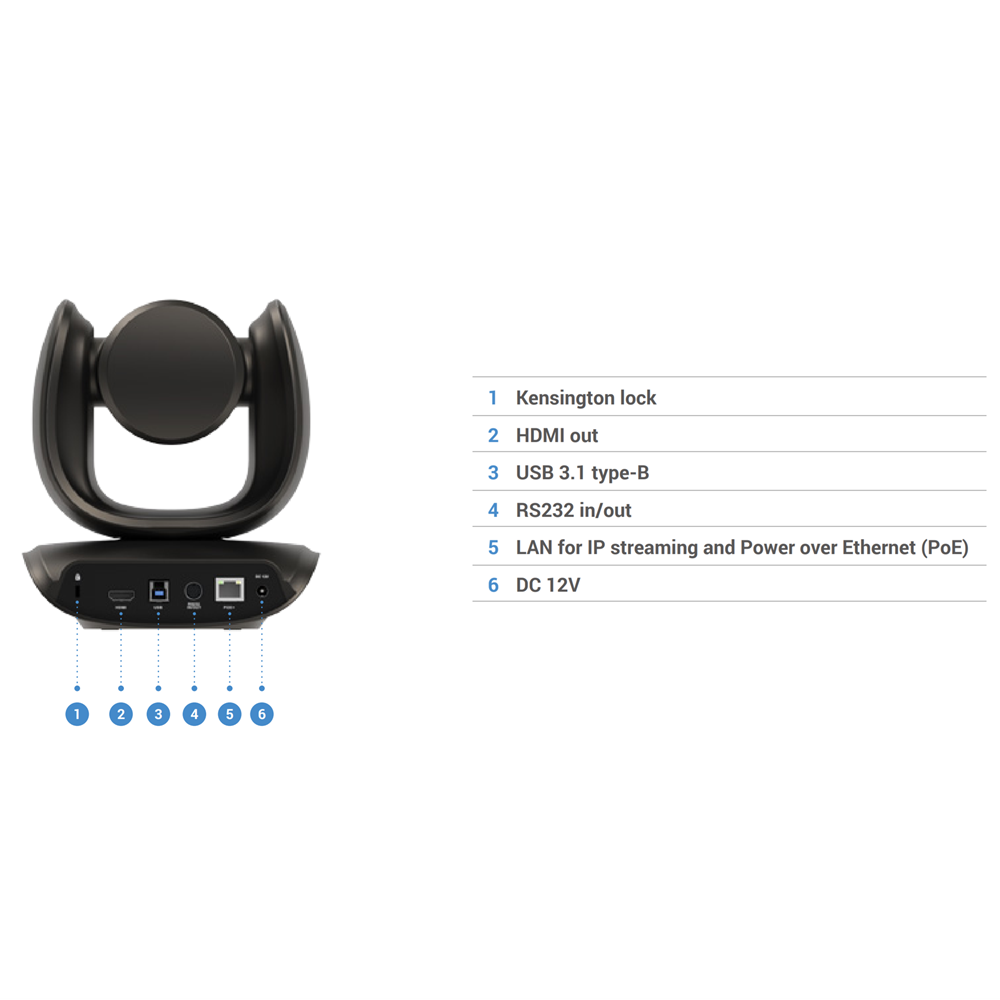

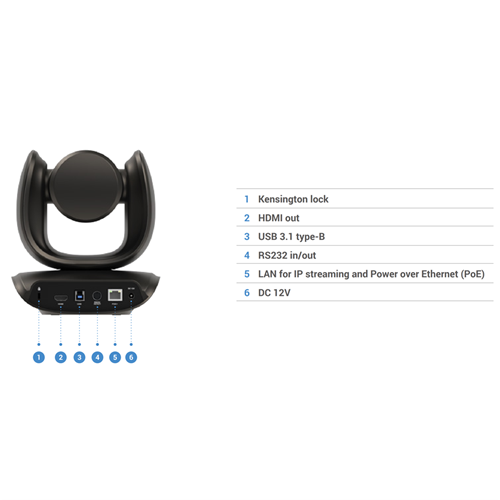

Connectivity

  • USB type-B 3.1 connector, backward compatible with USB 2.0
  • 12V/2A DC jack power adapter
  • Mini DIN9 for RS232 in & out connection (VISCA control panel and camera daisy-chain)
  • IP (RJ45)
  • HDMI
HDMI & PoE
  • HDMI 1.3: 1080p 30fps/ 60fps
  • PoE+: 802.3at


Video Format

  • YUV, YUY2, MJPEG
  • Network video compression format: H.264, H.265
  • Network protocol: RTSP, RTMP

USB

  • 3.1 Gen 1, backward compatible with USB 2.0
  • UVC 1.1 (USB video), UVC1.5*
*UVC1.5 utilizes a different platform environment and requires an extra FW upgrade. Please contact technical support for more details.

Control

  • IR remote control
  • VISCA/pelco P/pelco D via RS232 (128 preset points via VISCA command)
  • Remote side: VISCA over IP, IP (RJ45)
  • UVC plug and play
  • WebUI: Browser IP access via Chrome. (Not support IE)
  • OSD setting: HDMI out to TV monitor
  • PTZApp 2

Power Supply

  • AC 100V–240V, 50/60 Hz; Consumption: 12V, 2A
  • PoE+: 802.3 at

Free Applications for Meeting Collaboration (For Windows® and Mac® computers)

  • EZManager 2: Camera Central Management Software
    • Remotely group FW/SW upgrades, control the camera, and manage settings
  • PTZApp 2: Camera Settings Software
    • Smart gallery/Virtual USB streaming/Preset Link
    • View live video, participant metrics, and meeting-interval information
    • Enable Skype for Business far-end control
    • Upgrade firmware automatically/manually
    • Control the camera
    • Set parameters and adjust the camera image
    • View operation status, diagnose issues
  • EZLive: Broadcasting Software
    • Multi-camera real-time streaming, annotating, image capturing, and video recording

Environment Data

  • Operation temperature: 0 to 40°C
  • Operation humidity: 20% to 80%
  • Storage temperature: -20 to 60°C
  • Storage humidity: 20% to 80%

Dimensions

  • Package dimensions: 253(L)*253(W)*271(H) mm
  • Package weight: 4.8KG
  • Camera: 170.8 (L) X 190.5 (H) X 173 (D) mm/ 2.1kg
  • Remote control: 200 x 50 x 121mm/90g

Package Contents

  • CAM550 unit
  • Power adapter (10 ft/3 m)
  • USB 3.1 type-B to type-A cable (3m)
  • Remote control
  • Mini DIN9 to mini DIN8 RS232 adapter cable
  • HDMI cable (3 m)
  • Wall mount bracket and screws
  • QR code card
  • Tripod screw
  • Drill paper

Optional Accessories

  • Mini DIN8 to D-Sub9 cable
  • Ceiling mount*
  • Foldable TV mount
  • USB2.0 type-B to type-A cable (5 m)
  • USB 3.1 Extension Cable (10 m/20 m/30 m)
*CAM550 is a dual lens camera and doesn’t support upside-down installation. For ceiling mounting, please purchase the AVer ceiling mount.

Security and Mount

  • Kensington lock
  • 1/4” tripod mounting screw
  • Camera wall-mount bracket included
  • Optional foldable TV mount
  • Optional ceiling mount

System Requirements

  • Windows® 7/10
  • MacOS X 10.7 or later
  • Google Chromebook™ version 29.0.1547.70 or higher

Hardware Specs

  • 3.2 GHz Intel® Core™ i5-4460 processor
  • 4 GB RAM or more
  • USB 3.1 port, backward compatible with USB 2.0

Compatible Applications

  • Zoom, Microsoft® Teams, Skype, Skype for Business, Google Meet, RingCentral, BlueJeans , Intel® Unite™, Fuze, Adobe® Connect™, CyberLink U Meeting®, Cisco WebEx® GoToMeeting™, LiveOn, Microsoft® Lync™, TrueConf, V-Cube, Vidyo, vMix, WebRTC, Wirecast, XSplit

Ordering from Amber Technology

Logging in

New to Amber Technology?

You can place an order using guest checkout, and we’ll email your order details when we ship.

You can register by following this link. When you register, we will retain your order history and checkout information for future transactions. Registration is quick and free. We’ll never share your registration details outside Amber Technology.

Are you an Amber Technology account customer?

Your user id is the email address that’s recorded for your account. If you don’t know or have forgotten your password, please reset it using this link.

If you need help with any login or site-related issues, please contact us here.

Shipping

Orders placed though the Amber Technology website are despatched from our Sydney warehouse. Orders placed before 1.00pm Sydney time (for items in stock) will generally be shipped on the same day.

We ship using Startrack Express. We deliver Australia-wide to residential, business and PO box addresses.

Shipping is free for all orders over $275 including GST (effective 1 March 2018). There is a $22 (including GST) shipping and handling charge for all orders under $275 including GST.

Tracking

You can track your shipment through the web sites of our couriers:

Star Track Express

Tracking numbers for your order can be found in the order history section of your dashboard. If you have any questions regarding shipping, please contact us.

Warranty

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

All items purchased from Amber Technology will be covered under warranty. The duration and terms of this warranty are specified by the manufacturer unless otherwise stated. Warranty information is available on the individual product listings on this site.

Refurbished items will include a 12 month warranty unless otherwise stated.

Please contact us if you have received an item which has been damaged in transit or is otherwise not working correctly when you receive it. Subject to availability, we will arrange for a replacement item to be despatched and for the faulty item to be returned to us.

Amber Technology maintains a nation-wide network of carefully selected Authorised Service Agents to ensure that you are never far from convenient, expert technical and service support. If your item develops a problem and requires servicing under warranty, please contact your local Authorised Service Agent.

Stock Availability

The availability of stock is communicated via the indicator of each product listing page. "Available" means that reasonable stock is in our warehouse, ready for immediate shipment. "Limited Stock" means that we have only a small number of items in stock. "Out of Stock" means this item is currently unavailable for immediate shipment - orders placed for ‘Out of Stock’ items will be fulfilled as soon as replacement stock arrives.

"Special Order” items are products that are not generally kept in stock in Australia. Lead times for Special Order items vary depending on country of origin, manufacturer’s stock levels, factory production schedules and/or incoming shipment transit times. Please contact us for an estimate as to the likely lead time. Please note that finalized sales for special order items cannot be cancelled.

Refurbished items

If refurbished stock is available, this will be shown on the summary page for the product. If a product listing only allows you to choose refurbished stock, we are not holding new stock and we can no longer obtain new stock.

Refurbished items are always in perfect working order and will include all accessories. Refurbished items are may

  • have a damaged carton
  • have been used for demonstrations
  • have been repaired
  • have minor imperfections that do not impact performance.

Refurbished items include a 12-Month warranty unless otherwise stated.

Technical Support

Please visit the Get Support page to find a service agent, log a service ticket, or ask a technical question about your product.

Returns

Please contact us if you have received an item which has been damaged in transit or is otherwise not working correctly when you receive it. Subject to availability, we will arrange for a replacement item to be despatched and for the faulty item to be returned to us.

Accessories

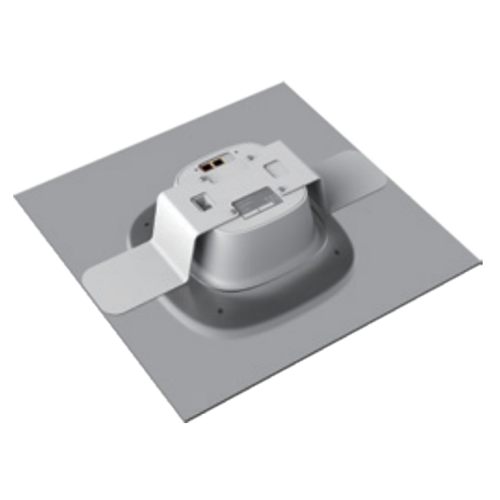

FONE700 Ceiling Mount Kit 60U6300000AD AVER AF-FONE700-MOUNT In Stock



$549.00 inc GST
RRP $549.00

(Each)
Increase value Decrease value
$2,349.00 inc GST
RRP $2,349.00

(Each)
Increase value Decrease value
  inc GST
RRP $2,749.00

(Each)
