Compact 8 Port Switch AN-110-SW-C-8P Araknis

Product Code: AR-AN-110SW-C8P

Brand
Araknis
RRP $629.00


Quantity In Cart:
Unit of Measure
EACH



2 Year
Technical Specifications
Brands Araknis
Product type Network switches
  • Details
  • Downloads
  • Where to Buy
  • Ordering

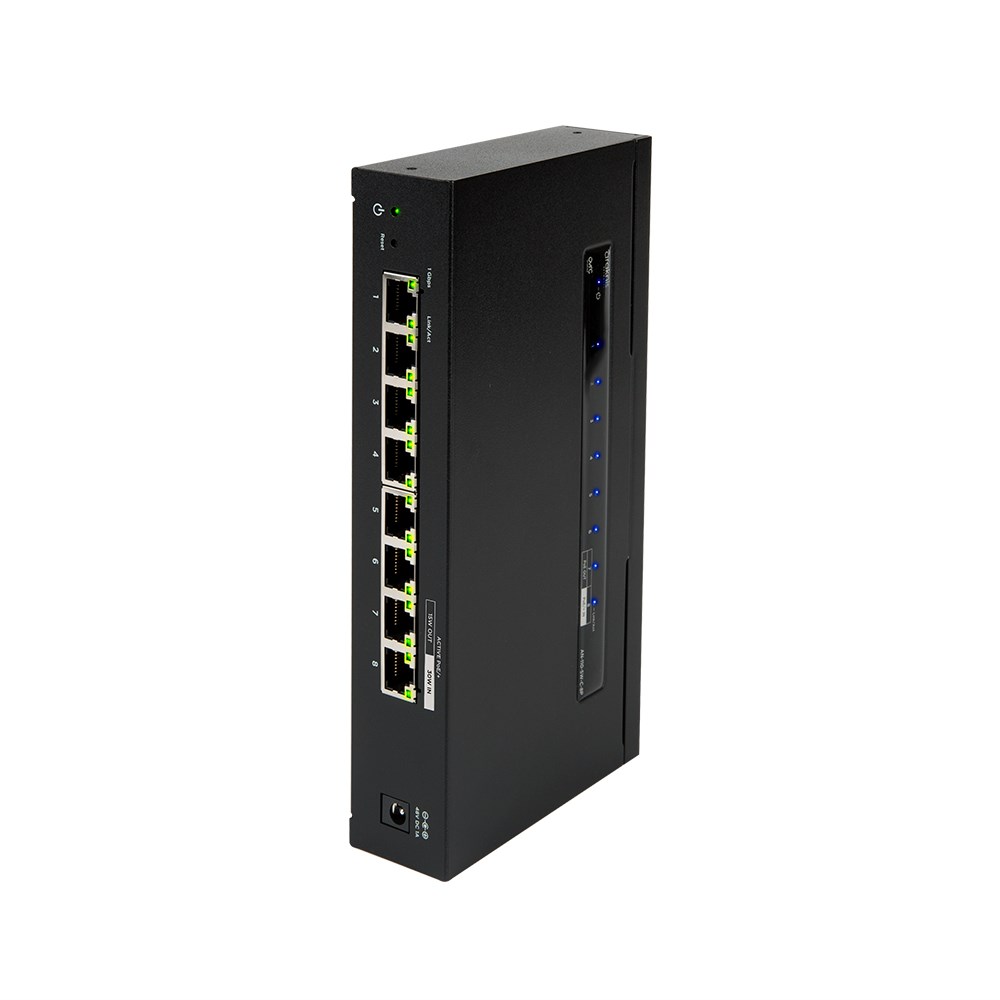

Araknis Networks® 110 Series Unmanaged+ Gigabit Compact Switch


With the Araknis Networks® 110-series Compact Switch, its small size is its biggest strength. It’s powered by PoE to help save space and fanless to eliminate noise. Place it inside a VersaBox behind the TV or structured wiring can for a comprehensive networking solution, complete with a 15W max port to power another PoE device.

  • Power Notice - This product does NOT include a power supply, but can be powered via PoE switch, PoE injector, or DC power supply.
  • Power Limitation - If powered by PoE+, PoE pass-through has a limit of 50m. There is no limitation when powered by the optional DC power supply.

Features

  • Gigabit
  • Compact Design
  • Metal Housing
  • PoE/+ Powered
  • Fanless
  • OvrC Enabled





Compact Design

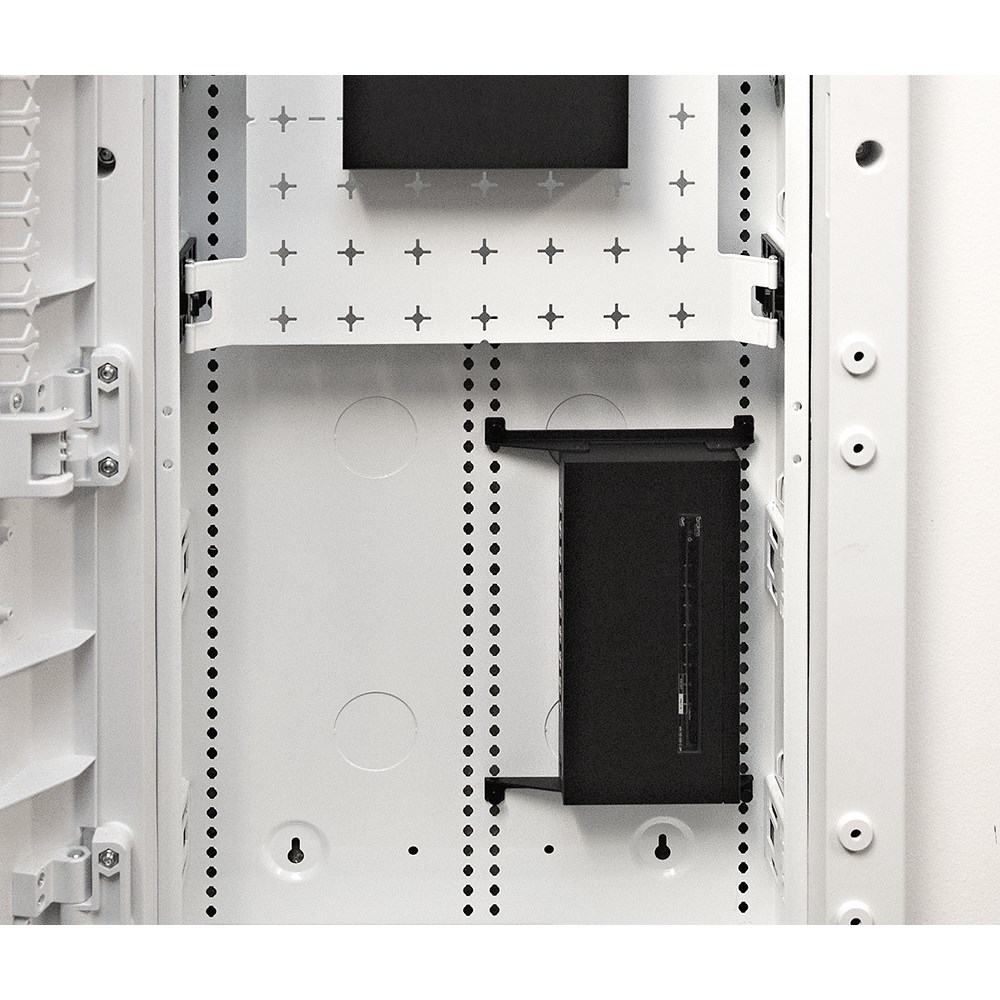

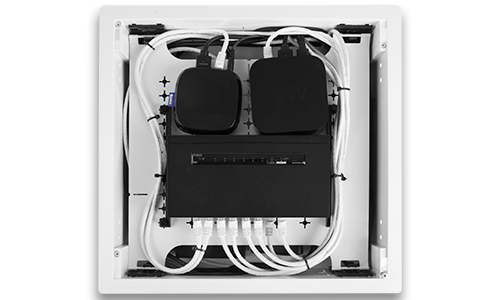

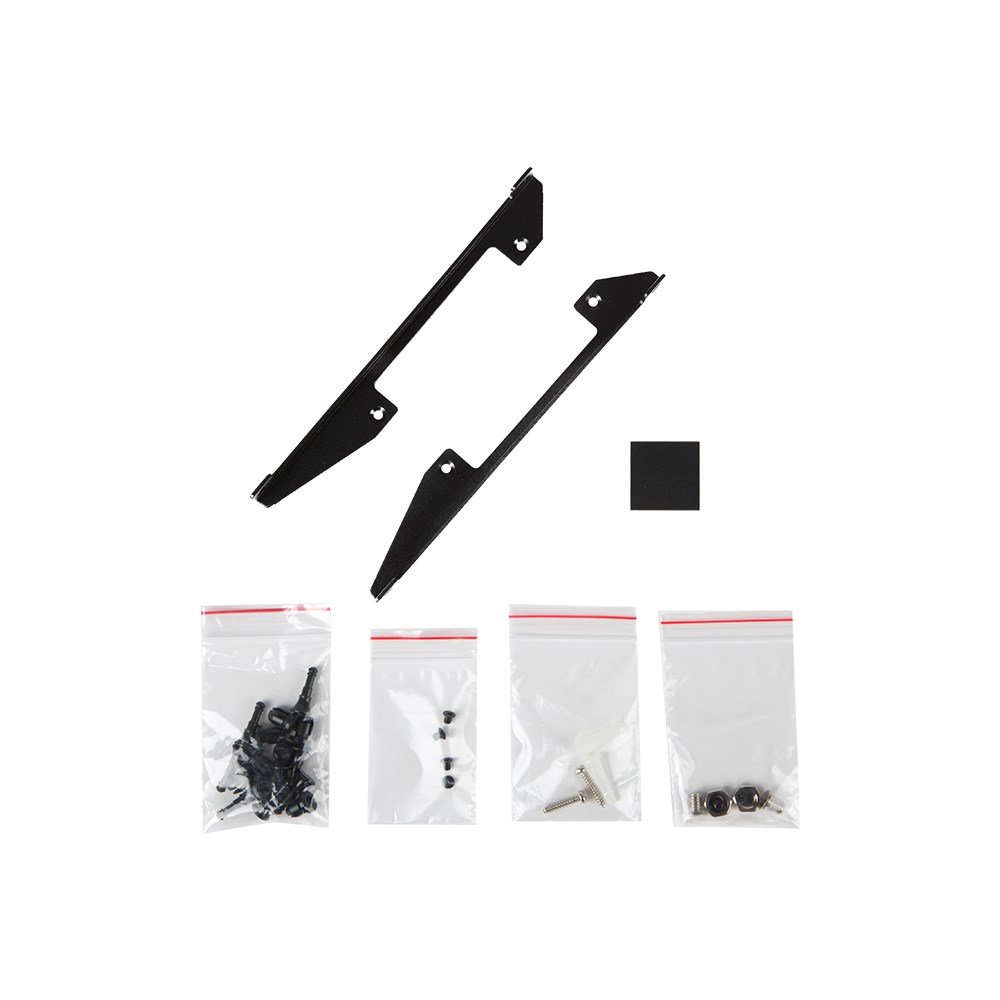

Thanks to its sleek and compact design, you can install this switch just about anywhere. It was specifically designed to fit inside a VersaBox behind the TV, or in a structured wiring can – complete with tabs for a clean install. ¬You’ll even have space for other devices!

PoE+ Powered

Every dealer knows that space comes at a premium, so don’t waste it on a bulky power supply. Simply use the same uplink to the main PoE switch, no need to power it locally.

PoE Pass-Through

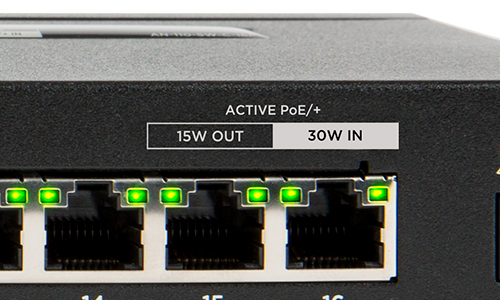

A 15W max port (802.3af) on this switch allows you to power another PoE device within your structured wiring can or VersaBox. Forget the power supply and use it power an IP camera, wireless access point, and more.

Unmanaged+

Unmanaged+ takes the reliability and cost-effectiveness of an unmanaged switch and adds basic cloud management via OvrC. Now you can see through the entire network to each connected device, making it easy to troubleshoot problems and adding a layer of visibility to an already great design.

Fanless Operation

Say goodbye to noisy equipment. This switch features a completely silent operation – even though it's powered by PoE+ with an active PoE pass-through.

Plug-n-Play

Stop spending time on network configuration. Simply plug this switch in, and you’re ready to go. It’s as easy as that.


AN-110-SW-C-8P
RJ-45 1000BASE-T Ports
8
POE Ports
1x PoE+ In, 1x PoE Out
RJ45 Auto Sensing
Yes
RJ45 Auto Negotiation
Yes
Auto MDI/MDI-X
Yes
PoE Features
PSE Port: Port 7
PD Port: Port 8
Construction
Metal Housing
LED Indicators

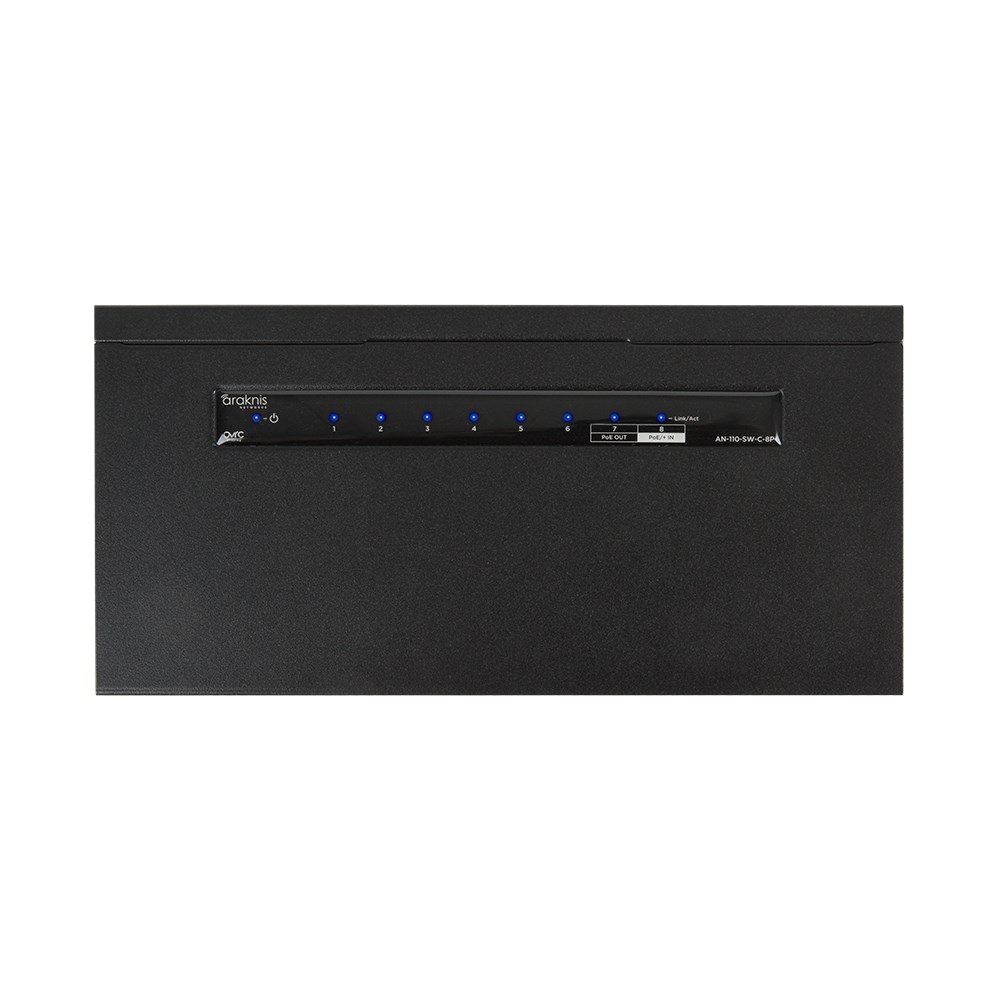

Top Panel (Blue): System/PWR + Link/Act

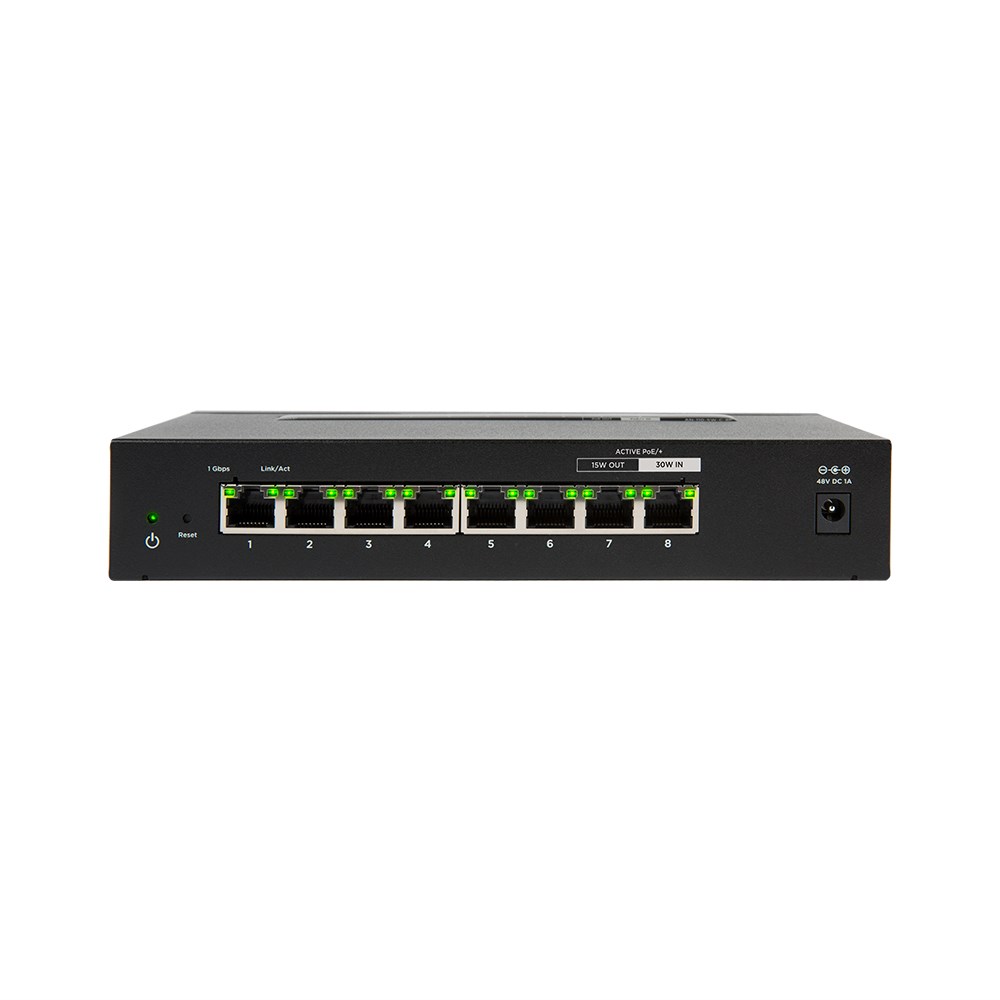

Front Panel (Green): System/PWR + Link/Activity, Speed(On RJ45)
MAC Table Size
4K
Packet Buffer
128KB
Switching Capacity
16Gbps
Forwarding Rate
11.9Mpps
L2 Features
HOL Blocking
Energy Efficient Ethernet: IEEE802.3az
Flow Control
802.3x, Back Pressure
Forwarding Mode
Store-and-forward
Jumbo Frame Support
9K
QoS Features
Priority Queues: 4 hardware queues
Scheduling: Priority queuing and WRR
COS: 802.1p CoS
Certifications
UL/cUL
CE EMC (EN 55032/55024)
FCC Class A
Weight
1.5 lb
Power Connection Type
PoE+ or AN-ACC-PS-48V1A
Power Consumption
Power On: 3.37
Full Load w/o PoE Out: 6W
Full w/ PoE Out (max): 24.4W
BTU/h (max): 7.15
Operating Temperature
32-122°F
Storage Temperature
-22-158°F
Operating Humidity
10%-90%, relative, non-condensing
Dimensions (W x H x D)
8.2" x 1.49" x 4.1"
