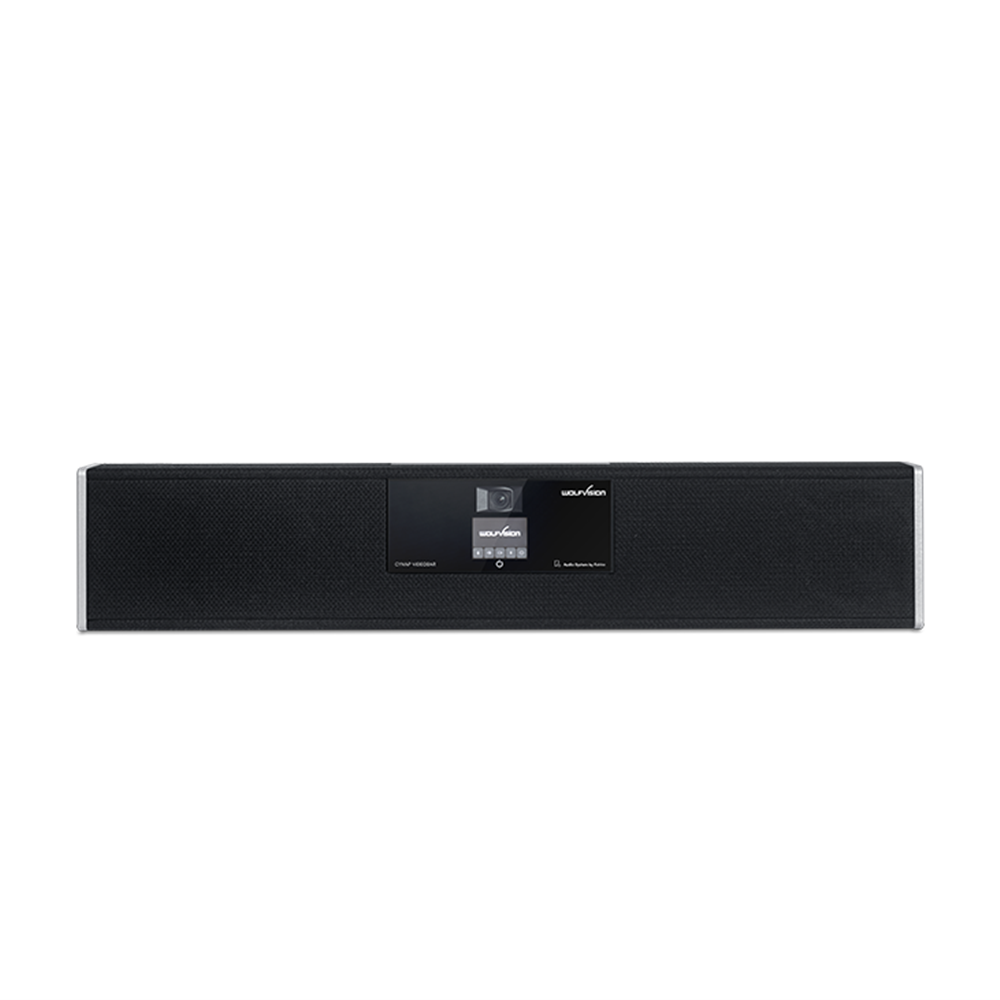

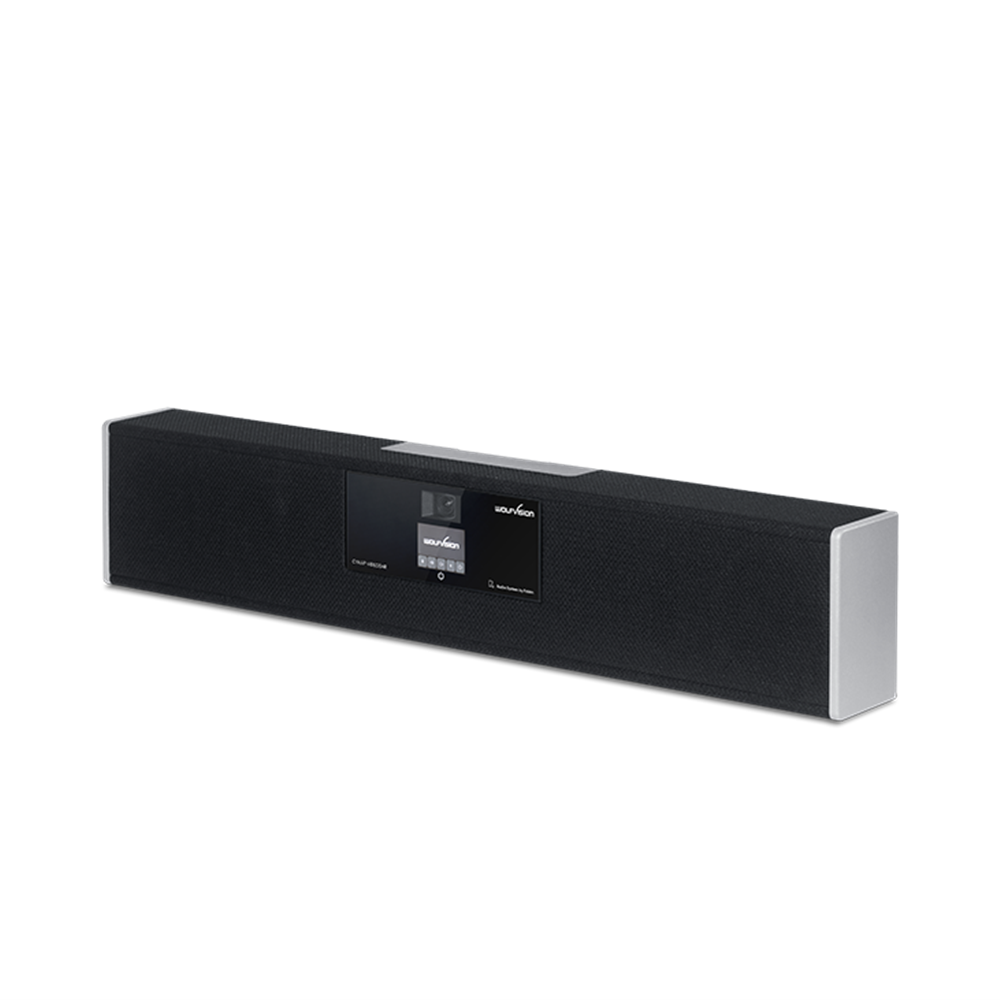

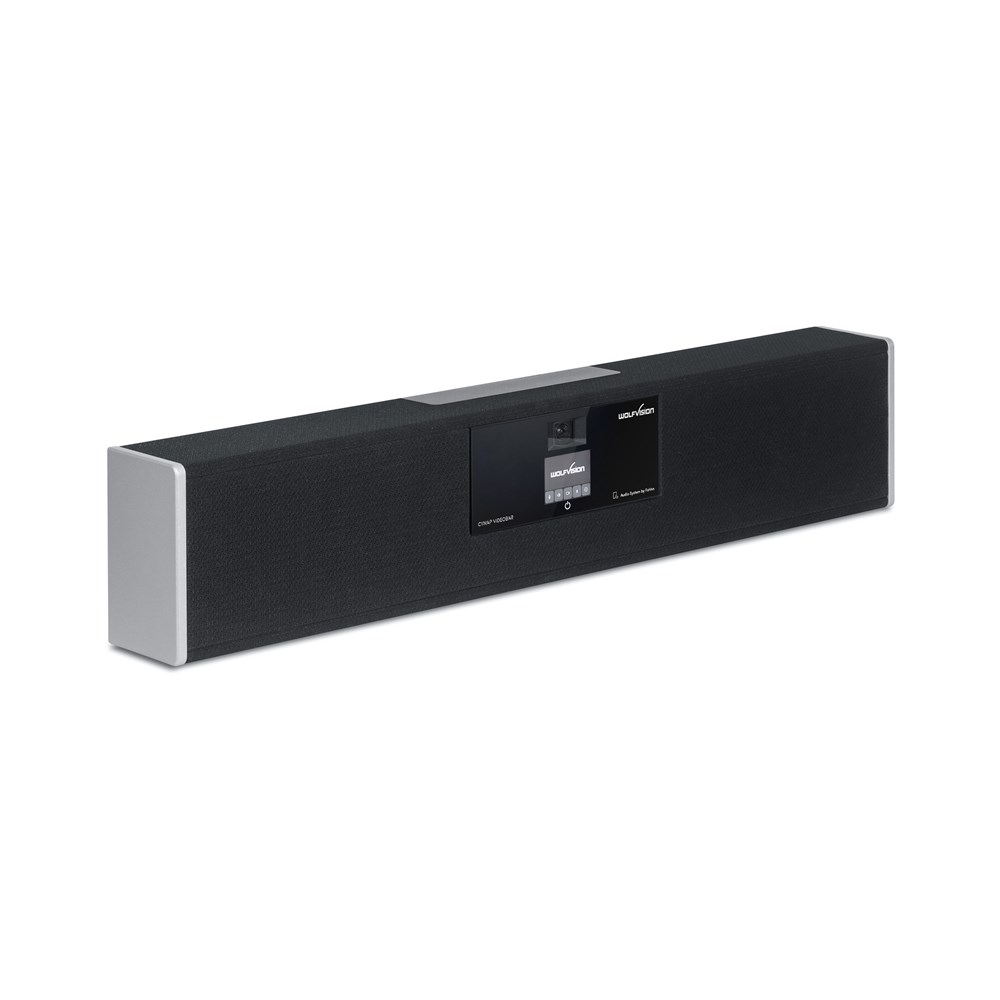

Cynap Videobar 102040-01 Wolfvision

Product Code: WO-VIDEOBAR

Brand
Wolfvision GMBH
RRP $13,949.00


Quantity In Cart:
Unit of Measure
EACH



3 Year
Technical Specifications
Brands WolfVision
Native Resolution 4K
  • Details
  • Downloads
  • Where to Buy
  • Ordering

All-in-one hybrid meeting room AV solution:
WHERE CLARITY MEETS COLLABORATION

The Cynap Videobar is a wireless presentation, web conferencing and collaboration system for small and medium-sized meeting rooms.

It combines award-winning Cynap wireless screen sharing technology together with a high-quality web conferencing camera,
built-in speakers, and microphone, to provide a single, high-performance, all-in-one, multi-functional AV system.

  • 4K AI Camera 110° FOV with auto-framing
  • 2x 70W loudspeakers by Fohhn
  • Beamforming Microphone Array
  • WolfVision Advanced Voice-Processing Engine (WAVE)
  • Cynap wireless screen sharing
  • BYOM wireless web meetings
  • Digital signage player
  • Whiteboard & annotation


High performance speaker system by Fohhn

Our superb speaker system by Fohhn ensures that remote participants are clearly heard in the meeting room, providing a sense of presence and allowing for equal participation.
This is crucial in hybrid meetings where ensuring that remote voices are as prominent and clear as in-room voices helps in maintaining true collaborative equity and engagement among all participants.

WolfVision imaging technology for crystal clear, tack sharp video

WolfVision is world-renowned for its impressive camera technology, and the Cynap Videobar is no exception - it‘s equipped with a new 4K UHD AI camera with autoframing, delivering crystal clear on-screen video, for an outstanding hybrid meeting experience for everybody

Outstanding beamforming microphone array with WolfVision Advanced Voice-Processing Engine

With a pick-up range of up to 7 metres, an adaptive beamforming microphone array with noise suppression, automatic gain control and acoustic echo cancellation, together with the WolfVision Advanced Voice-Processing Engine (WAVE), ensure unrivalled sound pickup and reproduction.


BYOM web meetings: Use any conferencing service you like

Any web conferencing service can be used, and meeting hosts simply use their own laptop running our vSolution App to connect wirelessly to the videobar, and then start or join web meetings directly from their own device. It‘s really easy to use, and all in-room AV equipment is controlled using a single app.

Features

  • Operating system: Linux
  • Camera: 8MP 4K camera. 110° FOV, auto-framing and speaker tracking
  • Output resolution: 2160p60/30, 1080p60/30, 720p60
  • Microphones: Beamforming Microphone Array with 4x MEMS microphones, WolfVision Advanced Voice-Processing Engine (WAVE)
  • Loudspeakers (by Fohhn): 2 x 70W, 2 x 4“ chassis, with coaxial high frequency diffraction waveguide and bass-reflex port
  • Frequency response: tbc.
  • SNR (Signal-to-noise ratio): >110dB
  • EQ adjustment for room optimisation: Yes
  • BYOM (Bring Your Own Meeting) web conferencing: Yes
  • Supported devices for wireless screen sharing (Up to 4K depending on device): iOS, iPadOS, Android, Windows, macOS, Chrome OS
  • Supported screen mirroring protocols: AirPlay, Miracast, Chromecast, vSolution Cast
  • Max. no. of onscreen windows: 4
  • Touchback functionality: Yes, for Windows (Miracast & vSolution Cast), macOS via vSolution App
  • Presentation modes: Protected Mode, Open Mode
  • Whiteboard and annotation: Yes
  • Digital signage function and screensaver: Yes
  • vSolution Link Pro software for remote management & firmware updates: Yes, Cloud and on premise
  • Live Viewer Mode (browser-based live view of onscreen content on own device): Yes
  • Bluetooth device discovery: Yes
  • Wi-Fi standards (Wi-Fi 5): 2.4 GHz in Access Point Mode / 2.4 and 5 GHz in Infrastructure Mode
  • Network protocols: TCP/IP, HTTP, HTTPS, SNTP/NTP, SSL, SSH, UDP
  • IP configuration: DHCP, Static (IP address, Subnet mask, Default gateway, DNS server), Proxy, Interface priority
  • Security authentication: for LAN / Security encryption for wireless WLAN IEEE 802.1X / WEP, WPA2, WPA2 Enterprise or IEEE 802.1X
  • External controlling: Multi-touch display, web interface, room control system, keyboard/mouse, vSolution App
  • Peripheral device control: Yes
  • Inputs / Outputs: HDMI In x1, HDMI Out x1, USB-A 2.0 x1; USB-C 3.0 x1, LAN port x1
  • Audio Inputs / Audio Outputs: 3.5mm Line In; Bluetooth / Via HDMI out; 3.5mm Line Out
  • Free firmware updates: Yes
  • Dimensions in operation (L x W x H): 782 x 92 x 147 mm (30,79 x 3,62 x 5,79“)
  • Weight: tbc.
  • Power consumption: Max 100W
  • Included accessories: Power supply, wall mount
  • Optional accessories: Optional remote control
  • Free firmware updates: Yes
  • Limited Warranty: 3 years (optional warranty extension up to 5 years)
  • Made in: EU | Austria & Germany

Product Documents
