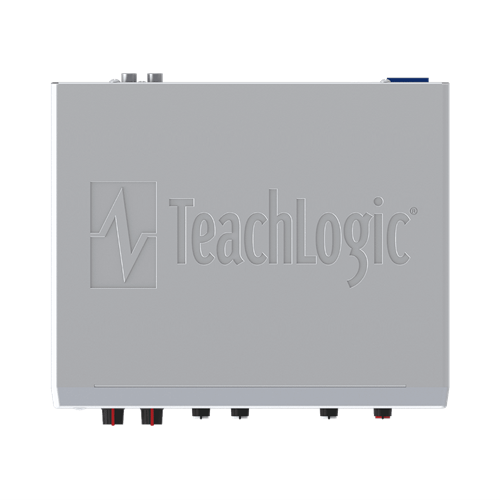

Forum 50-watt digital class D IMA-240 TeachLogic

Product Code: TH-IMA-240

Brand
Teach Logic
$1,099.00 inc GST
RRP $1,099.00

Pre-Order Now
Increase value Decrease value
Quantity In Cart:
Unit of Measure
EACH



5 Year
Technical Specifications
Brands TeachLogic
Amplifier Type Receiver Mixer
  • Details
  • Downloads
  • Where to Buy
  • Ordering

Forum™ Receiver Amplifier

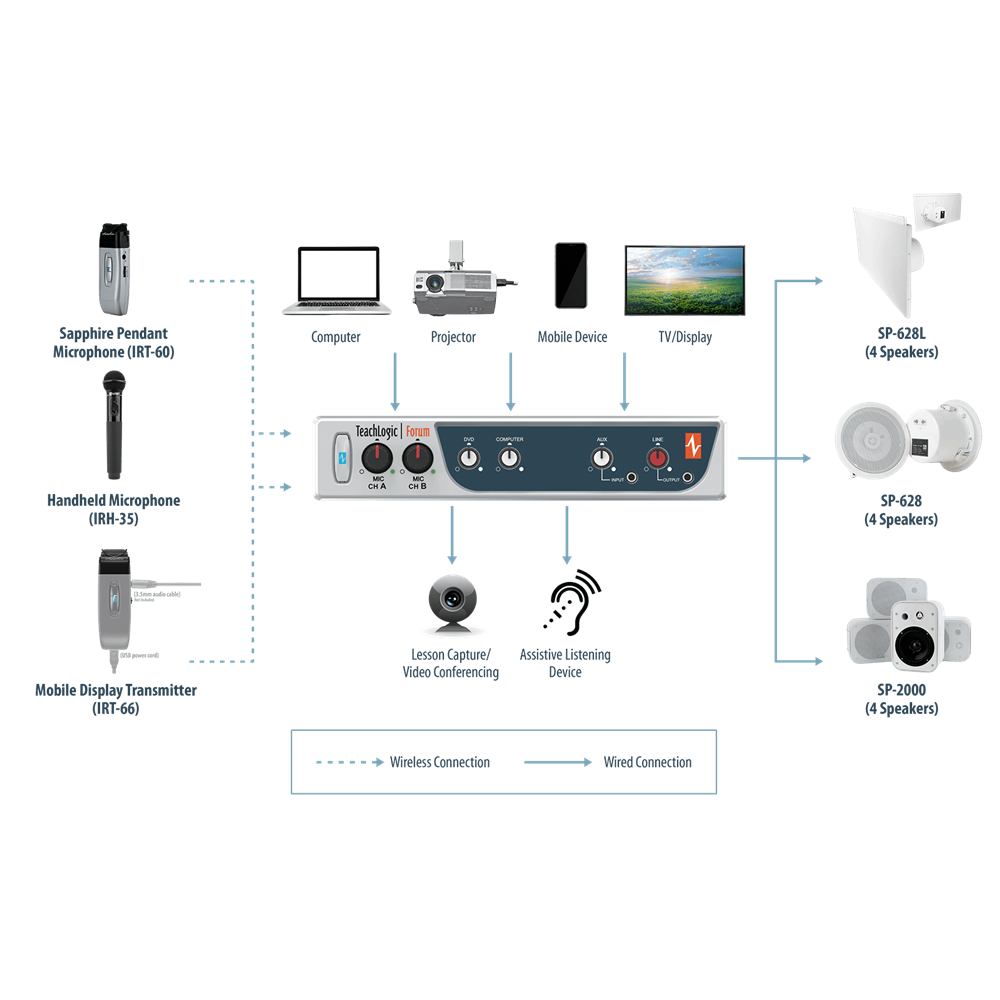

The TeachLogic Forum™ instructional audio system provides the classroom with a platform to clearly deliver all audio sources so that learning happens regardless of where the students are located.  This versatile system supports 2 infrared wireless microphones, 3 classroom audio sources like a computer or TV, and 2 audio outputs for assistive listening system connection, lesson capture recording, and/or video conferencing to support hybrid learning models.

In addition to these must-have features, the internal architecture of the Forum™ includes a Digital Feedback Guard (DFG) to suppress unwanted noise, a Computer Anti-Hum Circuit to eliminate those pesky low level humming sounds computers can make, and a USB charger for correct placement of and access to the microphone charger.

A 4th audio source can be added by using the IRT-66 Mobile Display Transmitter. Now you can easily roll in a portable audiovisual cart to any classroom and instantly connect to the Forum’s speakers. No additional wires needed.

  • 3 AUDIO INPUTS
  • 2 MICS
  • ASSISTED LISTENING
  • FEEDBACK GUARD
  • VIDEO CONFERENCING

Features

  • Amplifier: digital hybrid class D
  • Two Power Amplifiers: 25 watts ea. channel, total 50 watts RMS for 4 x 8Ω loudspeakers
  • 3 Line Level Inputs, mixed w/ the two microphone inputs
  • 2 Line Level Outputs

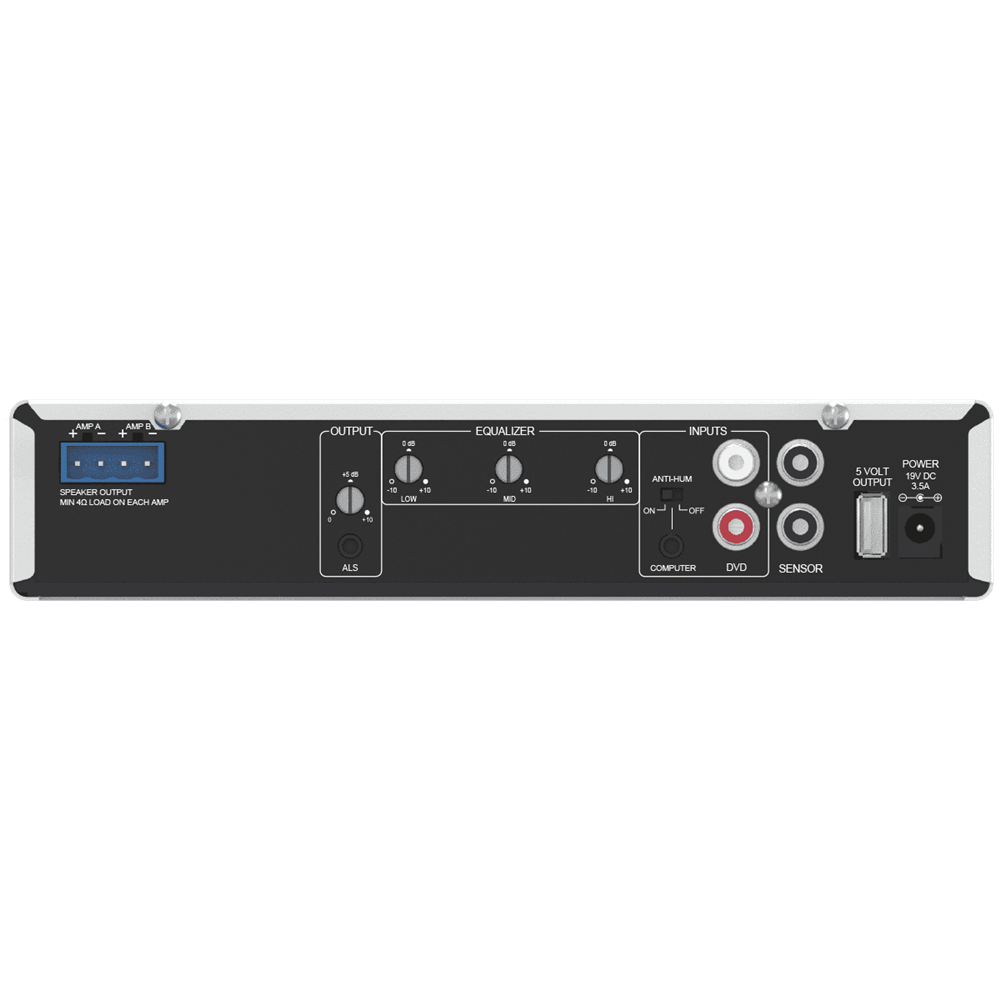

  • Rear panel mixed output for assistive listening system and/or lesson capture with gain control (3.5mm)
  • Hybrid Learning Compatible

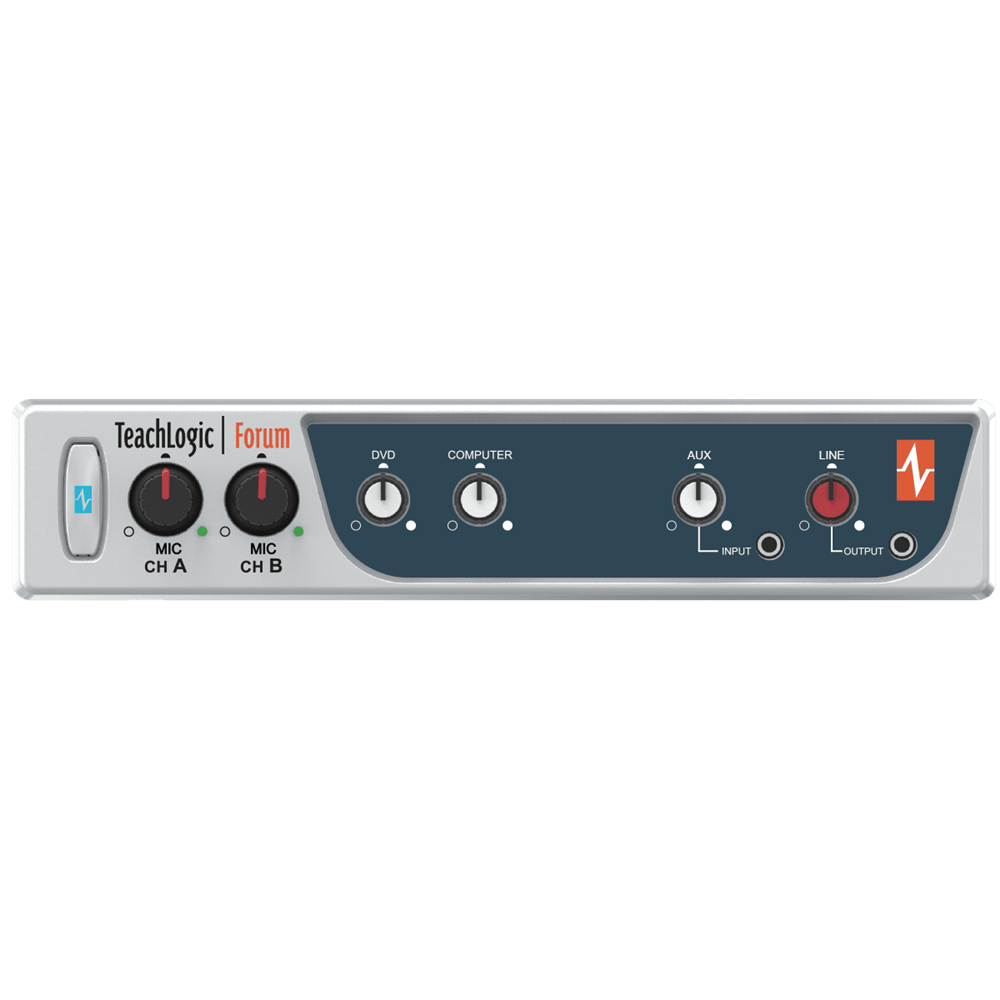

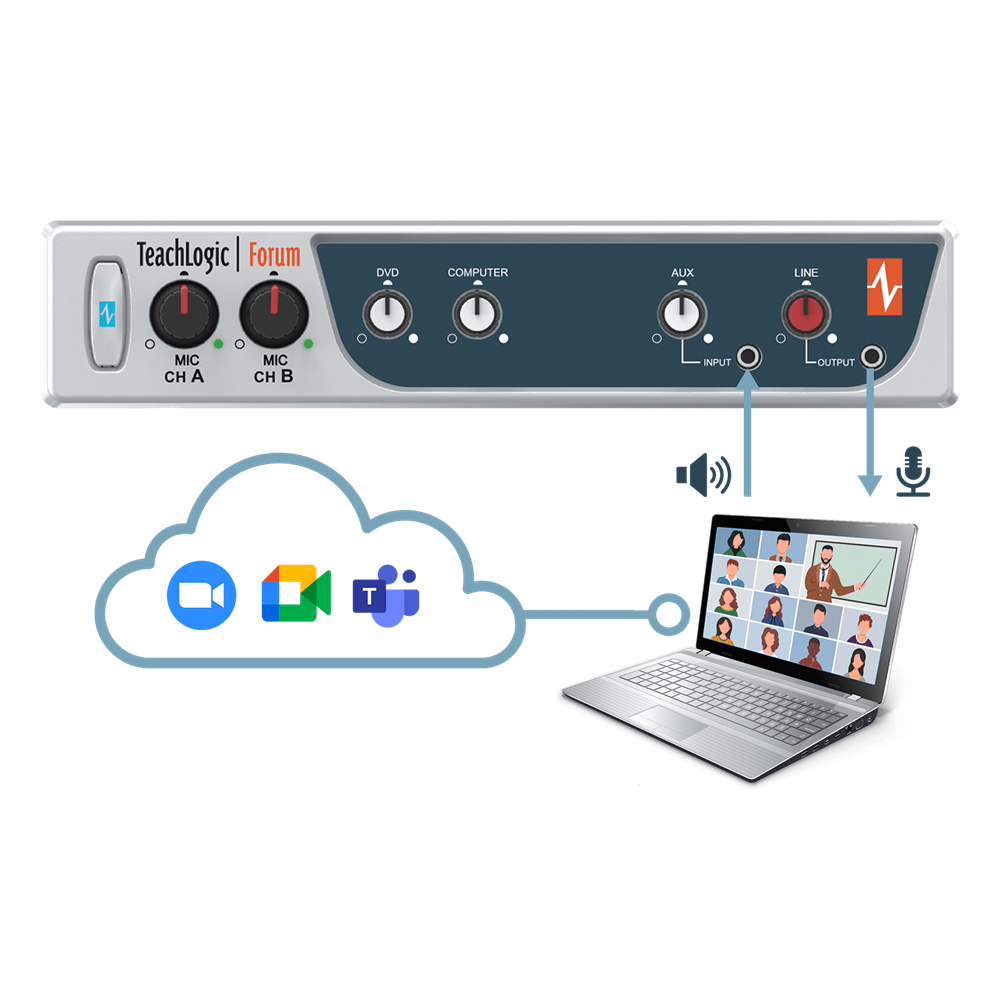

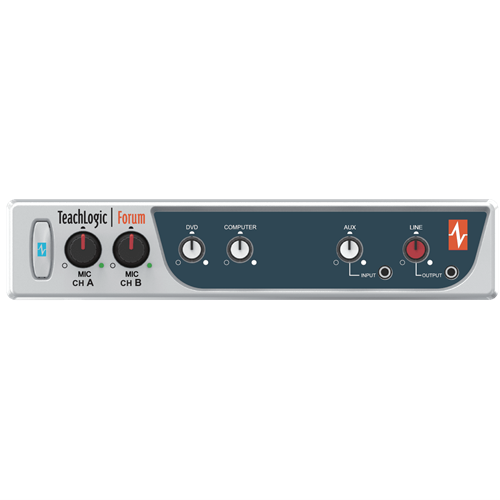

  • Front panel input & output connects to host computer to synchronize classroom audio w/ video conference application
  • Digital Feedback Guard™
  • Switchable computer anti-hum circuit with ON/OFF switch
  • 3-band digital equalizer ± 10dB
  • Power sleep mode to conserve energy

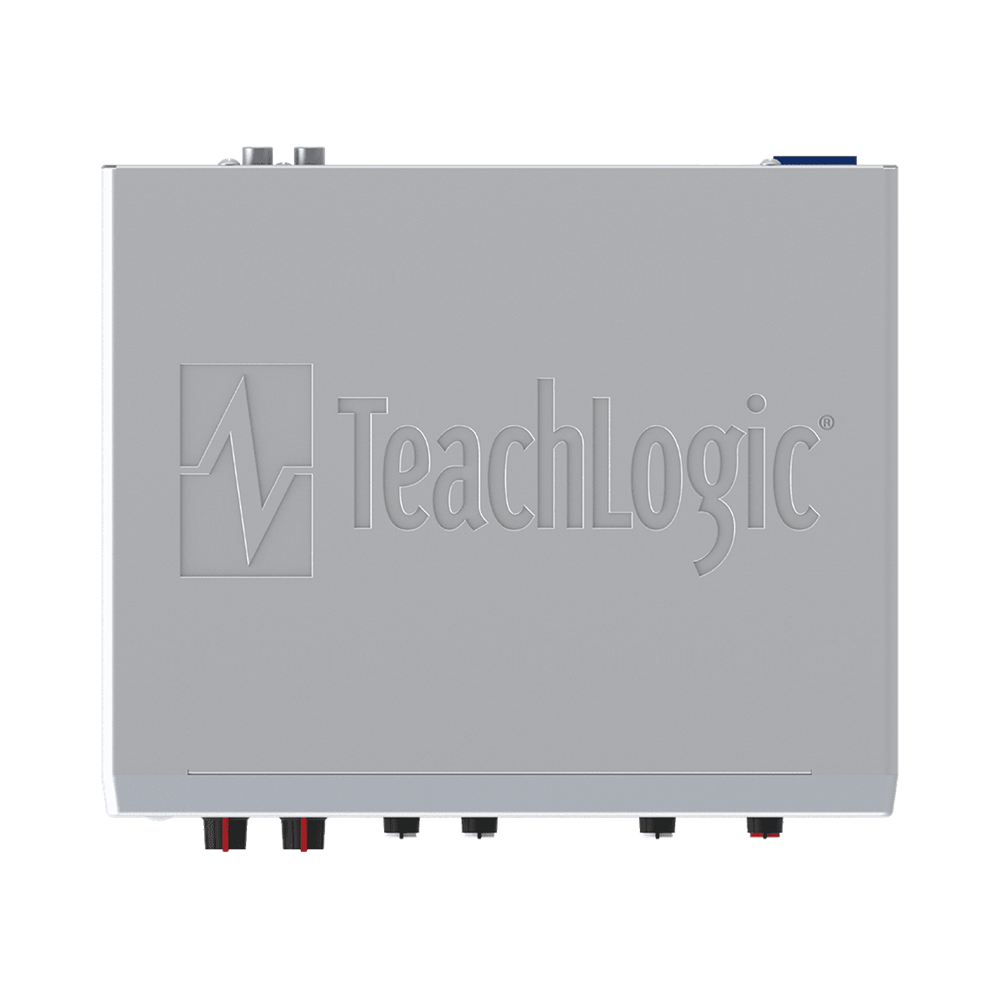

  • Light weight aluminum cover
  • Teacher Priority function attenuates volume of all line inputs with button press

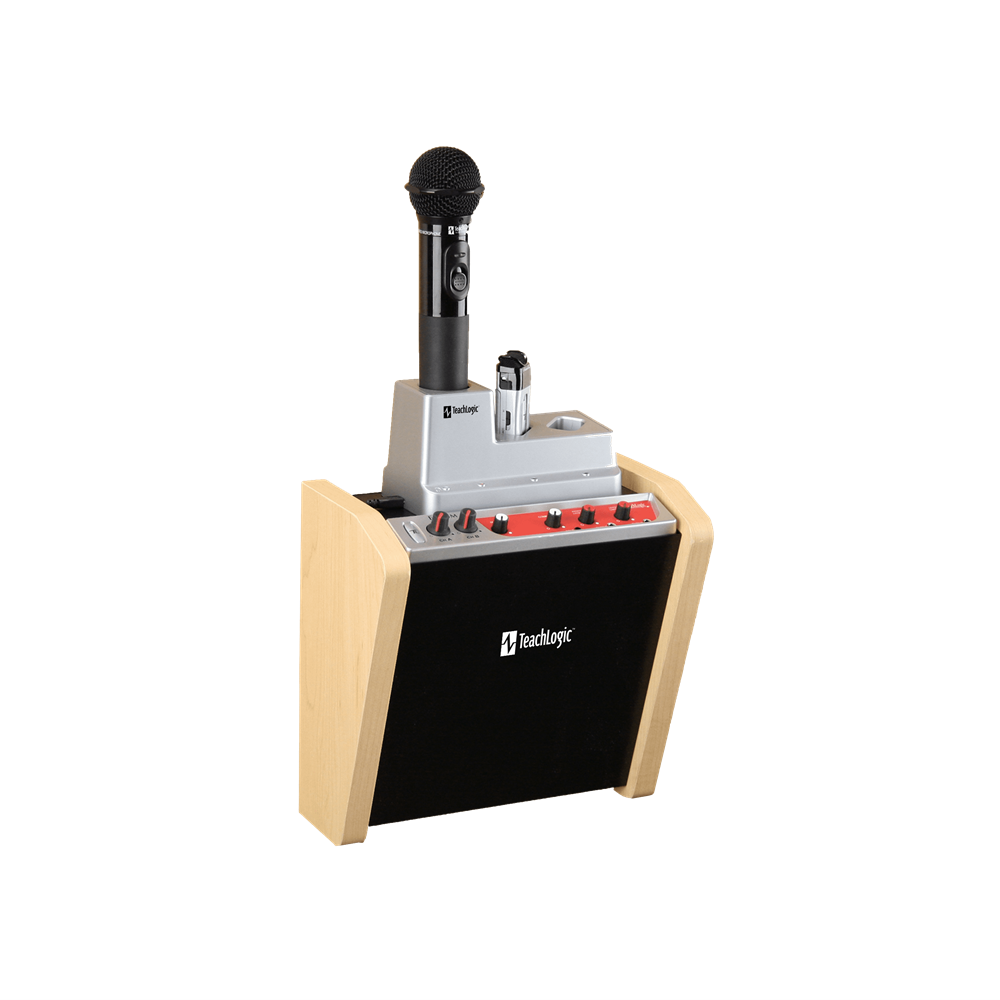

  • Drop-in microphone charger connection 5 VDC USB
  • Accommodates up to 3 ceiling sensors for increased microphone reception coverage and/or extra-large classrooms
  • WC-400 Wall Mounted Cabinet (optional)
  • Rack or shelf/wall mounting kits (optional)

Specifications

  • Amplifier Output Power    50 W RMS, 2 x 25 W channels
  • Receiver Input    Infrared FM, 2 wireless mic channels
  • Modulation    Wide-band FM
  • Reception Frequencies
    • Ch. A: 2.08 MHz
    • Ch. B: 2.54 MHz
  • Deviation    10 kHz Nominal, 25 kHz Maximum
  • De-emphasis    50 μs
  • Tone Key    32.768 kHz
  • Infrared Wavelength    850 nm
  • External Sensor Input    2, RCA, powered ports
  • Connectivity Coverage    1,600 sq ft per sensor, up to 3 sensors supported
  • Total Harmonic Distortion    <1% @1 kHz
  • Frequency Response    40 Hz – 18 kHz, ± 3 dB
  • Line Level Inputs
    • Rear Panel: DVD input, dual RCA, 0dB
    • Rear Panel: Computer input, 3.5mm, -10 dB
    • Front Panel: Auxiliary input, 3.5 mm, -10 dB
  • Anti-Hum Balun    Present on computer input
  • Line Outputs
    • Front Panel: 3.5 mm w/ gain control
    • Rear Panel: 3.5 mm w/ +10 dB gain control
  • Output Impedance    Rated Load: 4 Ω minimum impedance
  • Equalization    3-band, ±10 dB
  • S/N Ratio    65 dB
  • Speaker Connection    4-pin Phoenix Connectors
  • Charger Output    5 VDC, USB
  • Power Supply    19 VDC / 3.5 A CE, CSA and UL Listed
  • Dimensions    7.5 × 8.5 × 1.75 in
  • Weight    1.7 lbs
