IP Heavy Duty Telephone IPHDT-DY Zenitel

Product Code: ZE-IPHDT-DY

Brand
Zenitel
$4,800.00 inc GST
RRP $4,800.00

Out of Stock
Increase value Decrease value
Quantity In Cart:
Unit of Measure
EACH



2 Year
Technical Specifications
Brands Zenitel
  • Details
  • Downloads
  • Where to Buy
  • Ordering

The IPHeavy Duty Telephone is made for environments that need a telephone which can withstand rough usage and treatment. The telephone is well suited for heavy duty usage due to the thick aluminum casing, stainless steel materials, and high ingress protection (IP66).Note that the units are not intended for use on deck of ships unless well protected from salty air and salt water.

The IP telephone supports open standards and is compatible with ICX-AlphaCom, IC-EDGE and iPBXs using SIP technology. When working in ICX-AlphaCom mode, the IP telephone supports special services only available using the CCoIP protocol and AlphaCom server. Examples of services are emergency broadcast with volume override, CCTV integration, call priority, and AlphaNet multisite networking and event scripting.

The station provides high quality conversations, using HD Voice and Zenitel`s superb audio technology such as active noise filtering, echo cancellation, wide band audio codec and high power audio outputs.

The telephone has an integrated managed data switch providing advanced networking and security features. The integrated switch provides Protection from unwanted access, support for increased system availability and improved Quality of Service (QoS) by managing data traffic. It alsoenablesmoreCost-efficient installations by providing shared network connections through the integrated data switch

As a result, instant, efficient, and secure delivery of voice and data services in an IP environment is ensured. The station has one relay and one logical output. These outputs can, for instance, be used to turn on a strobe light. The operation of the outputs is programmable. To provide maximum availability, the station comes with advanced supervision functions. The station linetest will detect if there are any faults in the network or station electronics. The status of the station is reported to AlphaWeb as well as to 3rd party management systems using SNMP, Syslog or OPC.

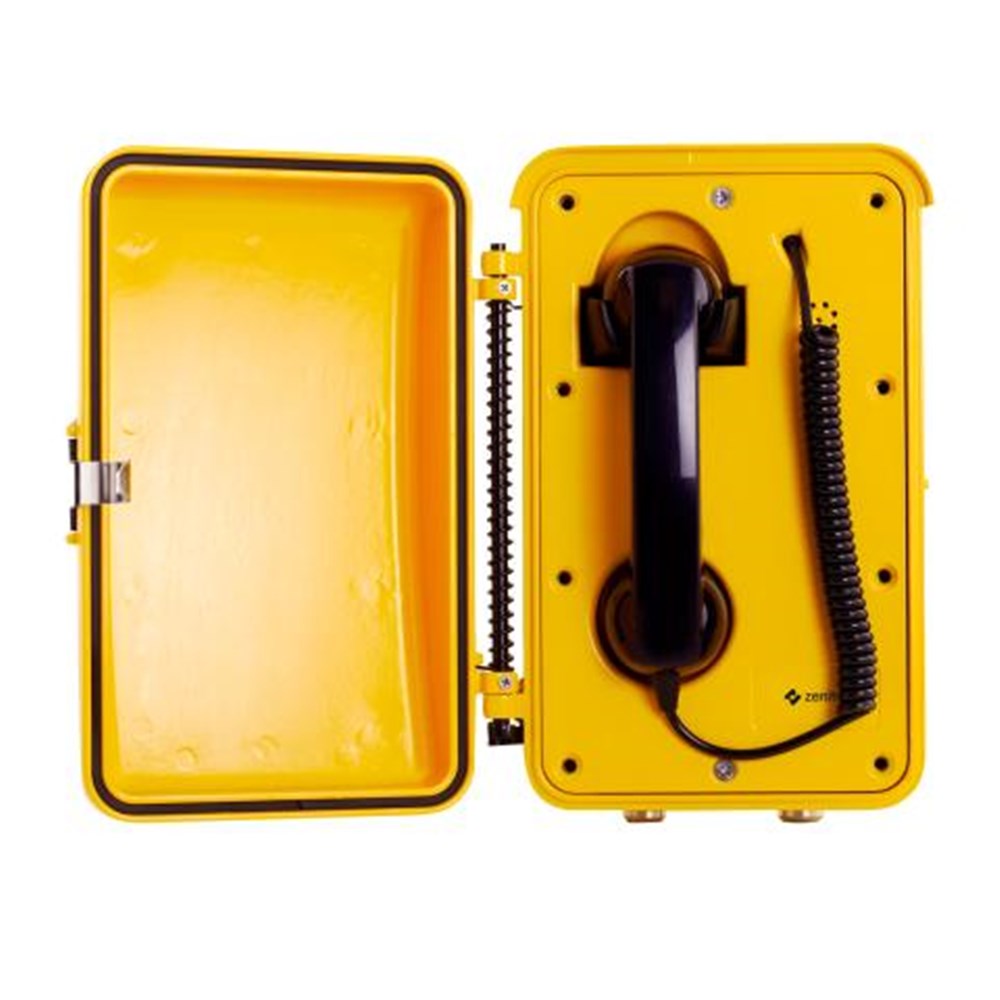

IP Heavy Duty Telephone, Door, Coiled Rubber Cord, Yellow

  • Compatible with ICX-AlphaCom, IC-EDGE and iPBXs (SIP)
  • Four variants: Full keyboard and hotline (no keyboard), both with or without door
  • Made for critical communication in rough environments like roads, tunnels, ships (indoor use)
  • Water and dust resistant (IP66)
  • Very durable with 5 mm aluminum casing and stainless steel components
  • Magnetic reed hook-switch ensures minimal wear and tear
  • Supports VoIP with SIP and CCoIP andONVIFprotocols
  • Option for GSM cellular connectivity
  • Support local power and Power over Ethernet (PoE)
  • Integrated data switch with advanced networking and security functions
  • Supports HD Voice
  • Advanced supervision functions
General
  • Dimensions (WxHxD)    205 x 320 x 148 mm
  • Weight    5.4 kg
  • Ingress protection    IP66
  • Impact protection    IK10
  • Construction    5 mm aluminum casing and stainless steel components
  • Mounting    Wall mounted
  • Temperature    -40°C to +60°C
  • Relative humidity    0% – 95%
  • Frequency range    200 – 7000 Hz
  • Remote control, Max switching capacity, Max voltage relay, Max current relay    6 configurable I/Os, 2 relays; Max: 250VAC/220VDC, 2A, 60W
  • SIP support    RFC 3261, SIP Info (DTMF), RFC 2833 (DTMF)
  • IP protocols    IP v4 - TCP - UDP - HTTPS - TFTP - RTP - RTCP - DHCP - SNMP DiffServ - TOS - ONVIF - CCoIP® - SIP
  • LAN protocols    Power over Ethernet (IEEE 802.3 a-f), Network Access Control (IEEE 802.1x)*, STP (IEEE 802.1d), RSTP (IEEE 802.1d-2004)
  • Audio technology    HD Voice 200 Hz – 7 kHz (G.722), Telephony 3.4 kHz (G.711), Active noise filtering, Echo cancellation, Open duplex, Adaptive jitter filter, 1.5 Watt audio output
  • Power    Power over Ethernet (IEEE 802.3 a-f), Class 0, Local power 19 – 27V DC, Idle 2.5W, max. 4.5W
  • Management and operation    HTTPS (Web configuration), DHCP and static IP, TFTP (firmware and configuration download), SNMP (monitoring)
  • Compliance    CE and FCC Part 15
  • Warranty    2 Years standard warranty, extendible up to total of 5 years (additional fee)
