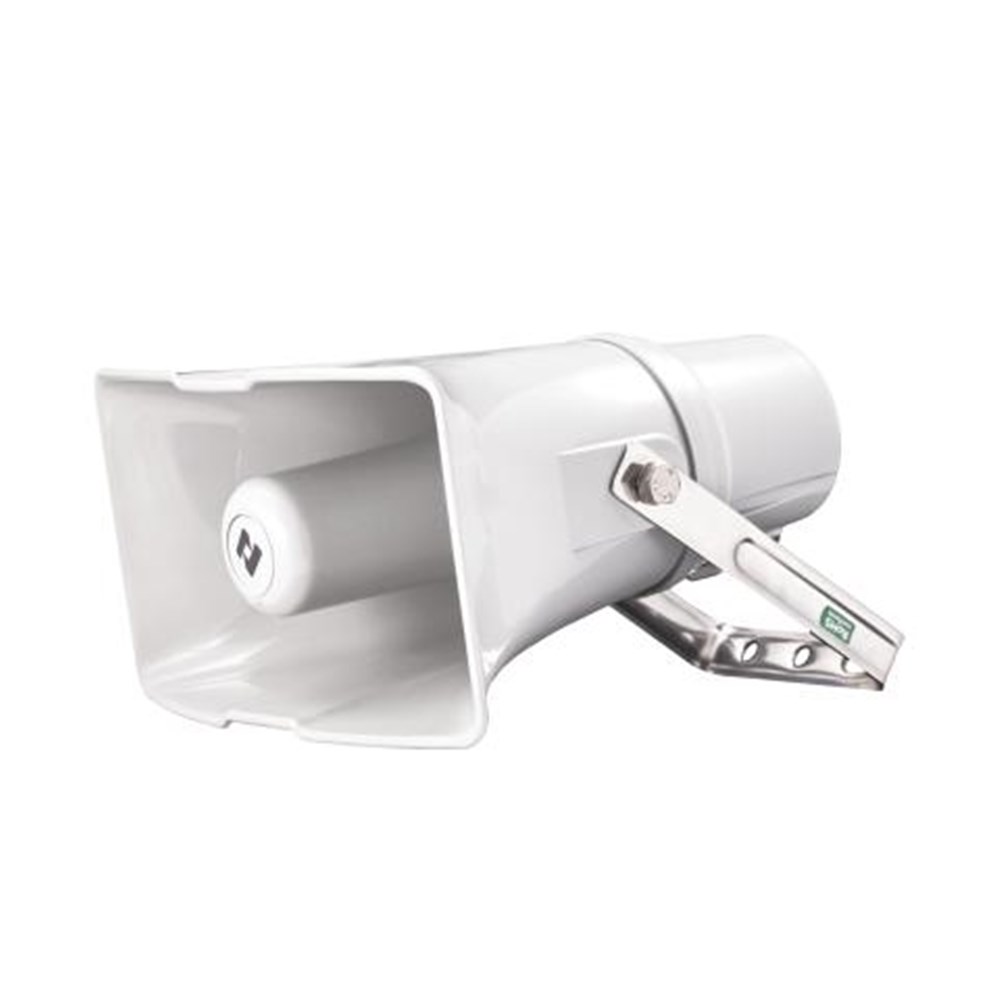

IP HORN LOUDSPEAKER ZIPS-H ZENITEL

Product Code: ZE-ZIPS-H

Brand
Zenitel
$1,500.00 inc GST
RRP $1,500.00

In Stock
Increase value Decrease value
Quantity In Cart:
Unit of Measure
EACH



2 Year
Technical Specifications
Brands Zenitel
  • Details
  • Downloads
  • Where to Buy
  • Ordering

The Zenitel IP Horn Speaker features a Class D amplifier, powered via PoE, and is designed with a horn shape to enhance both sound pressure level (SPL) and directivity. This design enables the speaker to deliver up to 120 dBA SPL peak signal (with a 6 dB crest factor), making it ideal for environments where speakers need to be positioned at a distance from the listener and where space is not a primary concern. The ZIPS-H is at home in high-noise environments and where reflections must be controlled to maintain intelligibility such as ideal for road and tunnel infrastructure and industrial projects. Of course it is equally suited to building security applications where perimeter and asset protection may be the focus.

Leveraging IP technology, each speaker can be individually monitored and managed. With the amplifier integrated directly into the speaker, the need for a central amplifier unit and traditional speaker loops is eliminated, making the system highly scalable and simplifying the addition of new speakers. While conventional speaker loops are not required, the speakers can still be grouped into zones that can extend across networks or even the Internet. To ensure maximum reliability, the speaker comes equipped with advanced supervision features.

The built-in microphone offers intelligent functionalities such as self-checking and automatic volume control. It also enhances traditional broadcast systems by enabling half-duplex communication and ambient listening. The self-checking feature detects any faults in the network or speaker electronics, with status updates sent to the central unit and third-party management systems via SNMP or Syslog. The speakers can also be auto-discovered, receive messages, and provide talkback functionality directly through a VMS using ONVIF.

  • Zenitel Audio Presence - crystal clear audio
  • Protected from dust and Water - IP66
  • Speaker-as-mic Technology
  • External RJ45 connection
  • Max. SPL: 120 dBA (1m)
  • Ideal for Micro Zone PA and systems that require a limited number of speakers
  • Each speaker is individually addressable and monitored
  • ONVIF Compatible
  • Remote software upgrade and configuration
  • Relay output for remote control, e.g. doors, signal lamps, gates
  • Powered from the IP network cable using Power over Ethernet (PoE)
GENERAL
  • Codecs    G.711, G.722
  • Effective frequency range    275 - 7000 Hz
  • Continuous SPL (6dB crest Factor)    115 dBA
  • Max. SPL @ 1kHz/1m    120 dBA
  • Output Power (Continuous/Peak)    7.5W/30W
  • IP Rating    IP66
  • Dimension (WxHxD)    253 x 152 x 309 mm
  • Weight    1,85 kg
  • Material, finish    ABS, grey
  • Mounting    Bracket, stainless steel grade 304
  • Material / Color    ABS, grey
  • Boxed Shipping weight
  • Boxed Shipping dims (Width x Height x Depth)
  • NETWORKING AND PROTOCOLS
  • Protocols    IPv4 (with DiffServ), SIP, TCP, UDP, HTTPS, TFTP, RTP, DHCP, SNMP, ONVIF, CCoIP® , NTP
  • LAN protocols    Power over Ethernet (IEEE 802.3 a-f) Network Access Control (IEEE 802.1x)
  • Management and operation    HTTP/HTTPS (Web configuration) DHCP and static IP + IC-EDGE. Remote automatic software upgrade. Centralized monitoring
  • Advanced supervision functions    E.g. network test, tone test, status reports
  • SIP support    RFC 3261 (SIP base standard), RFC 3515 (SIP refer), RFC 2976 (SIP info)
  • DTMF support    RFC 2833, 2976 (SIP info)
HARDWARE
  • Ethernet connector    1 x RJ 45
  • All other connectors    Tool less, spring loaded, vibration proof terminals
  • General inputs and outputs    1x GPIO; 1x mic/line input
  • Output    12mA as LED drivers
  • Change-over relay (NO+COM)    48V nominal, max. 100VDC, 70VAC
  • Power options    PoE
  • PoE (power over Ethernet)    IEEE 802.3af standard, Class 3 (6.49W to 12.95 W)
  • Max current consumption    0.35 A
  • Secondary speaker line out    8 Ohm
ENVIRONMENT AND COMPLIANCES
  • Operating temperature range    -40° to 70° C / -40° to 158 ° F
  • Storage temperature range    -40° to 70° C / -40° to 158 ° F
  • Relative humidity    < 95% not condensing
  • EMC    CE and FCC Part 15
  • IP Rating    IP66
  • IK Rating    IK08
OTHER SPECIFICATIONS
  • System boot time    Under 10 seconds
  • IP address information    Speaks IP address after system boot (requires connected loudspeaker)
  • Country of manufacture    Norway
  • DIN-rail clips    Wago 209 (included)
  • Warranty    2 Years standard warranty, extendible up to total of 5 years (additional fee)
