James QXC10S-R 10" Round Sub

Product Code: SO-QXC10S-R

Brand
James
RRP $4,345.00


Quantity In Cart: 0
Unit of Measure
EACH



Technical Specifications
Brands James Loudspeaker
Size 10"
Speaker Type Subwoofer

QXC10S-R

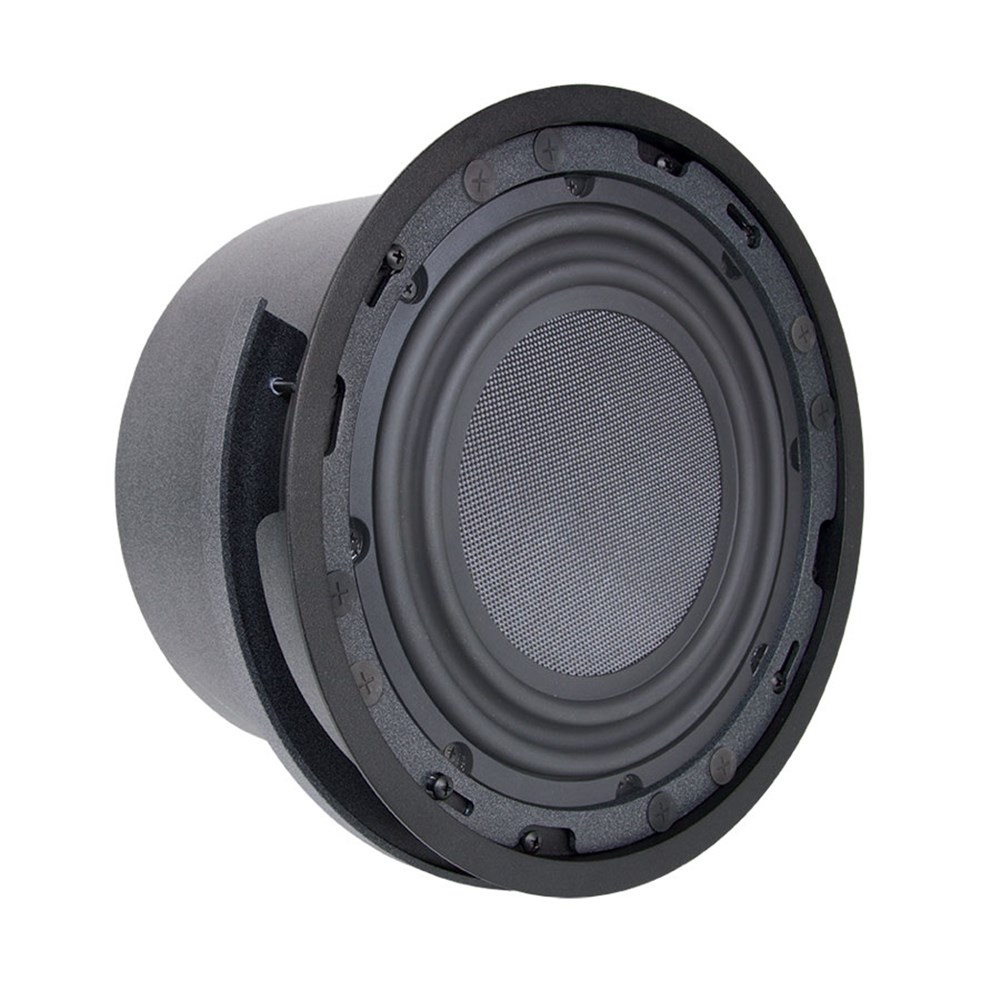

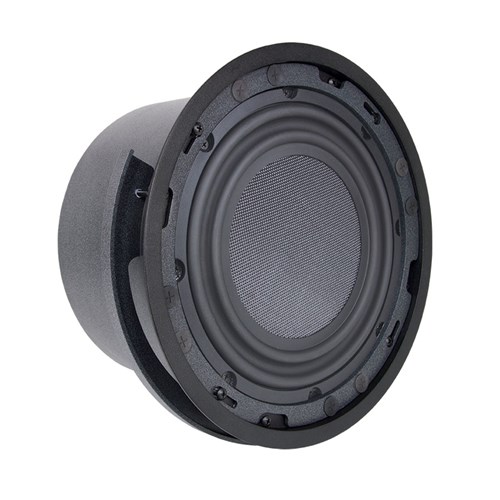

10” Ceiling Subwoofer w/ Magnetic Grille

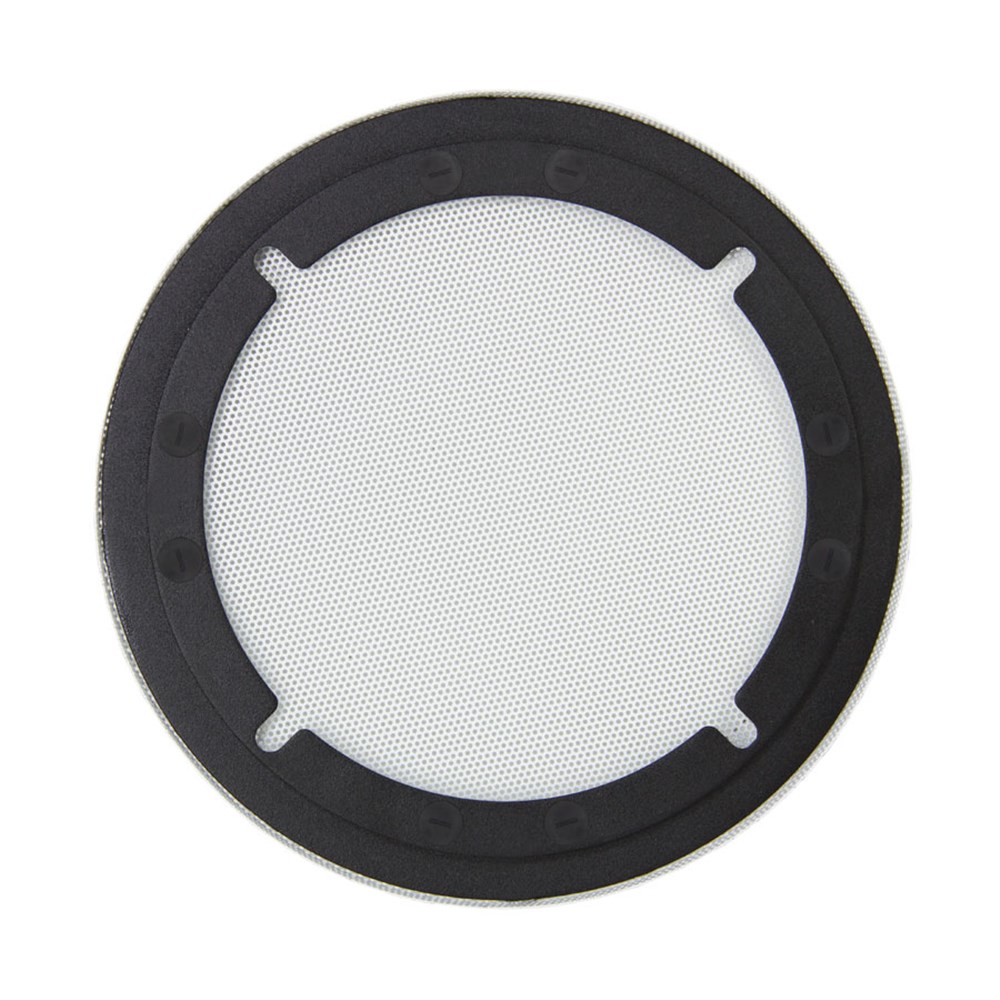

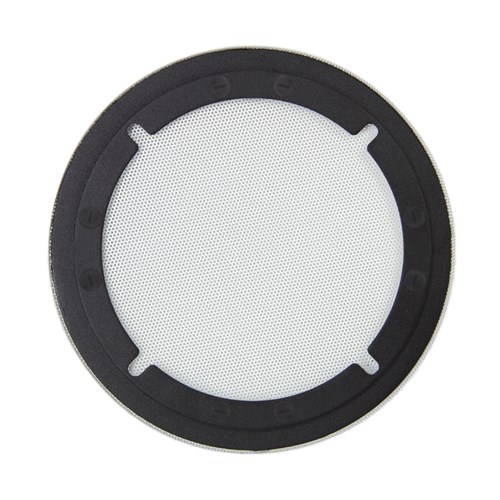

New magnetic grille.
New "twist-in" speaker-to-frame installation.


The QXC10S is one of a variety of options in James Loudspeaker’s series of in ceiling subwoofers. Designed to
pair with QXC or SXC satellite speakers, these subs are the perfect augmentation to your in-ceiling audio
system, providing the deep, powerful bass other in-ceiling speakers cannot. Featuring a new borderless
aluminium grille that sits only 3/16” off the wall—or completely lush with the addition of a pre-construction
board—these subs can be seamlessly integrated into any space, giving them a clean, streamlined appearance.
The QXC series of satellites and subwoofers combine elegant, modern style with James loudspeaker’s
legendary audio performance.

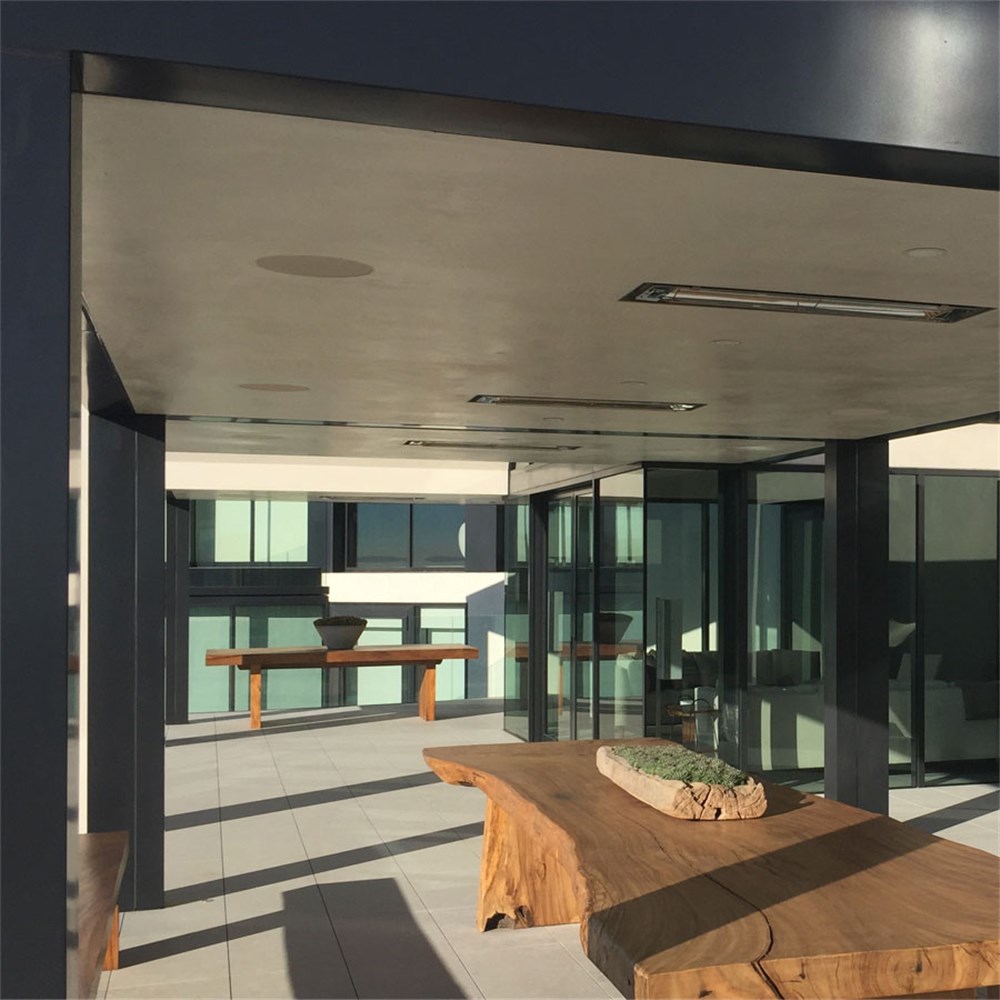

Available for marine and outdoor use with the addition of a severe powder coat. The QXC10S is constructed
entirely from aircraft grade aluminium for strength, sonic performance, and durability. Complete with a white

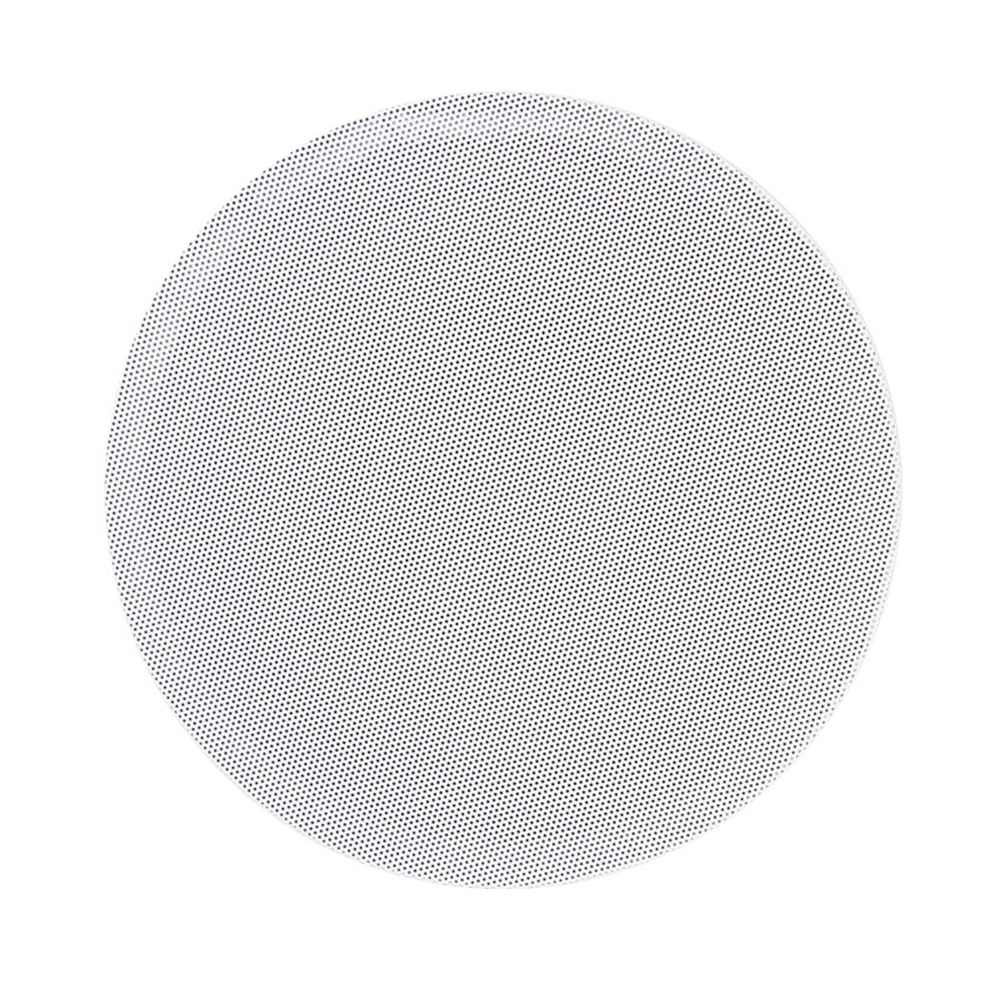

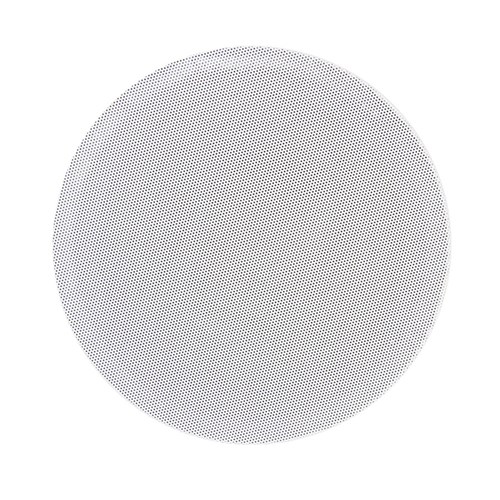

paintable, perforated aluminium grille in either round or square design, this sub can easily be integrated into any
environment, offering a subdued visual effect, designed to be as unobtrusive as possible.

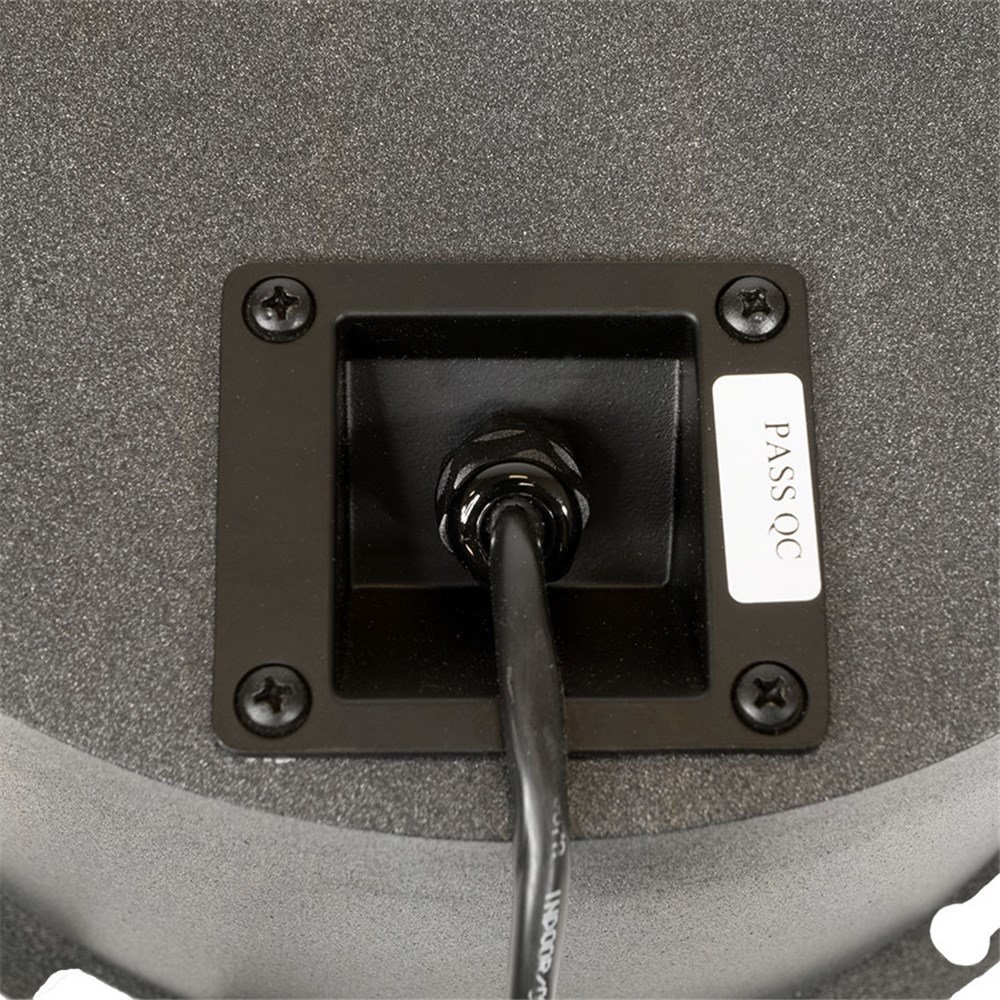

For marine/outdoor use, order the QXC10S-RM or QXC10S-SM


  • Frequency Response 35-120Hz ±3dB
  • Nominal Impedance 8 ohm
  • Sensitivity 87dB 2.83V / 1
  • Cutout 303.5mm
  • Recommended Power Range 150W - 500W
  • Woofer (1) 10" (254mm) Active
  • Enclosure Aircraft Marine Grade Aluminium
  • Finishes White Paintable Grille
  • Dimensions 321mm x 191mm deep


Specifications

  • Frequency Response:  35-120Hz ±3dB
  • Nominal Impedance: 8 ohm
  • Sensitivity: 87dB 2.83V/1m
  • Recommended Power Range: 150W - 500W
  • Woofer: (1) 10" (254mm) Active
  • Enclosure: Aircraft Marine Grade Aluminum
  • Finishes: White Paintable Grille
  • Cutout: 11.950”
  • Required Mounting Depth: 7.5 in (190.50 mm)
  • Width: 12.64 in (321.06 mm)
  • Depth: 7.5 in (190.50 mm)
  • Height: 12.64 in (321.06 mm)
  • Net Weight: 13 lbs (5.90 kg)
  • Shipping Weight: 15 lbs (6.80 kg)

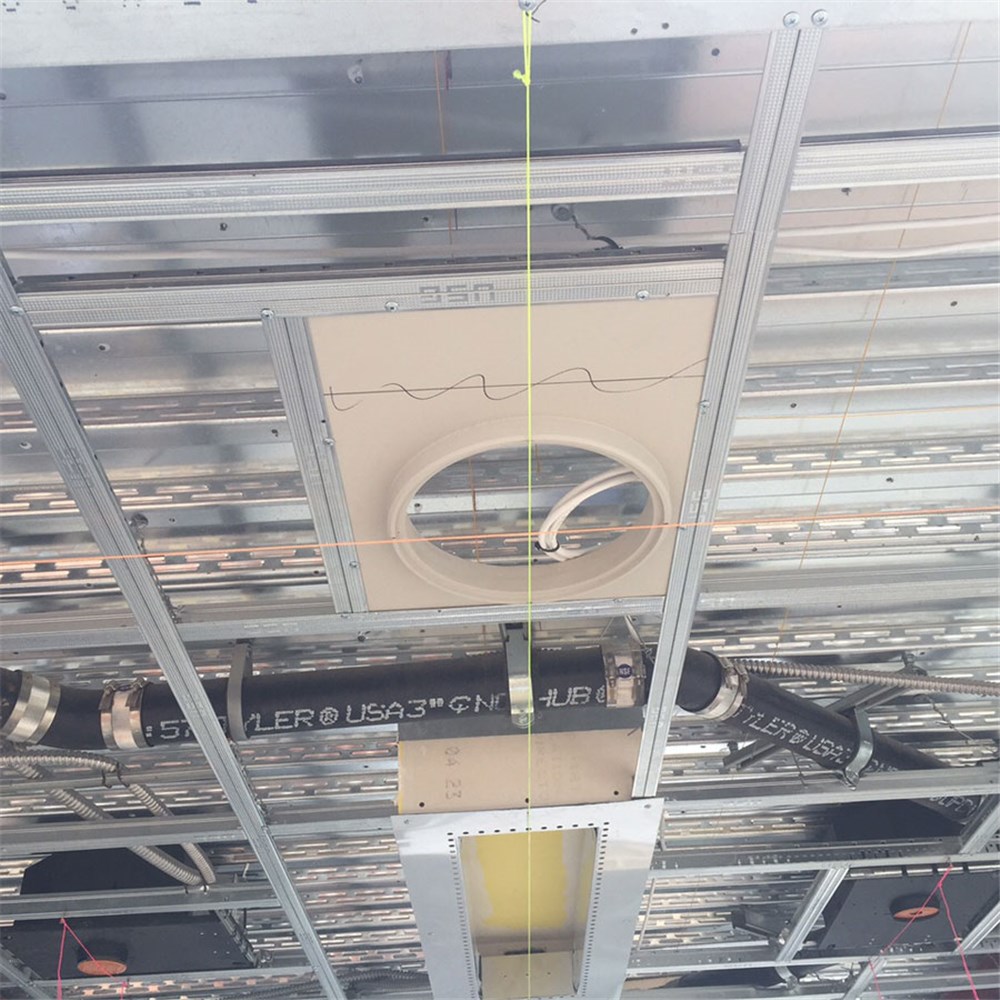

  • Preconstruction Board (PCB): QXC10SPB
  • Flush Mount Preconstruction Board (PCBF): QXC10S-R-PBF/QXC10S-S-PBF
