  • JBL Stage 2 - 6.5" Stereo (Ea) In-Ceiling Stereo Summing 2 x 1" Aluminium Dome Tweeter
This is a Special Order Item

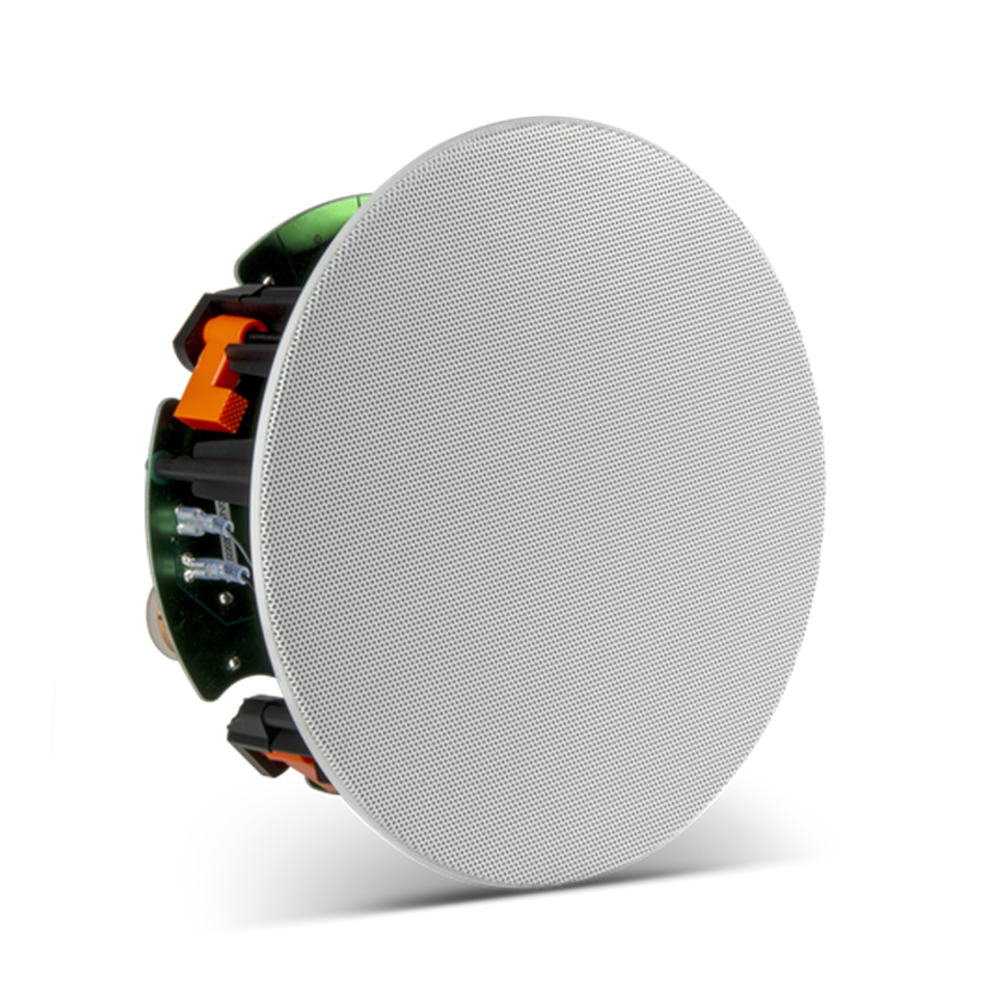

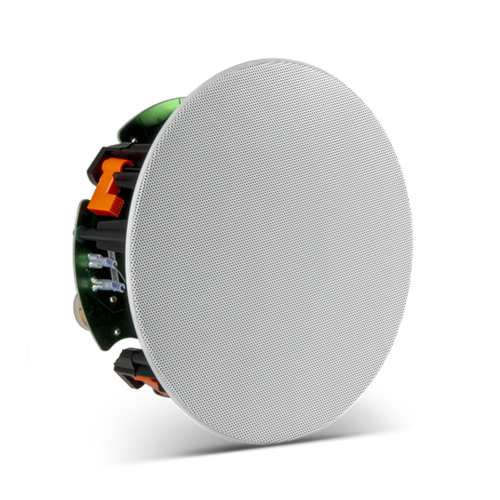

JBL Stage 2 - 6.5" Stereo (Ea) In-Ceiling Stereo Summing 2 x 1" Aluminium Dome Tweeter

Product Code: JB-STG-CI260CDT

Brand
JBL
RRP $449.00


Quantity In Cart: 0
Unit of Measure
EACH



Technical Specifications
Brands JBL
Series Stage 2 Series
Size 6.5"
Speaker Type In-ceiling

Stage 260CDT

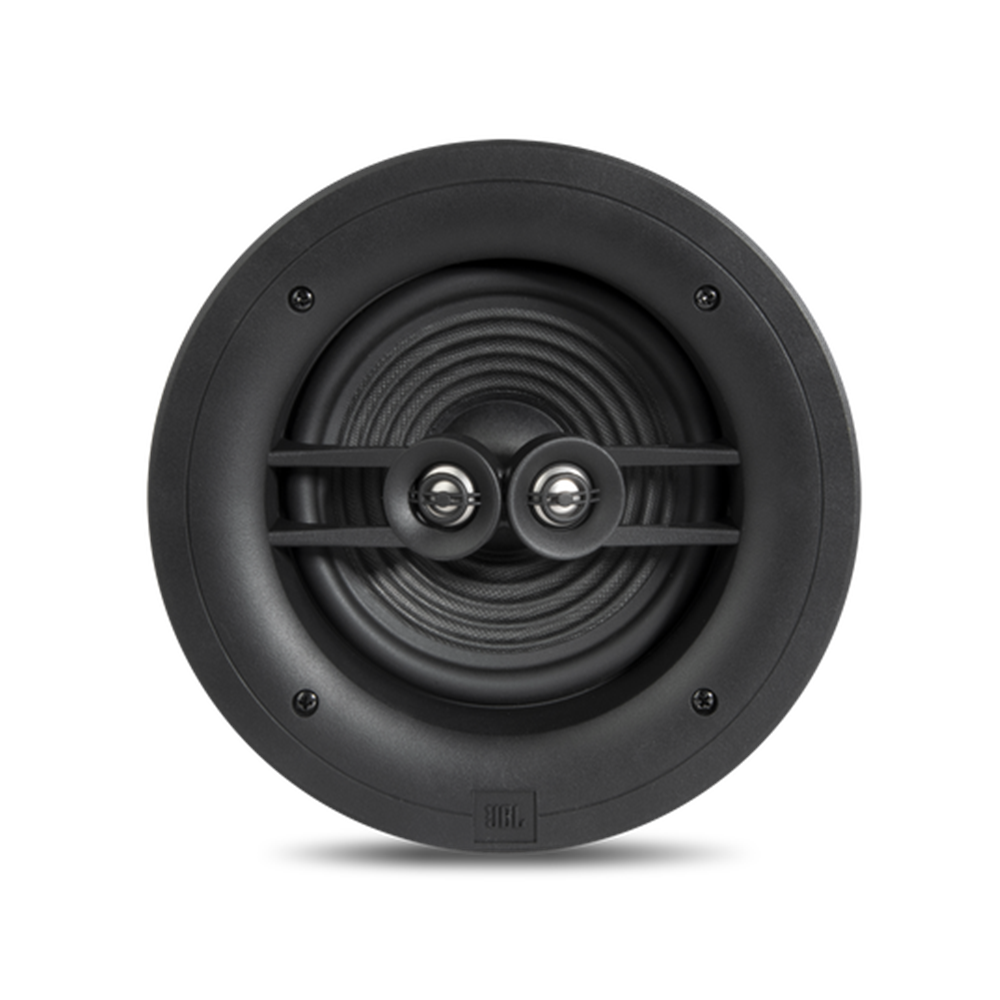

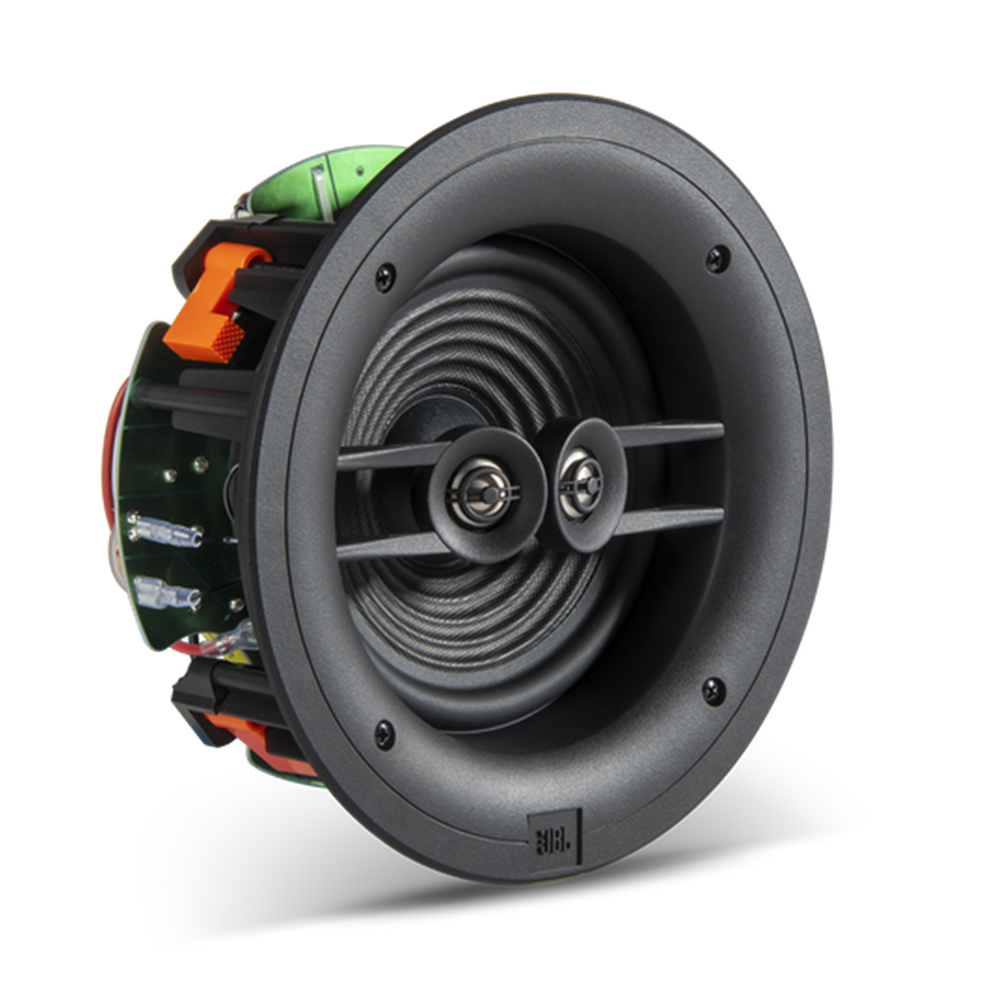

2-way 6.5in (166mm) Dual Tweeter In-Ceiling Loudspeaker

Featuring Dual 3/4" (19mm) Aluminum dome tweeters and a dual voice coil 6.5" (165mm) woofer, the Stage 260CDT delivers stereo sound from a single speaker. A visually discrete zero bezel grille and easy installation allow these speakers to be heard and not seen. Elements including baffles with acoustic smoothing and acoustic lens tweeters have been incorporated into the design to ensure that the sound is clear and accurate.

  • Dual 3/4" (19mm) Aluminum domes with acoustic lens waveguides
  • 6.5" (165mm) Polycellulose cone woofer

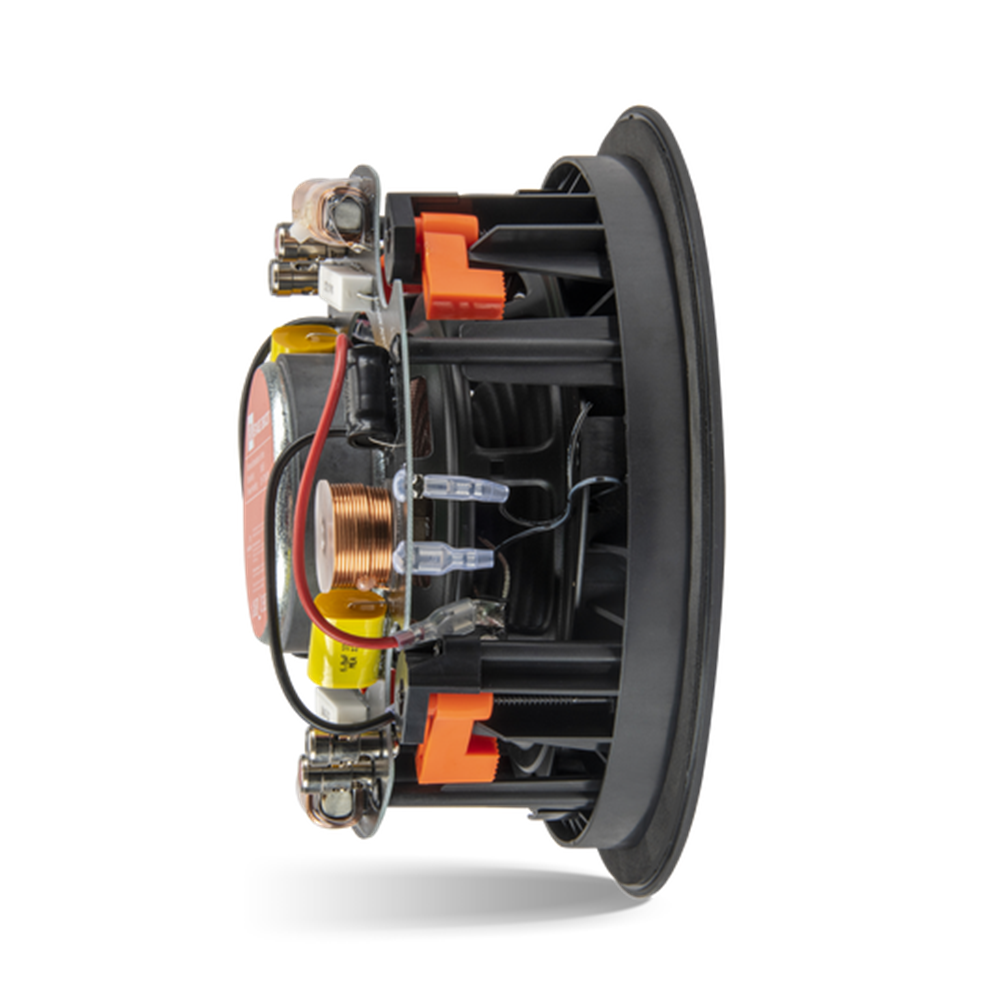

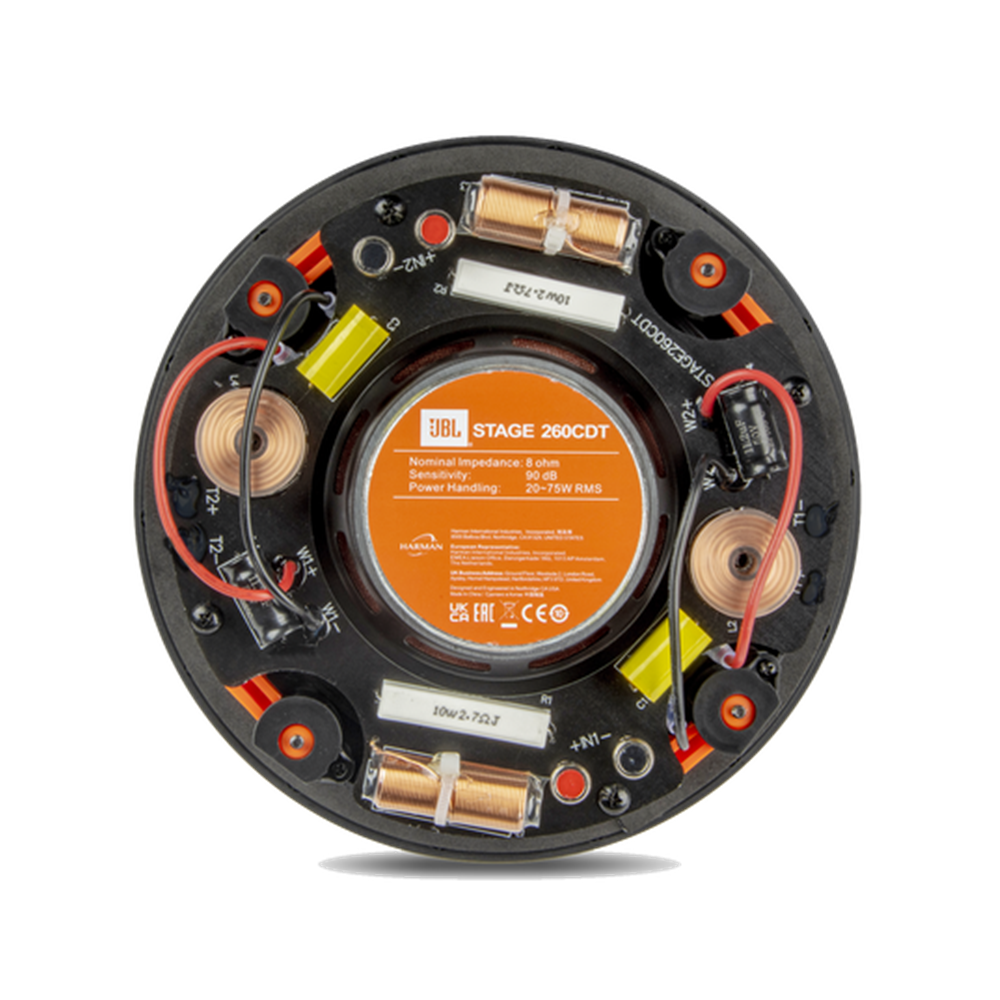

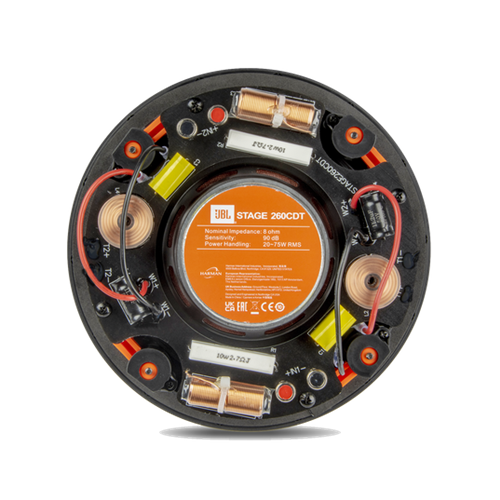

  • Premium air-core inductors and mylar cap capacitor crossover network components ensure that sound remains dynamic at all listening levels.
  • Rigid baffle design with acoustic smoothing for improved transducer integration
  • XL-2 installation system compatible with up to 2" (50mm) thick wall/ceiling material
  • Zero bezel metal grille installs flush to wall or ceiling for a clean, inconspicuous appearance

Specifications

  • High Frequency Transducer: Dual 3/4" (20mm) Aluminum dome with Acoustic Lens
  • Low Frequency Transducer: Dual VC 6.5" (165mm) Polycellulose cone woofer
  • Recommended Amplifier Power (Full Range): 20-75W RMS
  • Frequency Response: 50Hz-25kHz (-6dB on-axis)
  • Sensitivity (2.83V@1m): 90dB
  • Nominal Impedance: 8ohm
  • Crossover Frequency: 2900Hz
  • Inputs: Nickel-plated spring-loaded connectors
  • Grille Dimensions: Dia 9.2in (233mm)
  • Cutout Dimensions: Dia 8in (203mm)
  • Mounting Depth: 4.2in (106mm)
  • Product Weight (Kg): 2.2Kg
  • Shipping Carton Dimensions: L 11in (280mm) x W 11in (280mm) x H 5.4in (136mm)
  • Shipping Carton Weight: 6.22lbs (2.82Kg)
