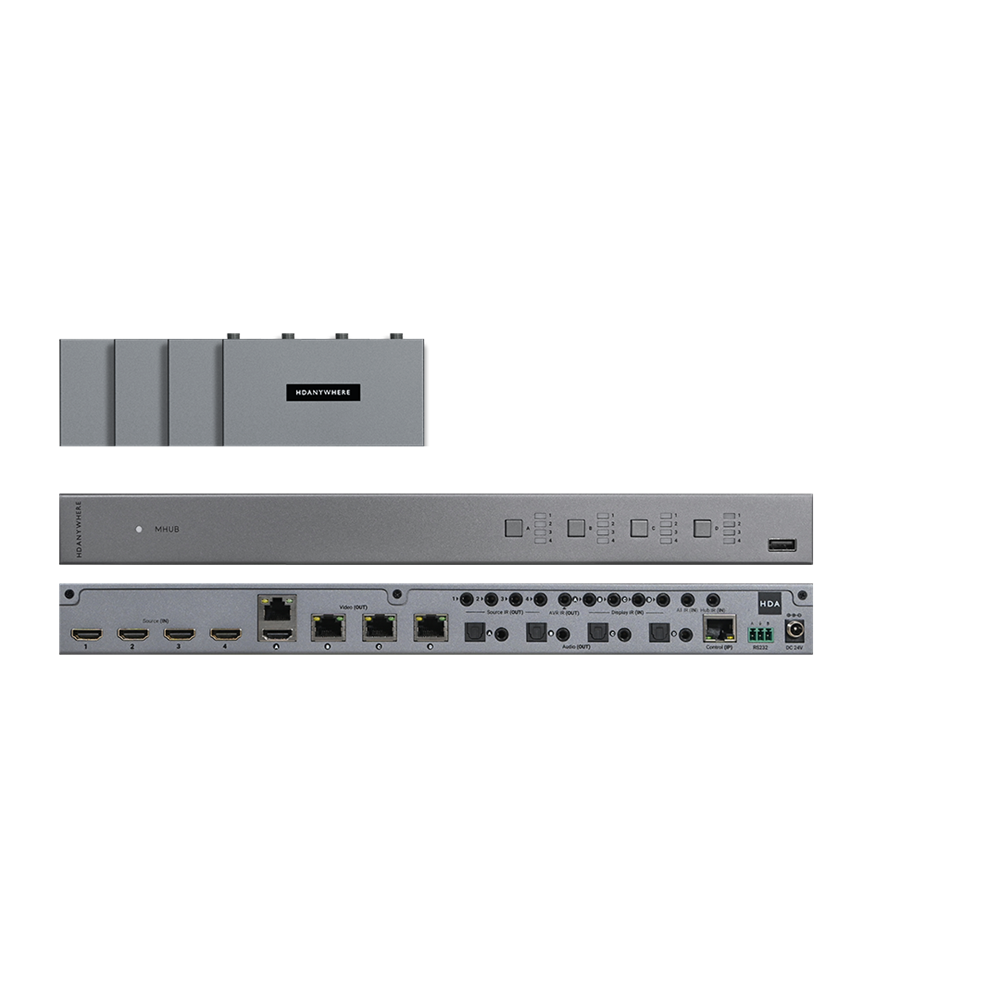

MHUB ( 4 x 4 ) 100A 4 x 4 4K 100m / 1080p 150m HDANYWHERE

Product Code: HA-MHUB44100A

Brand
HD Anywhere
RRP $3,900.00


Quantity In Cart:
Unit of Measure
EACH



2 Year
Technical Specifications
Brands HDAnywhere
Input/output type HDMI
  • Details
  • Downloads
  • Where to Buy
  • Ordering

The new MHUB44100A features trickle-down technology from our premium MHUB S and PRO systems and uses
HDBaseT to provide uncompromised video performance and control capabilities. Supporting 100 metres
transmission of 4K or 150 metres at 1080P range, this represents a 150% transmission distance increase,
compared to older MHUB models

  • MHUB44100A : great value high performance 4 x 4 matrix.
  • 4 x HDMI inputs supporting up to 18Gbps.
  • 4 x RJ45 HDBaseT outputs , 1 x HDMI Output ( Mirror ) Downscaling on all outputs
  • 4 x Optical + 4 x 3.5mm Stereo audio outputs – line level ( Pre out ) volume control
  • 4 x Display HDBaseT receivers powered via PoH included.
  • HDBaseT outputs UHD 4K 18Gbps to 100m 1080p to 150m
  • Auto Down scaling on all outputs + CEC
  • Multi-channel digital audio support up to and including Dolby/Atmos and DTS:X
  • Web GUI for easy config and setup (uControl Inside)
  • Remote system monitoring (HDA Cloud)
  • Hub Control – uOS web GUI, IR, TCP/IP, RS232, App
  • uControl App - Full control over sources, matrix hub & display functions.
  • Dimensions ( W x D x H ) HUB: 372 x 165 x 36mm – without feet. Rx : 140 x 65 x 18mm



Specification

  • Video & audio IO
    • MHUB66100A
      • Inputs: x6 HDMI / Outputs: x6 HDBaseT, x2 HDMI (Mirror), x6 Optical, x6 3.5mm Stereo
    • MHUB44100A
      • Inputs: x4 HDMI / Outputs: x4 HDBaseT, x1 HDMI (Mirror), x4 Optical, x4 3.5mm Stereo
  • Video bandwidth    18Gbps
  • Video resolution    Up to 4K@60Hz (4:4:4) with HDR
  • Colour space    RGB, YCbCr 4:4:4, YUV 4:4:4, YCbCr 4:2:2/4:2:0
  • Colour depth
    • 8-bit, 10-bit, 12-bit (1080p@60Hz)
    • 8-bit (4K@60Hz)
    • 10-bit, 12-bit (4K@60Hz YCbCr 4:2:2/4:2:0)
  • HDR formats    HDR10, HDR10+, Dolby Vision, HLG**
  • Transmission distance    1080p (150m / 492ft), 4K 100m / 394ft
  • HDMI audio formats    PCM 2.0 / 5.1 / 7.1, Dolby Digital / Plus / EX, Dolby True HD, DTS, DTS-EX, DTS-96 / 24, DTS High Res, DTS-HD Master Audio, DSD
  • Audio extraction    Optical: PCM 2.0, Dolby Digital, DTS 5.1 3.5mm Stereo: LPCM 2Ch
  • Stereo audio formats    PCM 2.0 44.1 / 48 / 88.2 / 96 / 176.4 / 192KHz, 16 / 20 / 24bit
  • Output gain (1dB steps)    -12dBu — +12dBu
  • Max output level    -55dB — 0dB
  • Dimensions (W/D/H) mm
    • MHUB66100A
      • Chassis: 440 x 226 x 44
    • MHUB44100A
      • Chassis: 372 x 165 x 36
    • Display receiver: 140 x 65 x 18
  • Weight (g)
    • MHUB66100A
      • Chassis: 3025, Receiver: 126
    • MHUB44100A
      • Chassis: 1631, Receiver: 126
