Product nameOchno Power Conference 4 Node
ModelO-PC-4-NODE
ContentsMain unit. power adapter, mounting brackets, manual.
Warranty3 years
Dimensions150 x 65 x 33 mm,
Weight380g
Regulatory approvalsCE, FCC, RoHS, REACH
Safety classIP20, 90% RH
Ambient temperature5° – 40°C.
ProtectionOver-current, over-voltage, over-temperature

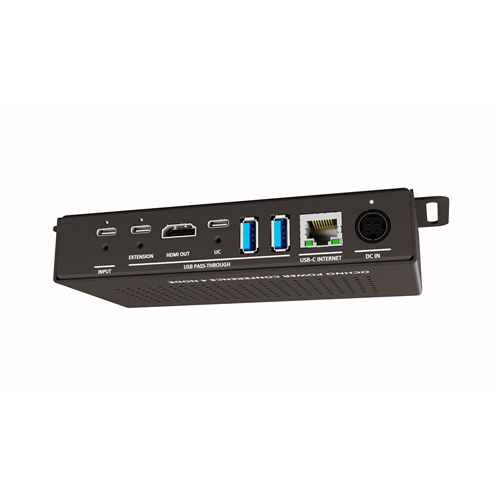

USB-C Input Port1 x USB Type-C USB 3.2 Gen 2. Speed up to 10 Gbps. Up to 20V / 5A / 100W power supply. DP alt-mode 1.4 video input.
USB-C Extension portDP alt-mode 1.4 video output, 2 or 4 DP lanes. Max resolution 2 x 4k 60hz at 4 lanes. Up to 32 Gbps video output. USB 3.2 Gen 2, speed up to 10 Gbps.
HDMI OutHDMI 2.1 video output. Max resolution 8k 60Hz. Up to 32 Gbps video output.
USB-C Dual Role Port1 x USB 3.2 Gen 2 Port. Speed up to 10 Gbps. Can connect both usb devices and usb hosts.
USB-A Ports2 x USB 3.2 Gen 2 Ports. Speed up to 10 Gbps. 5V / 0.9A power supply.
RJ45100/1000 Mbit/s Ethernet connectivity to Ethernet-sharing via USB-C ports.
DC INIncluded: 60W 12V / 5A power supply input.Optional: 200W 20V / 10A power supply input.
ManagementO-PC-4-NODE is fully managable via connected O-PC-4, either locally using Ochno Management Console or Ochno Operated.
USB-C InternetThe network connected to the USB-C Internet port is shared via USB to the activly selected USB-C port. This allow the user to get network access without the need for using WIFI.
USB Pass-throughThe 2 USB-A ports and 2 USB-C ports are normally used to connected USB device to. These devices will be made available to either the USB-C Input port or the Dual Role USB-C port in the case of Windows-based UC-systems.

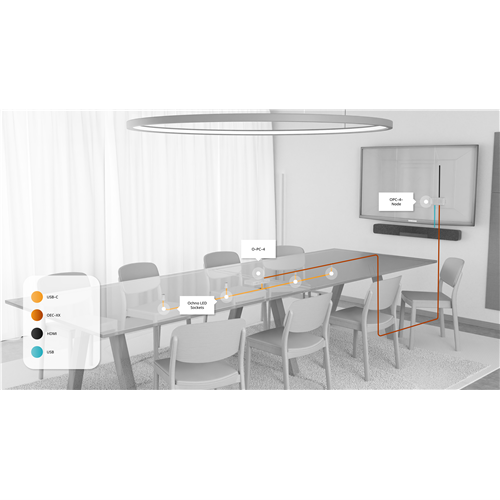

ExtensionThe extension port can send both video and USB-communication to a downstream USB-C device which could be another O-PC-4-NODE, an O-PC-4, a device that supports USB-C upstream or a standard USB-C to HDMI-adapter.
Video outO-PC-4 has an internal DP MST hub which allows for dual video output and a Windows laptop can select “Extend Desktop” to show different contant on each display. For installations with two HDMI displays, a USB-C to HDMI-adapter can be inserted into the Extension port to get a secondary HDMI out. Apple MacBooks will replicate the same image on both displays.
Charging and USB PowerO-PC-4-NODE is shipped with a 60W power supply which provides 5V/3A output on all USB-C ports and 5V/1A output on USB-A ports. Alternativly, a 200W power supply can be used and then USB-C Input and USB-C Extension ports can provide up to 100W power output.
