  • REVEL C563DT 6 1/2" In-Ceiling Dual Tweeter 2-Way MCC Frame RVC563DT
This is a Special Order Item

REVEL C563DT 6 1/2" In-Ceiling Dual Tweeter 2-Way MCC Frame RVC563DT

Product Code: RE-ARCC563DT

Brand
Revel
RRP $699.00


Quantity In Cart: 0
Unit of Measure
EACH



Technical Specifications
Brands Revel
Series Architectural Series
Size 6.5"
Speaker Type In-ceiling

C563DT - 6-1/2" Dual-Tweeter In-ceiling Loudspeaker

Revel in-ceiling loudspeakers draw upon the same research, resources, and unique perspectives that put all our loudspeakers in a class by themselves. Each model offers a standard-setting low sonic coloration and freedom from distortion over a wide dynamic range.

C563DT Highlights

  • Long-throw woofers with cast frames and rubber surrounds provide high output with low distortion
  • 1-inch (25mm) angle-adjustable, metal-dome tweeter with an integrated waveguide provides optimized response both on and off axis

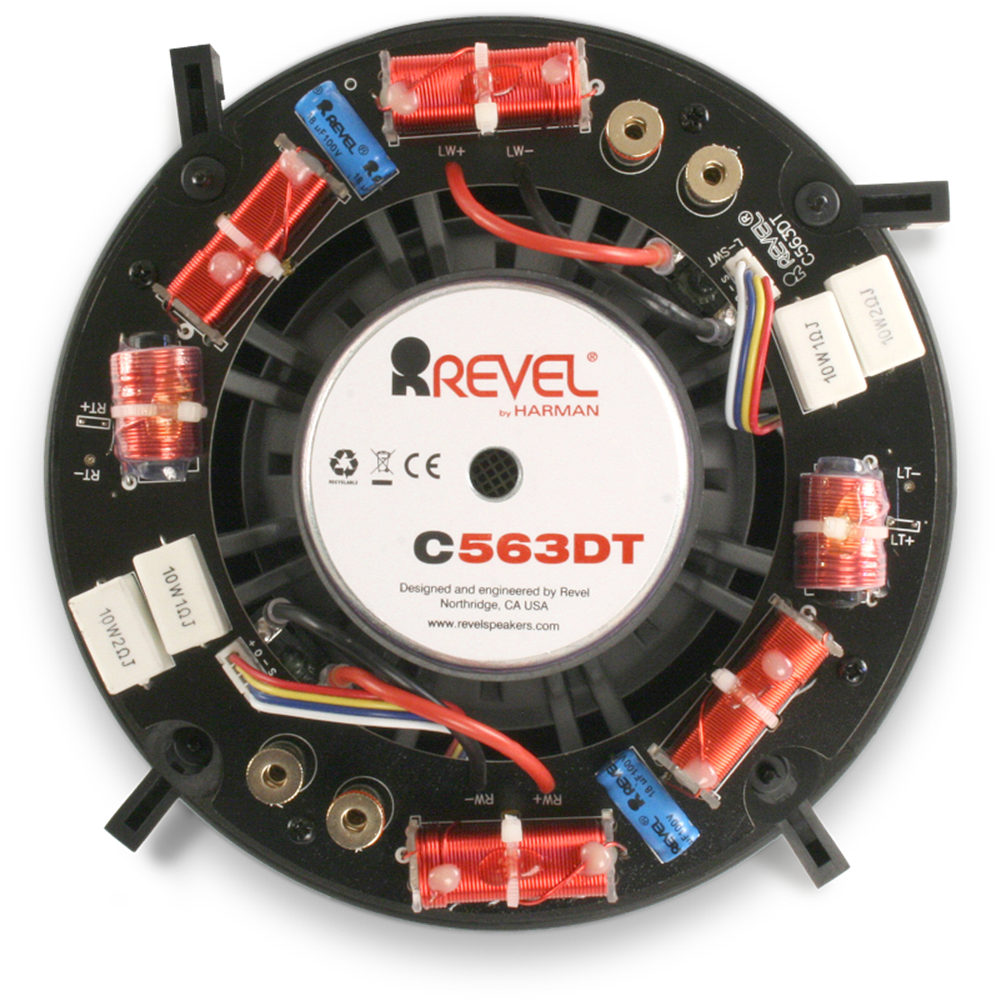

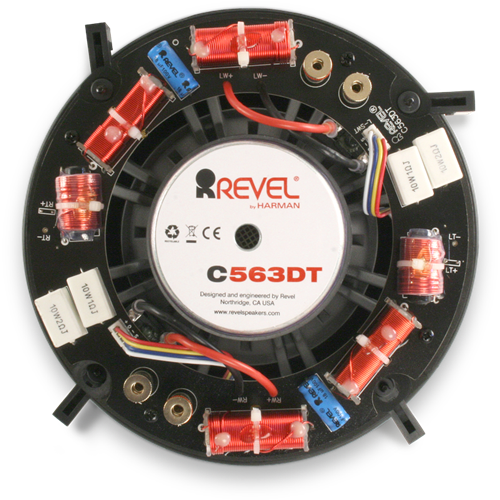

  • High-order crossover network with premium-quality components delivers extraordinarily accurate timbre reproduction
  • Boundary compensation switch (C783/C763) lets you adjust the speaker to maintain tonal accuracy when the speaker is placed near a wall
  • Three-position tweeter level control (C783/C763/C583/C563) lets you adjust for optimum response in a variety of acoustical environments, or for using the speakers without grilles

General Specifications

  • Height    Cutout dimensions (dia.) 8" (20.3 cm) Square grille finished Height 9.1" (23.1 cm)
  • Width    Square grille finished Weight 9.1" (23.1 cm
  • Depth    Mounting depth 4.9” (12.5 cm)
  • Weight    2.2 lb (1 kg) / Shipping weight 3 lb (1.4 kg)

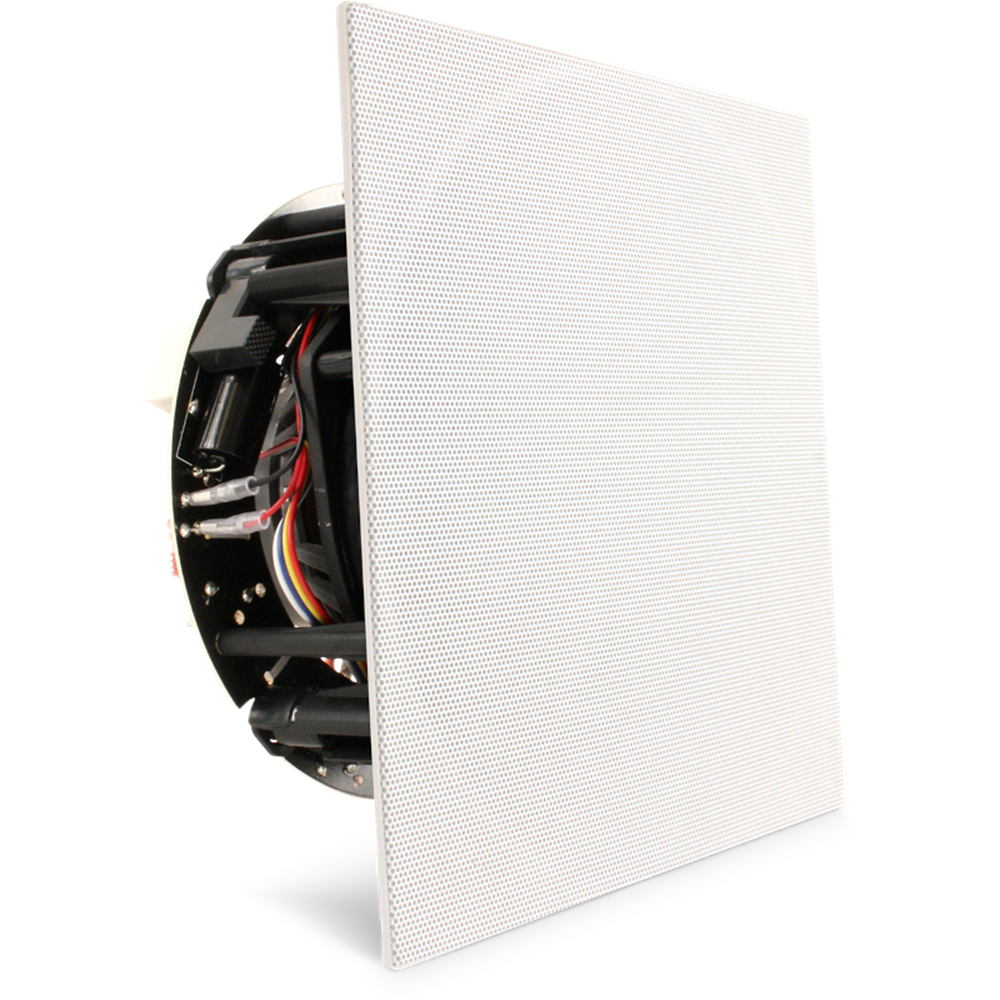

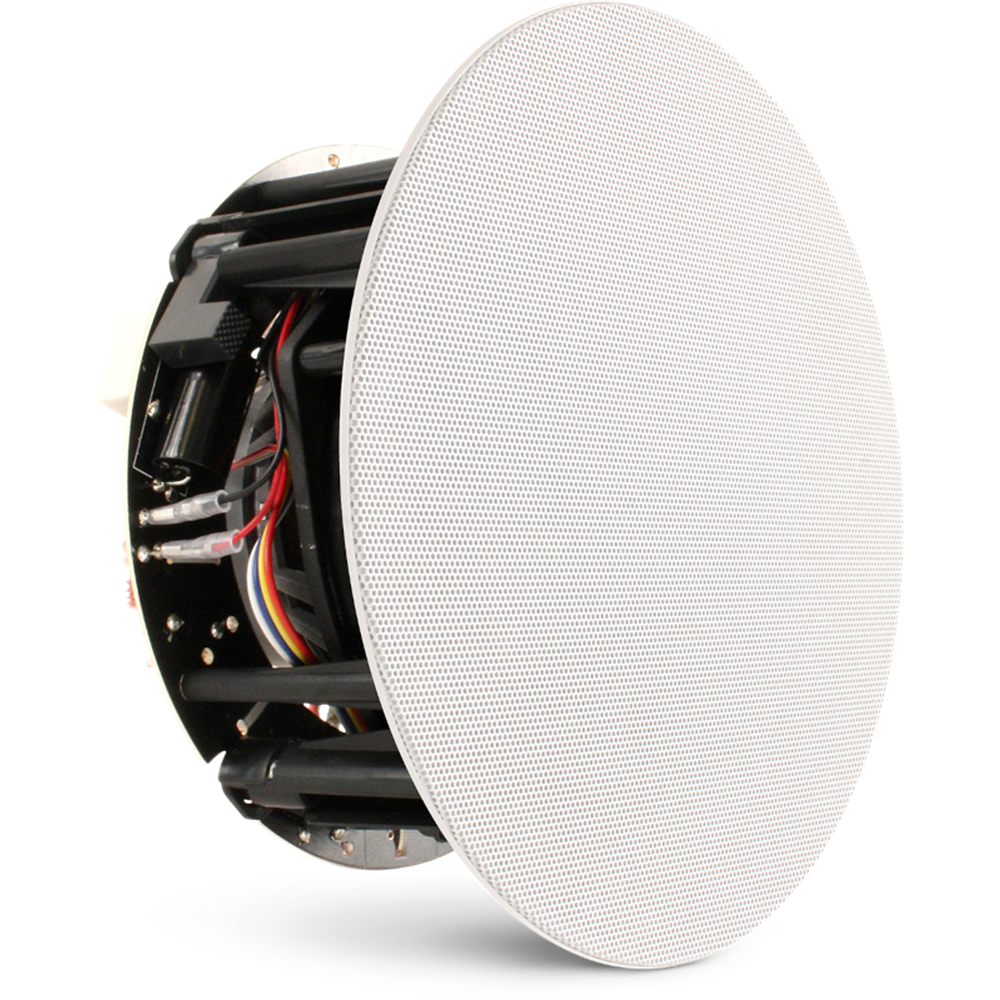

  • Features    Includes both round and square zero-bezel magnetic grilles • Round grille finished dimension (dia.) 9.1" (23.1 cm) •
  • High Frequency Driver Components    Two 1" aluminum dome tweeters with waveguides
  • Low Frequency Extension    High Frequency Extension 3-position HF level control
  • Low Frequency Driver Components    6 ½" Micro-Ceramic Composite (MCC) Cone, Cast-Aluminum Frame Woofer
  • Mounting    C-2 fastening mechanism • Compatible with wall material thickness range 0.5" – 2.0" (1.3 cm – 5.0 cm)
  • Recommended Amplifier Power    10 - 130 Watts RMS (per channel)
