Sdr6120 & 2 X Sq6100c Kit-B5a CW612 - Amber Tech
Products

Chiayo Electronics

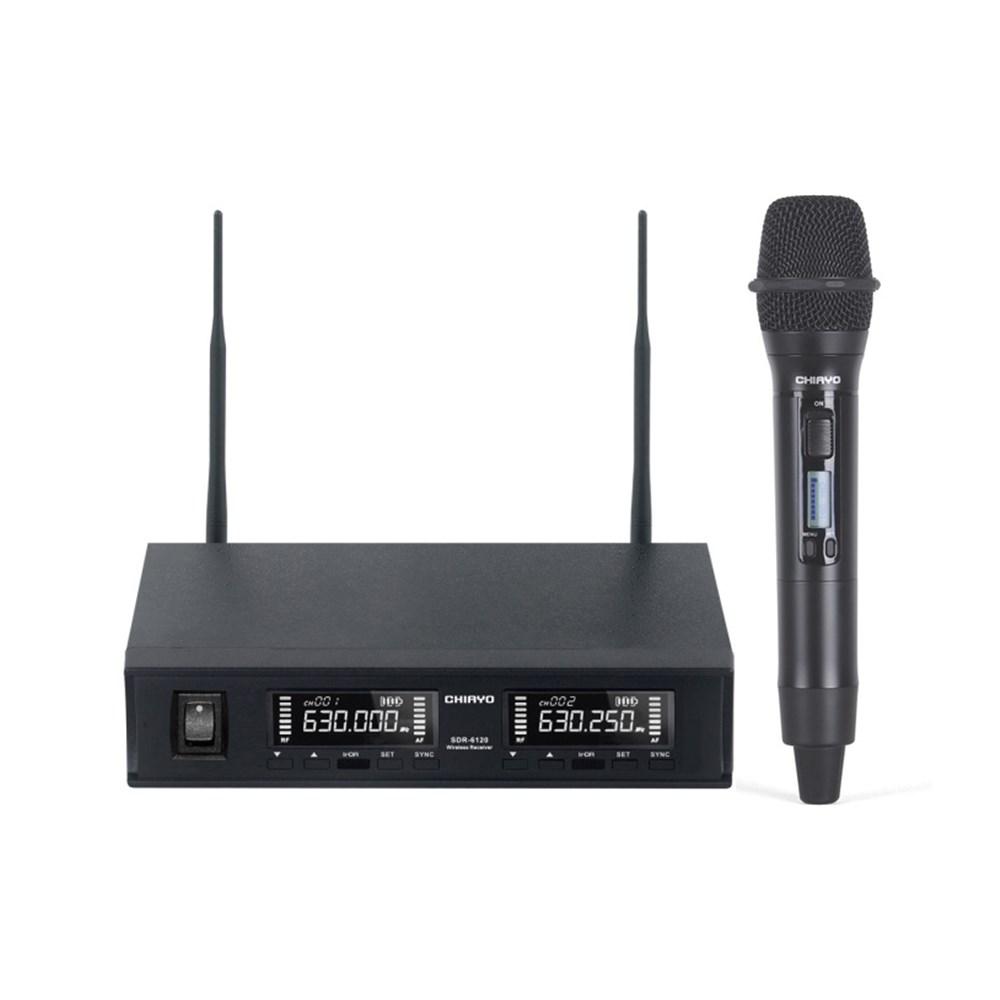

SDR6120 receiver with 2 x SQ6100C hand held transmitters Chiayo

Brand
Chiayo
RRP $1,239.00


Quantity In Cart: 0
Unit of Measure
EACH



Kit Components
Code
Item
Qty
CH-SDR6120-5A
SDR6120 UHF Dual 100 channel diversity receiver Chiayo
1.0
CH-SQ6100C-5A
SQ6100C 100 channel hand held transmitter, metal case condenser capsule.
2.0
Product Options
Technical Specifications
Brands Chiayo Electronics
Microphone Type Wireless Systems

SDR 6120 Receiver

Features

  • EIA Standard 1/2U rack-mountable metal chassis with high contrast LCD display.
  • (Channel, frequency, RF level, AF level, antenna selection and transmitter battery level.)
  • 100 factory preset user-selectable UHF channels.
  • Pilotone and noise-cancelling dual-squelch circuits eliminate noise, interference and reduce signal dropouts.
  • Adjustable SQ. Increases receiver range with higher sensitivity and reduces interference with lower sensitivity.
  • Auto Scan function allows quick search for an interference-free working channel from 100 presets. World-first patented IrDA technology provides rapid and precise 2-way frequency sync between the receiver and transmitter.
  • Receiver provides power for CHIAYO antenna systems to enhance reception range and signal stability.
  • Buttons lockable to prevent unintended adjustment.
  • Single channel audio output jacks: balanced XLR or unbalanced 6.3mm.
  • Mixed audio output jack: unbalanced 6.3mm.


SQ6100C Microphone


FEATURES

  • Pilotone Control.
  • Very low spurious emission passed the stringent CE & FCC regulations.
  • Changeable dynamic or condenser microphone capsule.
  • No handling noise in handheld with condenser capsule.
  • Handheld housing coated with rubberized paint for smooth holding.
  • Low current consumption.
  • Up to 16 hours of operation with 2 AA Alkaline batteries.
  • Color ring on handheld microphone identifies channel.
  • FCC and CE approved.
  • Matching battery charger: HC-30
