Synergy 10 button keypad controller . US back box

Product Code: WY-SYNKEY10

Brand
Wyrestorm
$899.00 inc GST
RRP $899.00

Out of Stock
Increase value Decrease value
Quantity In Cart:
Unit of Measure
EACH



5 Year
Technical Specifications
Brands WyreStorm
Accessory Type Controller
Series Synergy
  • Details
  • Downloads
  • Where to Buy
  • Ordering

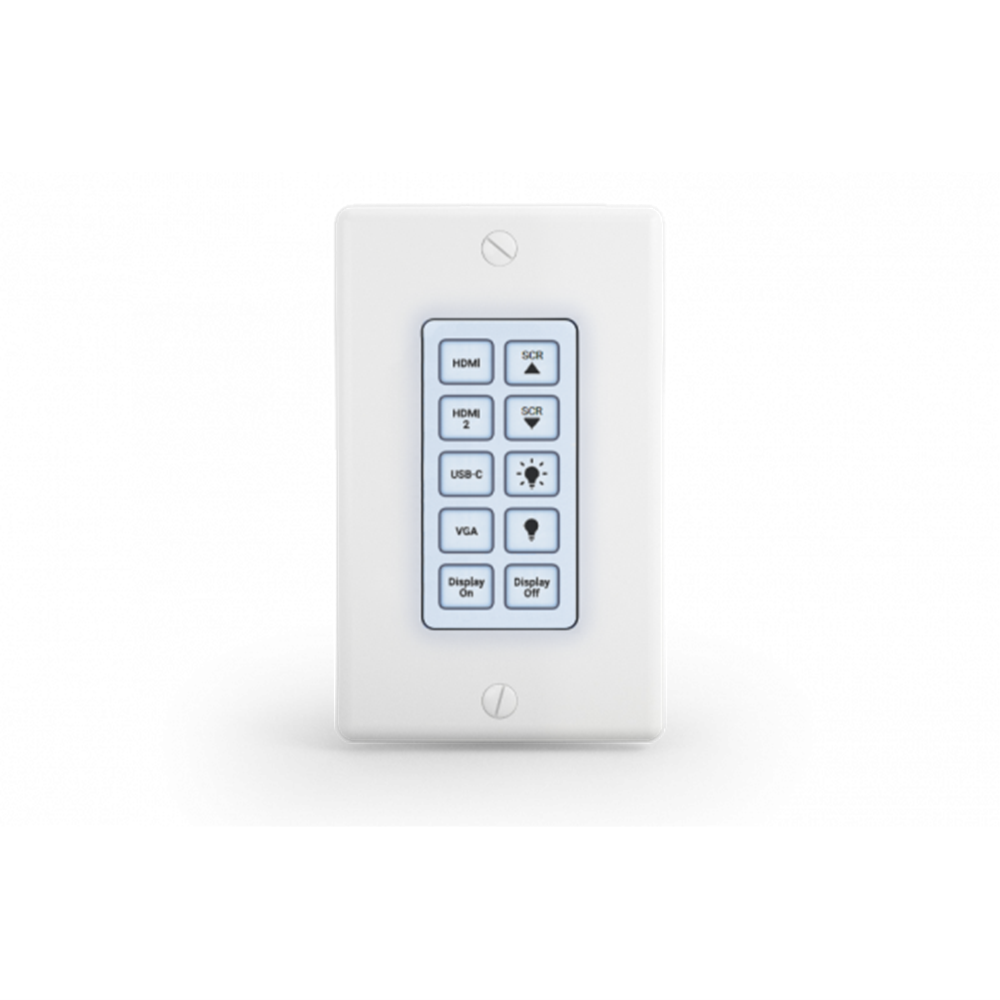

Synergy™ 10-button Keypad Controller

The SYN-KEY10 is a simple single-room single gang RS-232 or IP control Keypad designed to be compatible with our Synergy presentation switchers and other 3rd party devices, to help create a complete solution. Up to 10 customizable keys can be programmed for single-action or multiple-action macro on one button. Build a kit with the SYN-KEY-10 with any of our Synergy products as an all-in-one solution or as a standalone controller for 3rd party devices.

TOTAL SOLUTION
The SYN-KEY10 provides a comprehensive solution for today’s demanding corporate and education applications. Control all aspects of a room ranging from input switching, display power, lighting, shades/blinds, and even create macros which can trigger different scenes in one press.

POE CONVENIENCE
No complicated wiring needed to get started with the SYN-KEY10! You’ll only need one cable to power and deliver commands over single-standard category cable. If no PoE is present in your installation. If no PoE is present in your installation, a 2-pin local power is available.

BUTTON CUSTOMIZATION

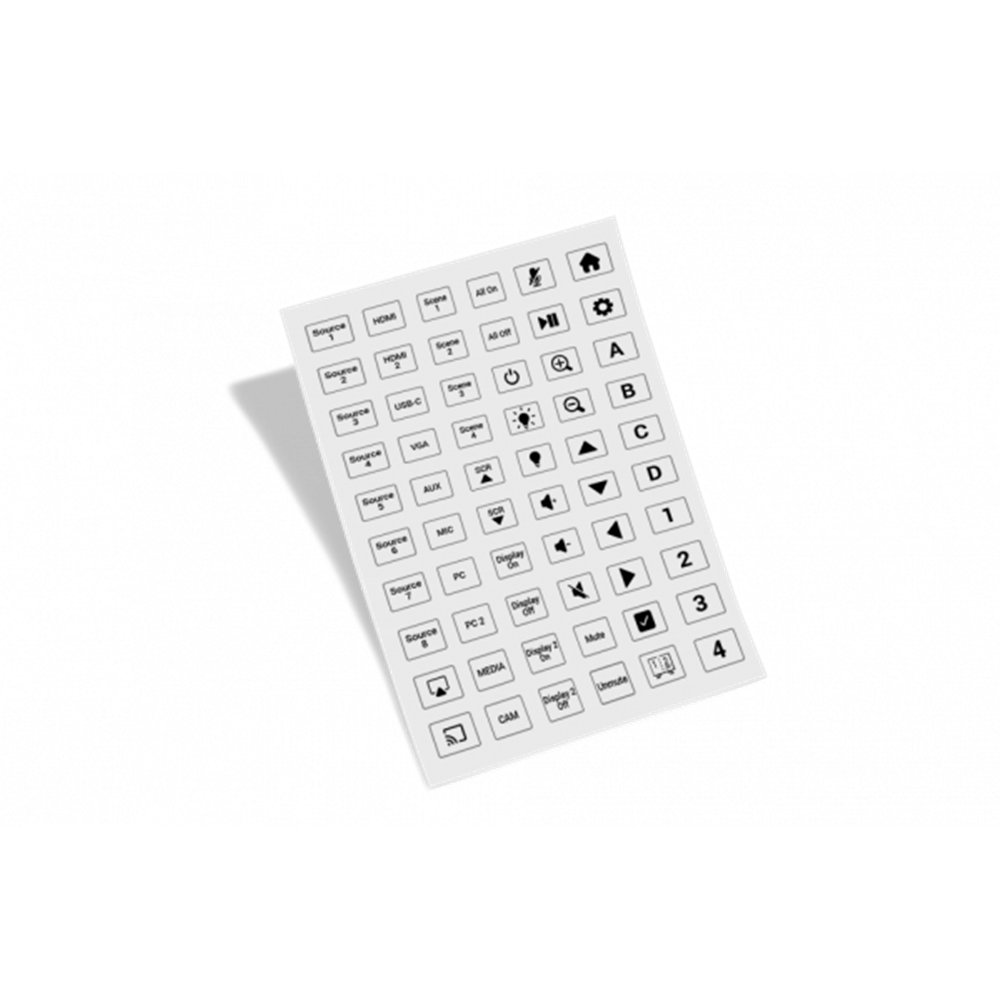

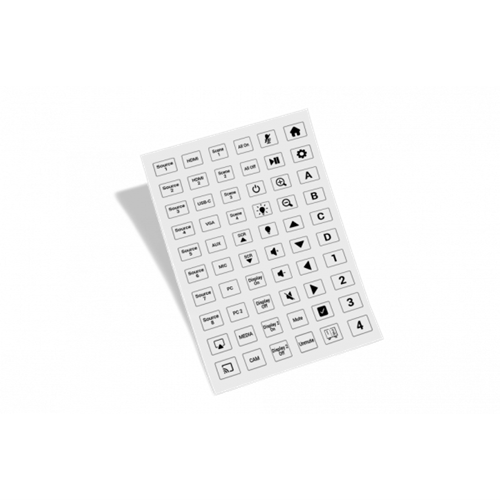

Included are 2 sheets of stickers to cover the SYN-KEY10’s tactile buttons and with pleanty to choose from! They’re strong enough to withstand multiple button touches, but easy to peel off for quick change-outs.

PROVIDED WYRESTORM TEMPLATES
Building a WyreStorm Synergy solution? We have you covered! No need to build your own installation from scratch as we offer a variety of common templates for your convenience. Need to add more? No problem! Easily build off the existing template, saving you time and frustration.


Technical Specifications

PORTS AND BUTTONS

  • Front Panel
    • 10x Programmable Buttons

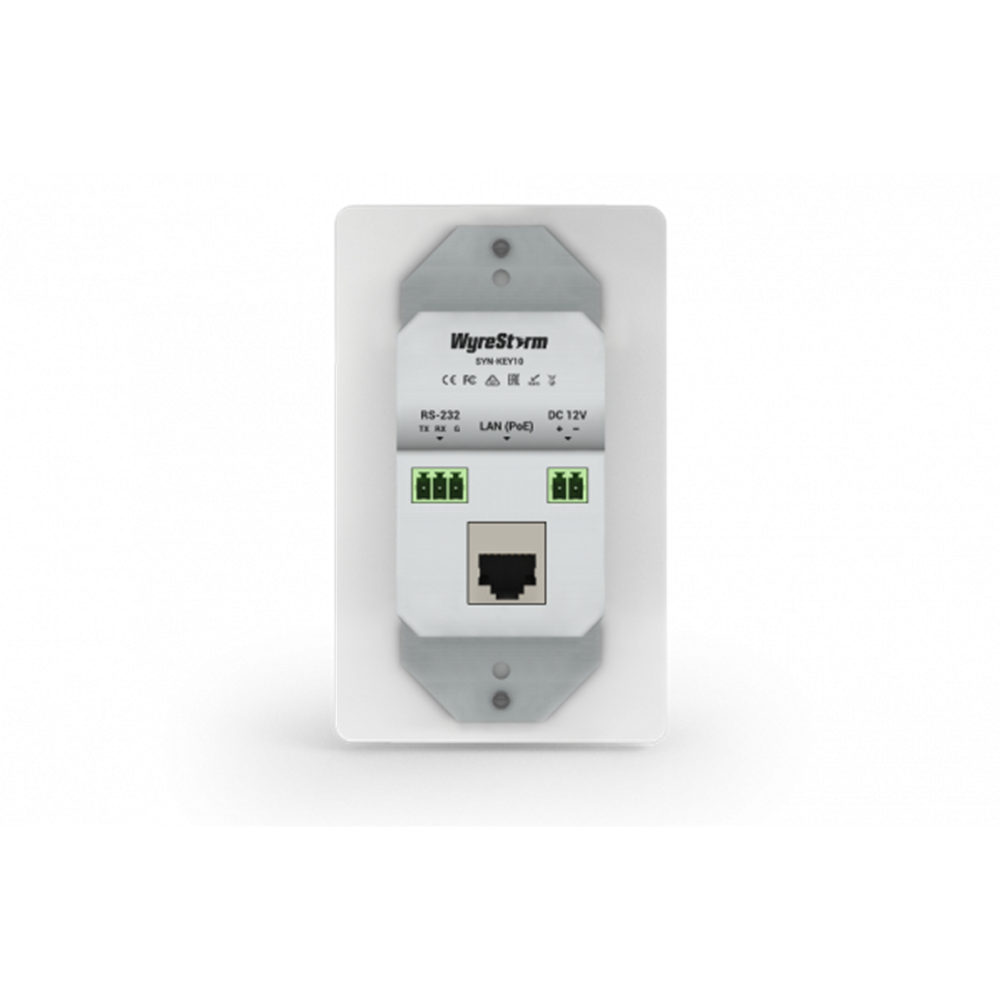

  • Rear Panel
    • 1x LAN (RJ45, PoE)
    • 1x RS-232
    • 1x DC 12V Power In

COMMUNICATION AND CONTROL

  • RS-232
    • 1x 3-Pin Phoenix Connector (Device Only)
  • Ethernet
    • 1x 8-pin RJ-45 female | Unidirectional to Network Switch | 1-way PoE (Switch powers device)

POWER

  • Power Supply
    • 12V DC 0.5A
  • PoE
    • IEEE 802.3af
  • Power Consumption
    • 1.3W

ENVIRONMENTAL

  • Operating Temperature
    • 0 to + 45°C (32 to + 113 °F), 10% to 90%, non-condensing
  • Storage Temperature
    • -20 to +70°C (-4 to + 158 °F), 10% to 90%, non-condensing
  • ESD Protection
    • Human-body Model: ±8kV (Air-gap discharge)/±4kV (Contact discharge)

In the Box

  • 1x SYN-KEY10
  • 1x 1-Gang US Plastic Decora Plates
  • 1x 2-Pin Phoenix Male Connector
  • 1x 3-Pin Phoenix Male Connector
  • 2x 32*20mm Phillip Screws
  • 2x 32*7mm Philips Screws (White Head)
  • 2x Sheets of Pre-printed Button Labels
