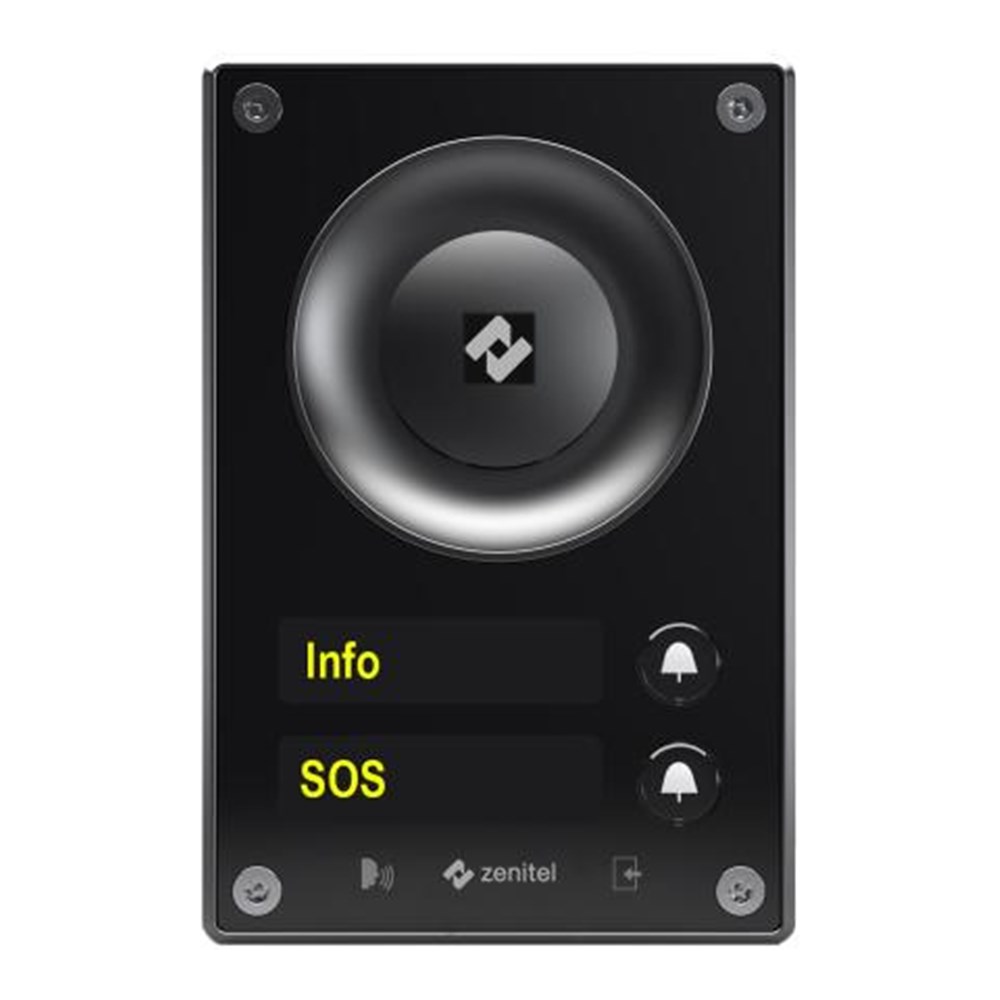

Turbine Compact IP Standard-5 TCIS-5 Zenitel

Product Code: ZE-TCIS-5

Brand
Zenitel
$2,500.00 inc GST
RRP $2,500.00

Out of Stock
Increase value Decrease value
Quantity In Cart:
Unit of Measure
EACH



2 Year
Technical Specifications
Brands Zenitel
  • Details
  • Downloads
  • Where to Buy
  • Ordering

This Intercom station utilizes the latest technology to create unparalleled audio quality. Some of the many features include: HD voice quality, Open Duplex, noise and acoustic echo cancellation, MEMS microphone, a 10W Class D amplifier and our unique speaker grille design. These features, in conjunction with our 70+ years of experience with acoustic technology are only a few of the many factors that contribute to our superior audio quality.

IP and SIP Intercom

  • General-purpose intercom station
  • Black thermoplastic front plate with two labelled call-buttons
  • Powerful audio technology, including high sound pressure, automatic volume gain control, and noise and acoustic echo cancellation
  • IP66 - Dirt, dust and water resistant
  • High impact protection rating
  • ONVIF Compatible
  • Supports wide set of IP and networking standards
AUDIO
  • Internal speaker amplifier    10 W class D
  • Internal speaker    10 W
  • Microphone technology    Digital MEMS, omnidirectional microphone
  • Audio technology    Modes: Full open duplex, switched open duplex
  • Adaptive jitter buffer
  • Custom Ringing Tone
  • Audio Mixing – Conversation and Group Call
  • Automatic gain control (microphone)
  • Sound Level Detection / scream alarm (in AlphaCom mode)
  • Codecs    G.711, G.722, G.729
  • Frequency range, G.722 Codec    200 Hz – 7000 Hz
  • SPL peak power at 1m in open duplex    95 dB
  • SPL peak power at 1m in half duplex    105 dB
  • SPL peak power at 1m in program distribution and announcements    105 dB
  • Noise cancelling    Yes
  • Automatic Volume Control (AVC)    Yes
  • Acustic Echo Cancellation (AEC)    Yes
HARDWARE
  • Ethernet connector    1 x RJ 45
  • All other connectors    Tool less, spring loaded, vibration proof terminals
  • General inputs and outputs    6 (configurable)
  • Outputs    12mA as LED drivers
  • Change-over relay (NO+NC+COM)    SELV
  • Power options    PoE or 24 VDC (16 – 48 V)
  • PoE (power over Ethernet)    IEEE 802.3af standard
  • External power supply    24 VDC (16 – 48 V)
  • Power consumtion    Idle 1.8W, max 12W (depending on volume)
  • Audio line out / induction loop signal    0 dBV
  • Call indication    Icons/colors for hearing impaired
  • Door open indication    Icons/colors for hearing impaired
  • Display technology    PMOLED
  • Display contrast    20000:1
  • Viewing angle    160 deg
  • Display brightness    120 cd/m2
  • Display lifetime    50 000 hours/5 years
CONSTRUCTION
  • Dimensions (HxWxD)    180 x 120 x 73 mm / 7.1” x 4.7” x 2.9”
  • Dimensions after flush mount    180 x 120 x 24 mm / 7.1” x 4.7” x 0.9”
  • Dimensions with on wall box    180 x 120 x 86 mm / 7.1” x 4.7” x 3.4”
  • Weight    0.8 kg / 1.8 lbs
  • Faceplate material    3 mm / 0.12” PMMA, colour printed on back side
  • Base / frame material    3 mm / 0.12” Aluminum alloy - A413.0, AlSi12Fe, painted
  • Electronics cover material    Polycarbonate (translucent)
  • Gasket material    Silicone rubber
  • Fastening bracket material    SECC Steel
  • Button material    3 mm / 0.12” Polycarbonate (transparent)
  • Button travel length    1.25 mm
  • Button activation force    350 gf
  • Button push-cycles before failure    300 000
  • Loudspeaker poke protection, large diameter object    3D cast aluminum speaker grille
  • Loudspeaker poke protection, small diameter objects    Stainless steel mesh, acoustically transparent
NETWORKING AND PROTOCOLS
  • Protocols    IPv4 (with DiffServ), SIP, TCP, UDP, HTTPS, TFTP, RTP, RTSP, RTCP, SRTP, DHCP, SNMP, Vingtor-Stentofon CCoIP®, NTP, ONVIF, WS-Discovery
  • LAN protocols    Power over Ethernet (IEEE 802.3 a-f), Network Access Control (IEEE 802.1x)
  • Management and operation    HTTP/HTTPS (Web administration and configuration) DHCP and static IP. Remote automatic software upgrade. Centralized monitoring.
  • Advanced supervision functions    E.g. network test, tone test, status reports, uptime, button status.
  • SIP support    RFC 3261 (SIP base standard) RFC 3515 (SIP refer) RFC 2976 (SIP info), SIP using TLS, RFC 5630 SIPS URI scheme
  • DTMF support    RFC 2833, RFC 2976 (SIP info)
  • Integration and API    Connected to ICX-AlphaCom through AlphaCom protocol ACDP
  • Connected to Zenitel Connect Pro though Zenitel Link
  • ONVIF
  • Scripting
ENVIRONMENT AND COMPLIANCES
  • IP rating    IP-66 (applies when mounted in TA-1 back-box)
  • IK rating    IK 08
  • Operating temperature range    -40° to 70° C
  • Storage temperature range    -40° to 70° C
  • Realtive humidity    < 95% not condensing
  • Corrosion    Salty mist, tested according to EN60945
  • Vibration    Tested according to EN60945
  • UV-resistant    YES
  • EMC    CE and FCC Part 15 EN 50121-3-2 Railway application EN 50121-4 Railway application UN Regulation 10, revision 4 + Corr.1 + Amend.1
  • Compliances    IEC/EN 60945 Marine Equipment IEC/EN61000-6-1 and IEC/EN61000-6-3 (light industry) IEC/EN 50155 Railway Application * IEC/EN 50486 Equipment for use in audio video door-entry systems * With additional conformal coating Requires use of EN 50155 approved PoE switch
Certifications    UL 60950-1, cUL 60950-1, CB to IEC 60950-1
