Turbine Industrial Extended-6 TFIE-6 Zenitel

Product Code: ZE-TFIE-6

Brand
Zenitel
$4,300.00 inc GST
RRP $4,300.00

Out of Stock
Increase value Decrease value
Quantity In Cart:
Unit of Measure
EACH



2 Year
Technical Specifications
Brands Zenitel
  • Details
  • Downloads
  • Where to Buy
  • Ordering

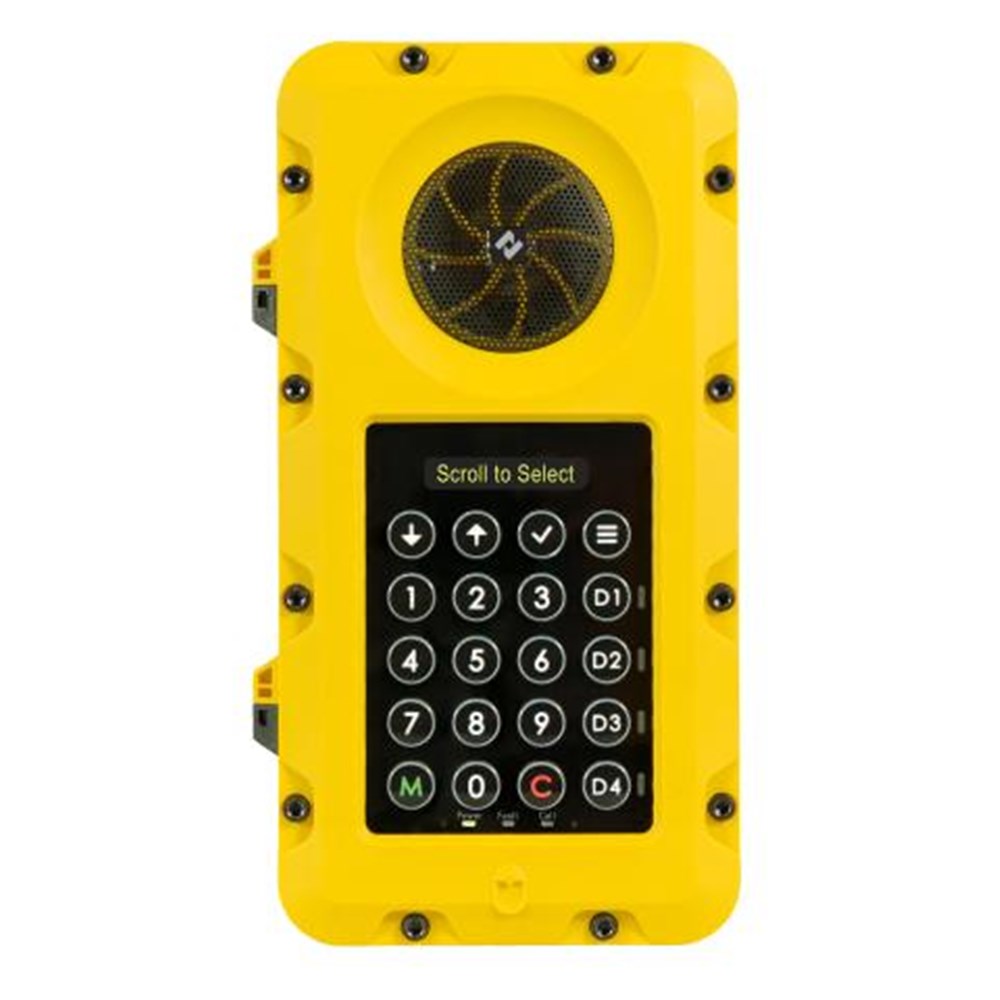

The TFIE-6 IP industrial intercom station is a rugged device, designed for harsh environments and meets  industrial and offshore requirements. The plastic housing is designed to withstand most chemical and environmental hazards found onshore or offshore. The TFIE-6 features a full keypad with four programmable buttons, keys for manual override (PTT) and Cancel, plus display with scrolling unit. The intercom station is fully digital and offers crystal clear audio with high output through a 10 W internal  amplifier and 78 mm speaker, offering up to 100dB SPL.

Active Noise Reduction and Acoustic Echo  Cancelling allows for hands-free two-way communication with superior audio quality. Intercom status indicators display the status of the system and are compatible with AlphaCom and Exigo systems as well as SIP functionality for use with 3rd party systems.

IP and SIP Intercom

  • CCoIP/VoIP intercom for industrial environments
  • Dual Ethernet connectivity for redundant networks
  • ONVIF Compatible
  • PoE powered
  • Auxiliary DC power for redundancy
  • DIP functionality for use with AlphaCom audio servers
  • SIP/VoIP functionality for use with 3rd-party systems
  • Dual relay outputs
  • 6 configurable I/Os
  • Dust- and water-protected to IP 66
  • Accessories include Handheld PTT, Headset with ON/OFF and PTT and Handset with PTT
  • Monitoring and self-diagnostics of critical functionality
  • Visible status indicators on front panel
  • PMOLED display with scrolling unit for calling to unlimited number of places
AUDIO
  • Noise cancelling - suppression of musical noise    YES
  • Noise cancelling - suppression of static noise    YES
  • Noise cancelling - suppression of rapidly changing noise    YES
  • Codecs    G.711, G.722, G.729
  • Frequency range, G.722 Codec    200 Hz – 7000 Hz
  • Audio technology    Modes: Full open duplex, switched open duplex
  • Adaptive jitter filter
  • Local tone generator
  • Audio mixing - 3 channels
  • Sound level detection (scream alarm)
  • Automatic gain control (microphone)
  • Automatic volume adjustment
  • Internal speaker amplifier    10 W class D
  • Automatic Volume Control (AVC)    Undistorted and clear audio
  • Acoustic Echo Cancellation (AEC)    Prevents audio feedback even at high volumes (95dB)
  • 10W Speaker    Matches 10W amp for distortion-free broadcast level sound
MECHANICAL
  • Dimensions    345 x 178 x 101 mm
  • Weight    1.9 kg
  • Mounting    On-wall box (included)
  • Color    Yellow + Black
  • ORDER NUMBER    ORDER NUMBER DESCRIPTION
  • 1008122010    TFIE-1 Full keypad with 1 programmable key
  • 1008122020    TFIE-2 6 labelled programmable keys
  • 1008122060    TFIE-6 Full keypad with display and scrolling unit
ACCESSORIES
  • 1023594100    EGA-1 Button protection (10x) for TFIE/TFIX/EAPII/EAPFX
  • 1023533312    EMMAI-2H Handheld Industrial Microphone, Compact, Waterproof for EAPII/TFIE
  • 1008140100    TA-10 Connection board with relays for TFIE/EAPII
  • 1008140225    TA-22b 10m cable and plugbox w/PTT for Industrial headset (for TFIE)
  • 1008140230    TA-23 Industrial/Marine Handset w/PTT (for TFIE)
  • 1008140250    TA-25 Set of replacement screws (M6) for TFIE/TFIX/EAPII/EAPFX
  • 1008140260    TA-26 Set of cable glands for TFIE/EAPII
  • AK5850HS    A-Kabel TwinCom Headband Headset ATEX
Environmental
  • Operating temperature    -40°C to +70°C (-40°F to +158°F)
  • Storage temperature    -40°C to +70°C (-40°F to +158°F)
  • Operating humidity    10% to 95% RH (non-condensing)
  • Storage humidity    10% to 95% RH (non-condensing)
  • Air pressure    600 hPa to 1200 hPa
  • IP-rating    IP-66 tested acording to IEC/EN 60529
ELECTRICAL
  • Ethernet connector    2 x RJ45
  • Power options    PoE or external power supply
  • PoE (Power over Ethernet)    IEEE 802.3af standard, Class 0 (0.44W to 12.95 W)
  • Auxiliary DC power    24 VDC nom (16 to 48 VDC)
  • Power consumption    2 W (idle) to 12,9 W (max)
  • Built-in switch    Managed, DHCP, Firewall
  • Compatibility    SIP, ICX-AlphaCom, IC-EDGE, G.711, G.722, G.729, HD Voice
  • Handheld Microphone    Microphone (bal), PTT
  • Handset    Microphone (bal), Speaker (bal), + PTT
  • Headset    Microphone (bal), Speaker (bal) + PTT
  • Digital inputs/outputs    6 (configurable input/output/LED-driving)
  • Relay outputs    2 (250VAC/200VDC, 2A, 60W, 10^8 operations)
  • Audio    Line-in, Line-out
  • Aux power    1 (tool-free terminals)
  • Display technology    PMOLED
  • Display contrast    20000:1
  • Viewing angle    160 deg
  • Display brightness    120 cd/m2
  • Display lifetime    100 000 hours (11.5 years)
NETWORKING AND PROTOCOLS
  • Ethernet    10BASE-TX, 100BASE-TX , Auto negotiation, Auto MDIX
  • Protocols    IPv4 (with DiffServ), SIP, TCP, UDP, HTTPS, TFTP, RTP, DHCP, SNMP, ONVIF, CCoIP® , NTP
  • LAN protocols    Power over Ethernet (IEEE 802.3 a-f) Network Access Control (IEEE 802.1x)
  • Management and operation    HTTP/HTTPS (Web configuration) DHCP and static IP + IC-EDGE Remote automatic software upgrade Centralized monitoring
  • Advanced supervision functions    E.g. network test, tone test, status reports
  • SIP support    RFC 3261 (SIP base standard)
  • RFC 3515 (SIP refer)
  • RFC 2976 (SIP info)
  • DTMF support    RFC 2833, 2976 (SIP info)
CERTIFICATIONS
  • Immunity    EN 60945, EN 50130-4, EN 61000-6-1, EN 61000-6-2, FCC-47 part 15B
  • Emission    EN 60945, EN 50130-4, EN 61000-6-3, EN 61000-6-4, FCC-47 part 15B
Other specifications
  • Warranty    2 Years standard warranty, extendible up to total of 5 years (additional fee)
