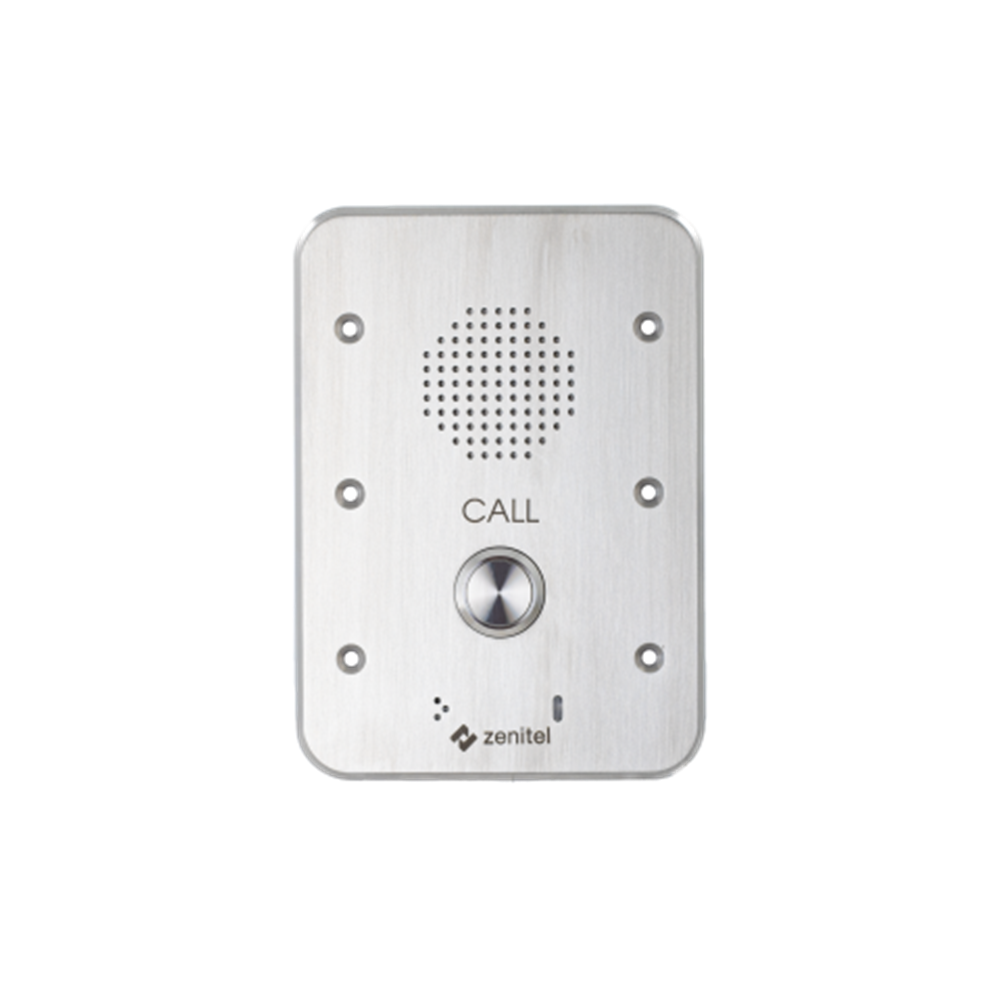

Vandal resistant station VR3G-1 Zenitel

Product Code: ZE-VR3G-1

Brand
Zenitel
$2,700.00 inc GST
RRP $2,700.00

Out of Stock
Increase value Decrease value
Quantity In Cart:
Unit of Measure
EACH



2 Year
Technical Specifications
Brands Zenitel
  • Details
  • Downloads
  • Where to Buy
  • Ordering

The Vandal Resistant Intercom Station VR3G-1 utilizes the latest technology to create unparalleled audio quality. Some of the many features include: HD voice quality, Open Duplex, Active Noise Cancellation, and an Electret Omni Directional microphone. These features, in conjunction with the company's 70+ years of experience with acoustic technology, are just a few of the many factors that contribute to our superior audio quality.

Vandal Resistant, 3 gang, 1 button IP and SIP Intercom

  • Powerful audio technology, including high sound pressure, automatic gain control, and active noise echo canceling
  • Vandal Resistant Design with IK10
  • IP66 - Dirt, dust and water resistant
  • Tamper switch
  • Anti-ligature design
  • Cybersecurity compliant
  • Can operate in SIP, IC-EDGE, and ICX-AlphaCom mode
Audio
  • Noise cancelling    Yes. Suppression of musical noise, suppression of static noise, suppression of rapidly changing noice
  • Codecs    G.711, G.722, G.729
  • Frequency range, G.722 Codec    200 Hz – 7000 Hz
  • Audio technology    Modes: Full open duplex, switched open duplex, Adaptive jitter filter, Local tone generator, Audio mixing - 3 channels, Sound level detection (scream alarm), Automatic gain control (microphone), Automatic volume adjustment
  • Internal speaker    3 W
  • Microphone technology    Electret Omni Directional microphone
  • Automatic Volume Control (AVC)    Yes
  • Acustic Echo Cancellation (AEC)    Yes
  • SPL peak power at 1m    80 dBA
  • Voice signal at 1m    68 dBA
Hardware
  • Ethernet connector    1 x RJ-45
  • All other connectors    Tool less, spring loaded, vibration proof terminals
  • General inputs and outputs    6 (configurable)
  • Outputs    12mA as LED drivers
  • SELV (Safety Extra Low Voltage)    2A, 60W
  • Power options    PoE and/or external power supply
  • PoE (Power over Ethernet)    IEEE 802.3af standard, Class 0 (0.44W to 12.95 W)
  • Power consumption    Idle 1.8W, max 12W (depending on volume)
  • External power supply    24 - 48 VDC (24 – 48 V)
  • Audio line out / induction loop signal    600 Ohm
Construction
  • Dimensions (HxWxD)    160x114x60mm
  • Dimensions after flush mount    160x114x5mm
  • Weight    0.726
  • Faceplate material    A4 steel
  • Electronics cover material    Polycarbonate (translucent)
  • Gasket material    low density soft EPDM-foam (closed cell), t:2mm.
  • Button material    A4 steel
  • Button travel length    3mm
Networking & Protocols
  • Protocols    IPv4 (with DiffServ), SIP, TCP, UDP, HTTPS, TFTP, RTP, DHCP, SNMP, ONVIF, CCoIP® , NTP
  • LAN protocols    Power over Ethernet (IEEE 802.3 a-f) Network Access Control (IEEE 802.1x)
  • Management and operation    HTTP/HTTPS (Web configuration) DHCP and static IP + IC-EDGE. Remote automatic software upgrade. Centralized monitoring
  • Advanced supervision functions    E.g. network test, tone test, status reports
  • SIP support    RFC 3261 (SIP base standard), RFC 3515 (SIP refer), RFC 2976 (SIP info)
  • DTMF support    RFC 2833, 2976 (SIP info)
  • Environmental
  • IP rating    66
  • IK rating    10
  • Operating temperature range    -40° to 70° C / -40° to 158 ° F
  • Relative humidity    < 95% not condensing
Other Specifications
  • IP address information    Speaks IP address after system boot
  • Poke protection, small/large diameter objects    Ø1.8mm
  • Country of manufacture    Poland
  • Warranty    2 Years standard warranty, extendible up to total of 5 years (additional fee)
