Spectacular image quality, low maintenance and ultimate reliability
The ZU1300 offers enhanced features such as built-in edge-blending and warping. Part of the DuraCore laser lineup, it combines a longer-lifetime light source and an independent IP-rated dust certification for ultimate peace of mind.
Delivering up to an astonishing 30,000 hours laser light source, this projector achieves superior colour rendition producing visually striking lifelike images with exceptional detail.
Designed for even the most complex professional installations, the ZU1300 offers seven interchangeable lens options including an ultra short throw lens and single-projector dome lens for ultimate flexibility.
For large-scale projection or stacking, the ZU1300 features built-in edge-blending and warping and offers portrait and 360-degree orientation support. Additionally, an HDBaseT™ input is included to simplify cabling requirements and reduce installation complexity, saving time and reducing costs.
Features:
High brightness WUXGA DLP laser projector
14,400 lumens
DuraCore laser technology
Up to 30,000 hours laser light source
Dust resistant
Independently tested, IP6X certified for total reliability
Installation flexibility
7 interchangeable lens options including an ultra short throw lens
DuraCore
Industry leading lifetime is achieved using Optoma’s DuraCore technology. Implementing advanced laser diode cooling techniques and an innovative dust resistant design.
Wired remote
The wired remote connection allows all aspects of the projector to be individually controlled without requiring a line-of-sight to the projector; invaluable when using multiple units during live events.
IP6X Airtight optical engine
Independently tested and certified to IEC standard 60529 with an IP6X dust resistance rating. Outstanding dust resistance combined with exceptional brightness ensures industry leading durability; paramount for 24/7 maintenance free operation in challenging environments.
3G-SDI
Full 3G-SDI (Serial Digital Interface) receiving uncompressed, unencrypted digital video signals at a data rate of 2.97Gbit/s.
Full 3D
Optoma projectors can display true 3D content from almost any 3D source, including 3D compatible graphics cards, 3D broadcasting and the latest generation 3d media servers.
HDBaseT™
Uncompromising, uncompressed Full HD video, audio, network and control commands all delivered on a single CAT- type cable capable up to 100 meters/328 feet without signal loss makes installation hassle-free. HDBaseT™ simplifies cabling requirements and reduces installation complexity saving both time and reducing costs.
Full lens shift
Simplify installation with full lens shift, which provides a wider range of projector placement possibilities. This makes it easier to position the projector in your room and enables a wider range of screen size options.
Telnet
This model is able to receive comands via telenet allowing for easy installation with Telnet compatible control systems.
PJLink
PJLink protocol is incorporated into the projector allowing for easy installation with PJLink compatible control systems.
360 projection*
Images can be projected over a 360° rangealong the projector’s horizontal axis. *For more information please refer to the user manual
Integrated warping and edge blending processor
Integrated warping and edge blending processor enables multiple projectors to be warped and blended without additional dedicated hardware, reducing the cost & complexity of installation. Warping and edge blending is configured using either the projectors on screen display or with PC software depending on model. Compatible multi output graphics card with overlap function is required.*
Constant power
Allows users to set the power levels to meet individual installation requirements. Power levels can be managed to obtain the brightest picture or longest light source life - or anywhere inbetween
Constant brightness
Advanced light sensing technology allows the setting of brightness levels that will remain unchanged over time. Ideal for ensuruing constant brightness for fine tune installations
Amazing colour
Optoma projectors provide reliable colour performance suitable for any content and environment. From accurate sRGB colours for lifelike images to vibrant punchy presentations. We have a display mode to specific meet your needs. Perfect for a range of graphic and video presentations.
Redundant input with fast switching
The unique signal input detection function provides instant source switching in the event of the failure of the signal source device. This feature ensures an image never fails to display in mission critical installations such as control rooms, live events or other similar scenarios.
Extreme Black
Extreme black enables the laser diodes to completly turn off when a full black image frame is detected. This feature is perfect for situations where a total image blackout is required.
LAN Control
The RJ45 port provides additional network controllability. Crestron RoomView, Extron’s IP Link, AMX dynamic device discovery and PJ-Link protocols are fully supported, allowing for any flexible networking solution.
Specification
Display/image
- Display technology - DLP
- Resolution - WUXGA (1920x1200)
- Brightness - 14,400 lumens
- ANSI brightness - 12,000
- Contrast ratio - 2,000,000:1
- Native aspect ratio - 16:10
- Aspect ratio - compatible - 16:9,16:10
- Screen size - Dependent on lens
Lamp info
- Light source type - DuraCore Laser
- LASER life - 30,000 hours
Optical
- Throw ratio - Dependent on lens
- Projection distance - Dependent on lens
- Lens options - BX-CTA16 - 0.36 ~ 0.36BX-CTA17 - 0.65~0.75BX-CTA15 - 0.75 ~ 0.95BX-CTA01 - 0.95 ~ 1.22BX-CTA06 - 1.22 ~ 1.53BX-CTA03 - 1.52 ~ 2.92BX-CTA13 - 2.90 ~ 5.50
Connectivity

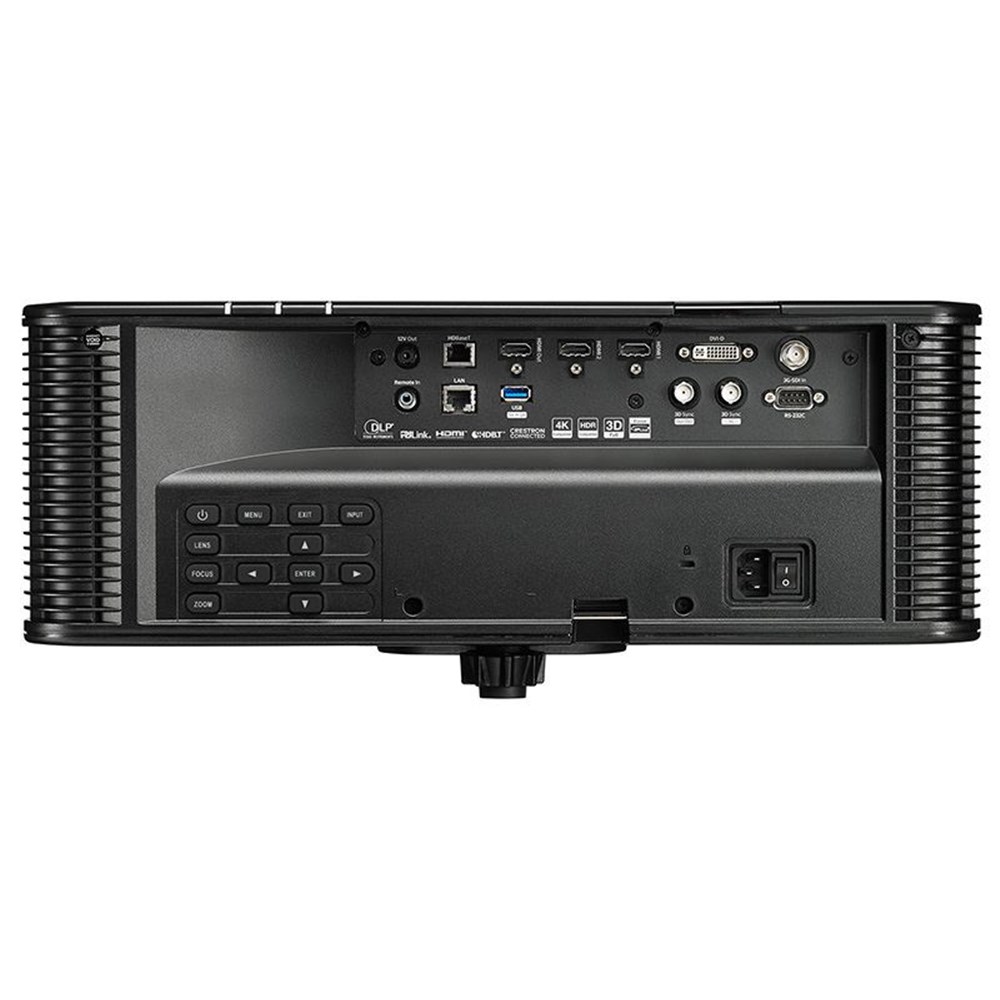

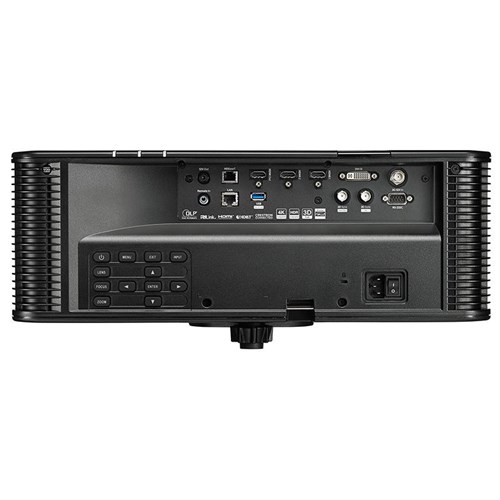

- Connections - Inputs 2 x HDMI 2.0, 1 x DVI-D, 1 x 3G-SDI, 1 x 3D sync, 1 x HDBaseTOutputs 1 x HDMI, 1 x 3D sync, 1 x USB-A power 2AControl 1 x RS232, 1 x RJ45, 1 x 12V trigger, 1 x Wired remote
- LAN - wireless networking - No
General
- Noise level (min) - 36dB
- Noise level (max) - 38dB
- PC compatibility - HD, UXGA, WXGA, SXGA+, SXGA, XGA, SVGA, VGA Resized, VESA, PC and Macintosh Compatible
- 2D compatibility - PAL (625/576i/p), SECAM, NTSC (525/480i/p), HDTV (720p, 1080i/1080p)
- 3D compatibility - Side-by-Side : 1080i 50/60, 720p 50/60 ; Frame-pack : 1080p 24 , 720p 50/60 ; Over-Under : 1080p 24, 720p 50/60
- 3D -Full 3D
- Security - Security bar, Kensington Lock
- IP rating - IP6X
- 24/7 operation - Yes
- 360° operation - Yes
- Operating conditions - 5°C~40°C/41°F~104°F, max altitude M/0ft, max humidity 10-85%

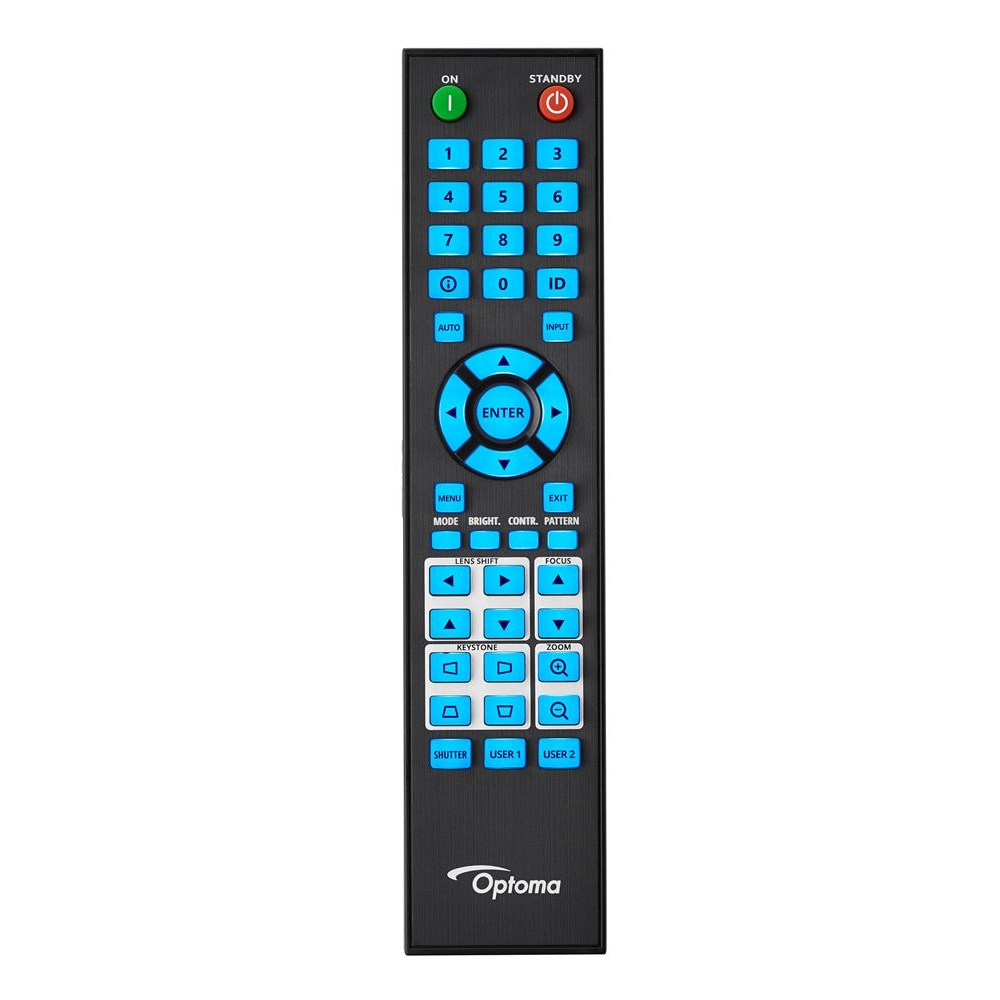

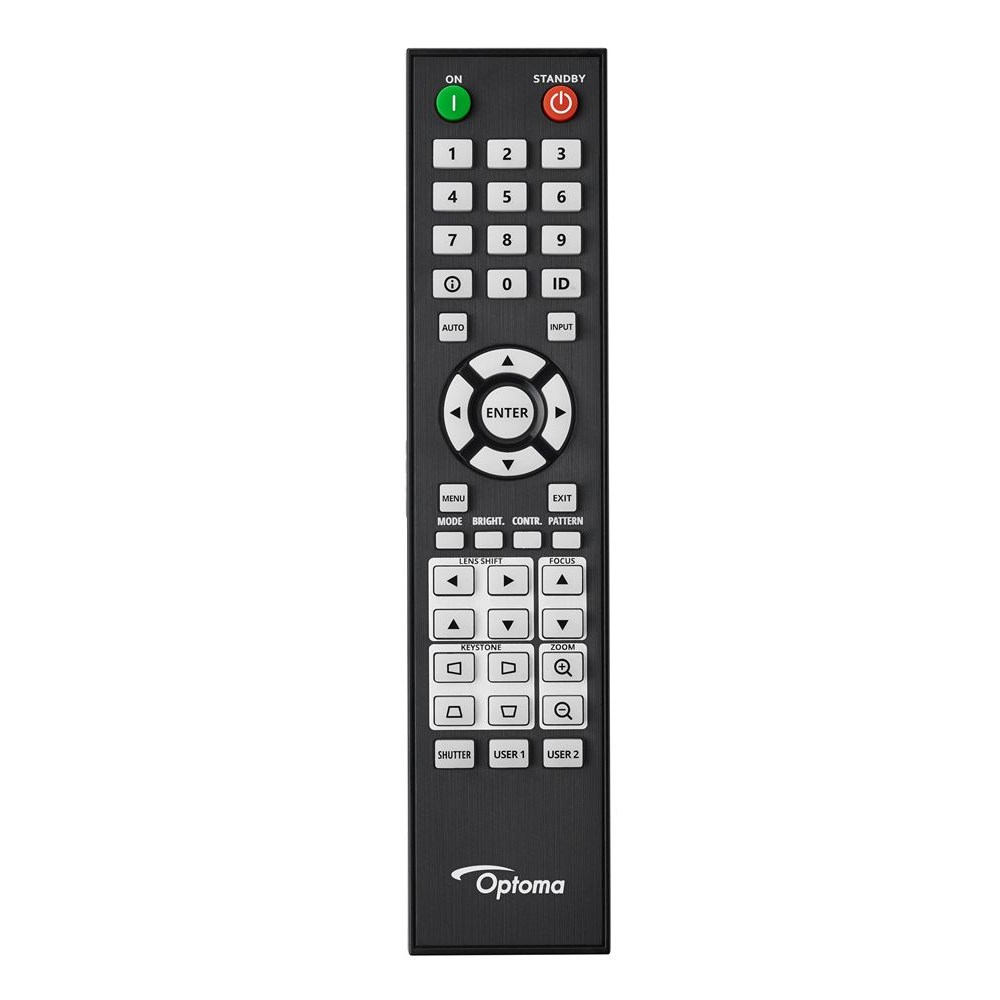

- Remote control - Backlit ProAV remote
Networking
- LAN - control - Yes
LAN - display - Yes
LAN - wireless networking - No
LAN - Yes
Power
- Power supply - 100 - 240V, 50 - 60Hz
- Power consumption (standby) - 0.5WW
- Power consumption (min) - 465W
- Power consumption (max) - 955W
Weight and dimensions
- Dimensions (W x D x H) - 484 x 529 x 195
- Gross weight - 27 kg
- Net weight - 21 kg
